Multipurpose Camera Aiming: Adjustment

NOTE:

The multipurpose camera unit must be re-aimed if the multipurpose camera unit or windshield is removed or replaced. The LKAS and ACC indicators (amber) will blink if the aiming process is not completed correctly.
If DTCs are indicated, do the indicated DTC troubleshooting first. If the DTCs are not repaired, you cannot complete the multipurpose camera aiming procedure. However, if you have the following DTCs, proceed with the aiming procedure.
- Dynamic Camera Aiming Incomplete: DTC B2A60-52
- Static Camera Aiming Incomplete: DTC B2A60-54

If the vehicle you are aiming was involved in a collision or if you suspect the alignment is out of specifications, you must perform a wheel alignment prior to aiming the multipurpose camera unit.

Conditions for the aiming environment:
- Aiming should be done on a flat place.
- Amount of space require in front of the vehicle:
  * 7 m (23 ft) measured from the front bumper

  * 4 m (13 ft) in width

  * 1.5 m (4.9 ft) in height, measured from the floor
- Make sure the vehicle is not facing any direct light source as this will affect the static camera aiming.
- Make sure there are no black and white checkered or dark and light alternating patterns directly behind the targets as this will affect the static camera aiming.

Set up the vehicle:
- Aiming requires the HDS.
- Do not put any objects on the dashboard.
- Remove all cargo from the vehicle except the tool kit and the spare tire.
- Make sure that there are no stains, dust or dirt on the lens of the multipurpose camera unit, and the windshield area where the camera is mounted.
- Make sure that all doors are closed.
- Make sure the suspension has not been modified.
- Make sure all the tire sizes are correct and that their pressure is correct.
- Make sure the fuel tank is full.
- Make sure the steering wheel is pointed straight ahead, and do not turn it after setting the vehicle.
- Shift the shift lever to P position/mode, and apply the parking brake.

When marking on the floor surface, use suitable tape to mark the exact locations.

Prepare these items:
- HDS
- Tape measure and ruler
- Felt-tip pen
- Tape
- String

Before Aiming - Set

Multipurpose Camera - Static Camera Aim

Courtesy of HONDA, U.S.A., INC.

Marking of the Center Target Position

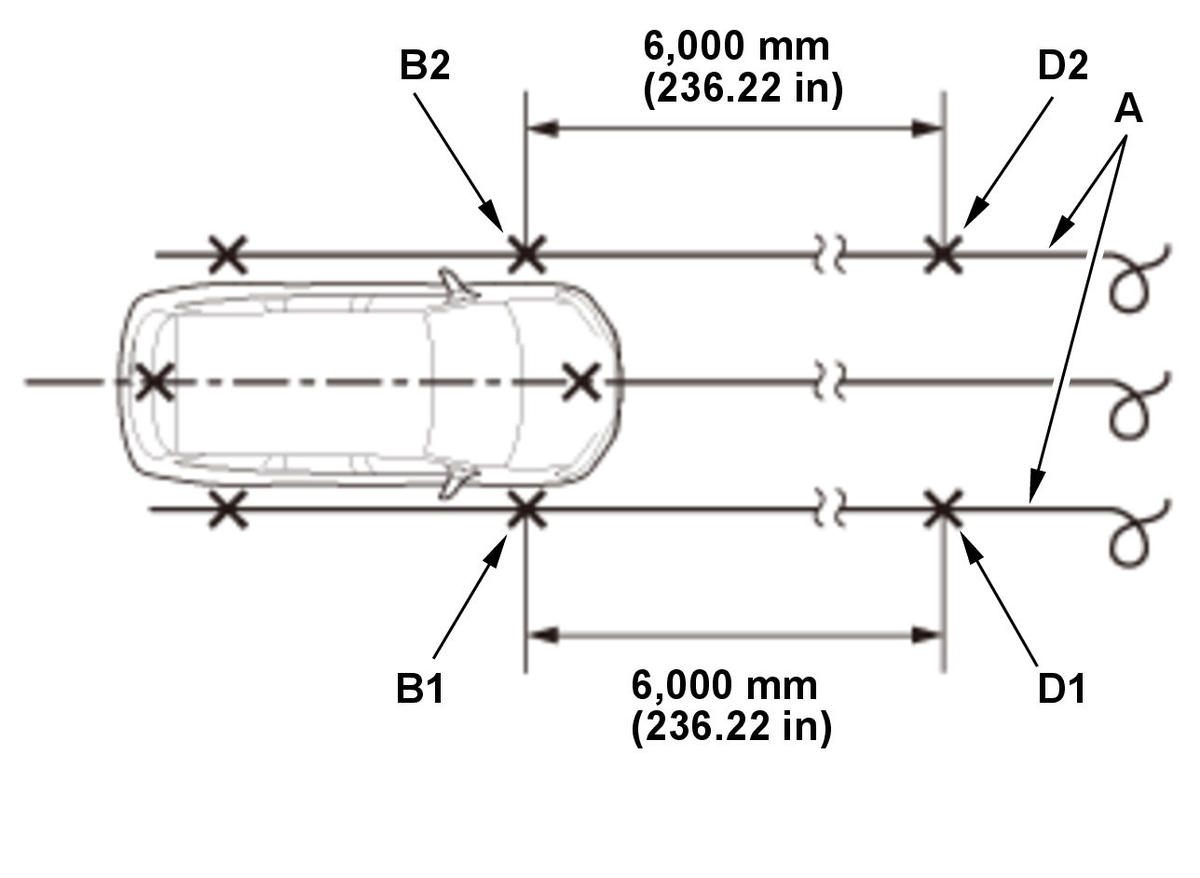

1. Pull the string (A) forward 6, 000 mm (236.22 in) from point B1, then mark a new point D1. Repeat this step for the opposite front wheel, and mark a point D2 on the floor.

Courtesy of HONDA, U.S.A., INC.

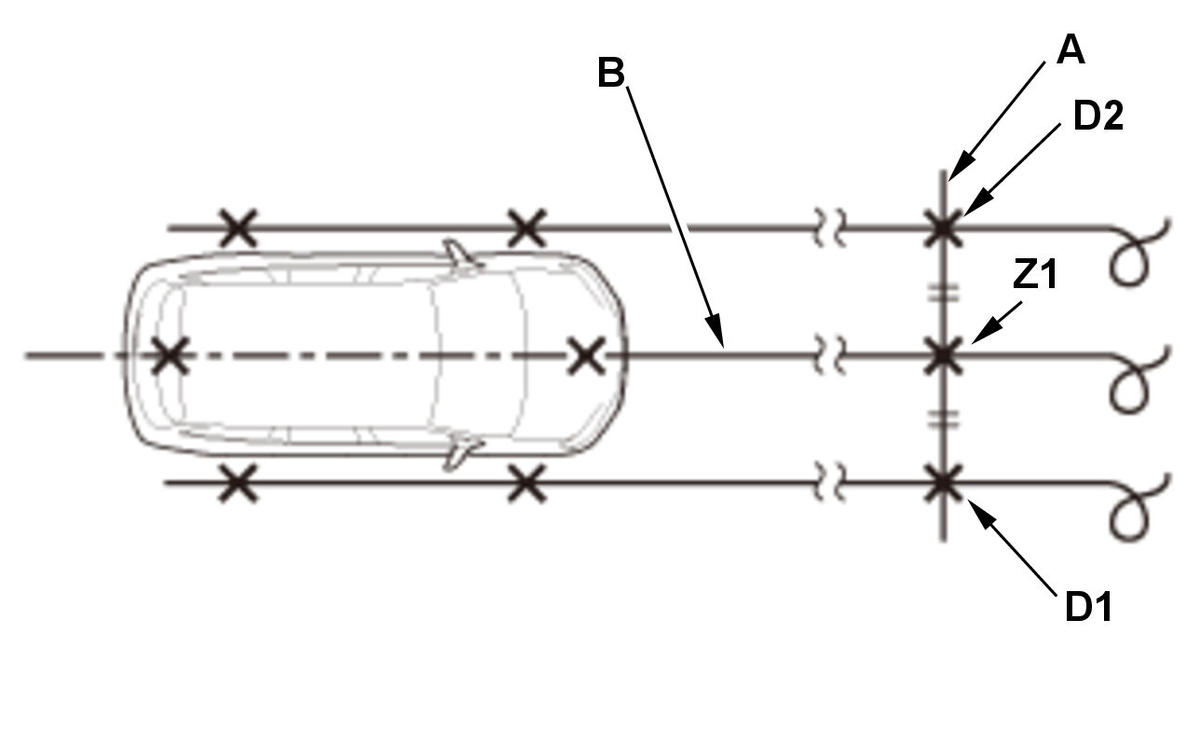

2. Stretch a string (A) between point D1 and point D2, and tape both ends of the string on the floor. Mark a new point Z1 where the string crosses with the center line (B).

Special Tools Set-Up, Target Pattern Surface Height Adjustment, and Positioning:

3. Set-up the target.

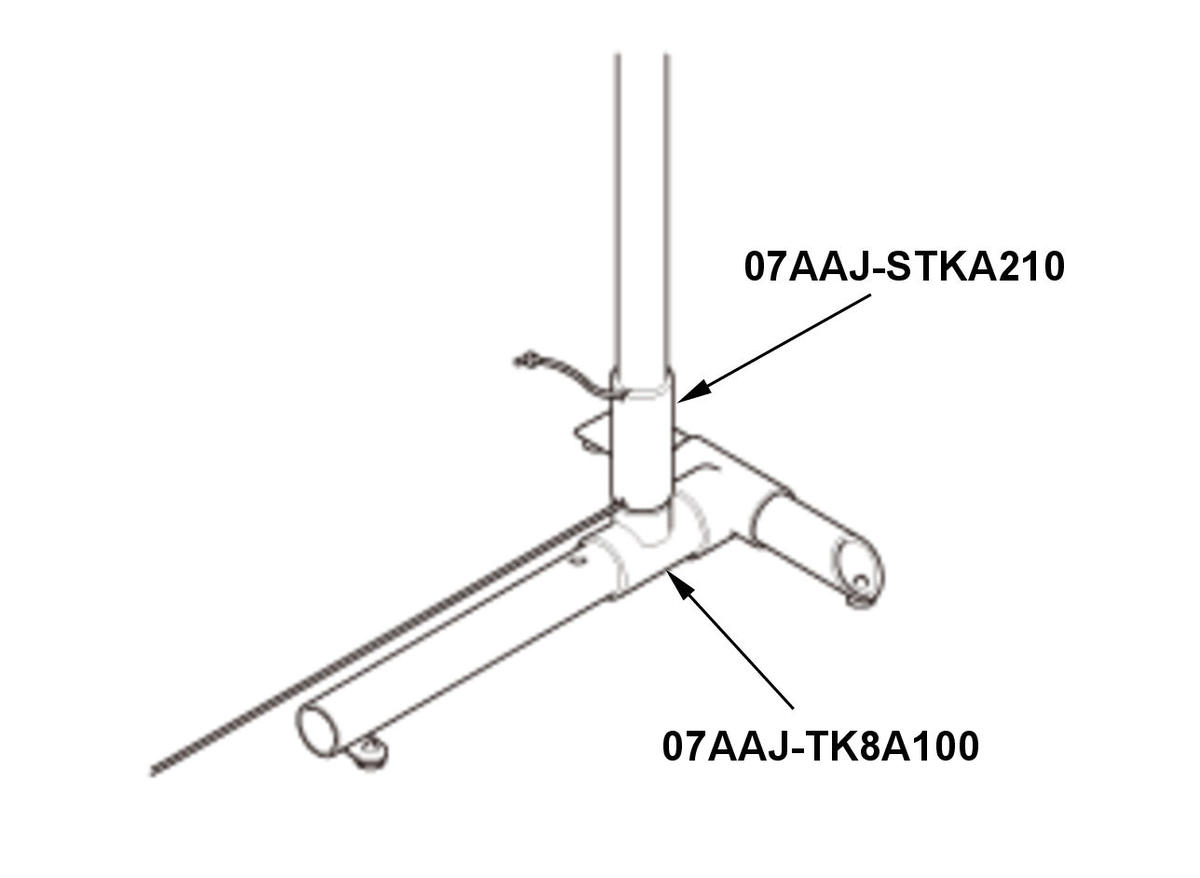

- 1. Install the stand pole (A) onto the stand (B).

NOTE: The PVC stand pole is too low to align the multipurpose camera. You must use stand pole 07AAK-5K0A120.

- 2. Route the cord through the collar and place it on the aiming stand.

Courtesy of HONDA, U.S.A., INC.

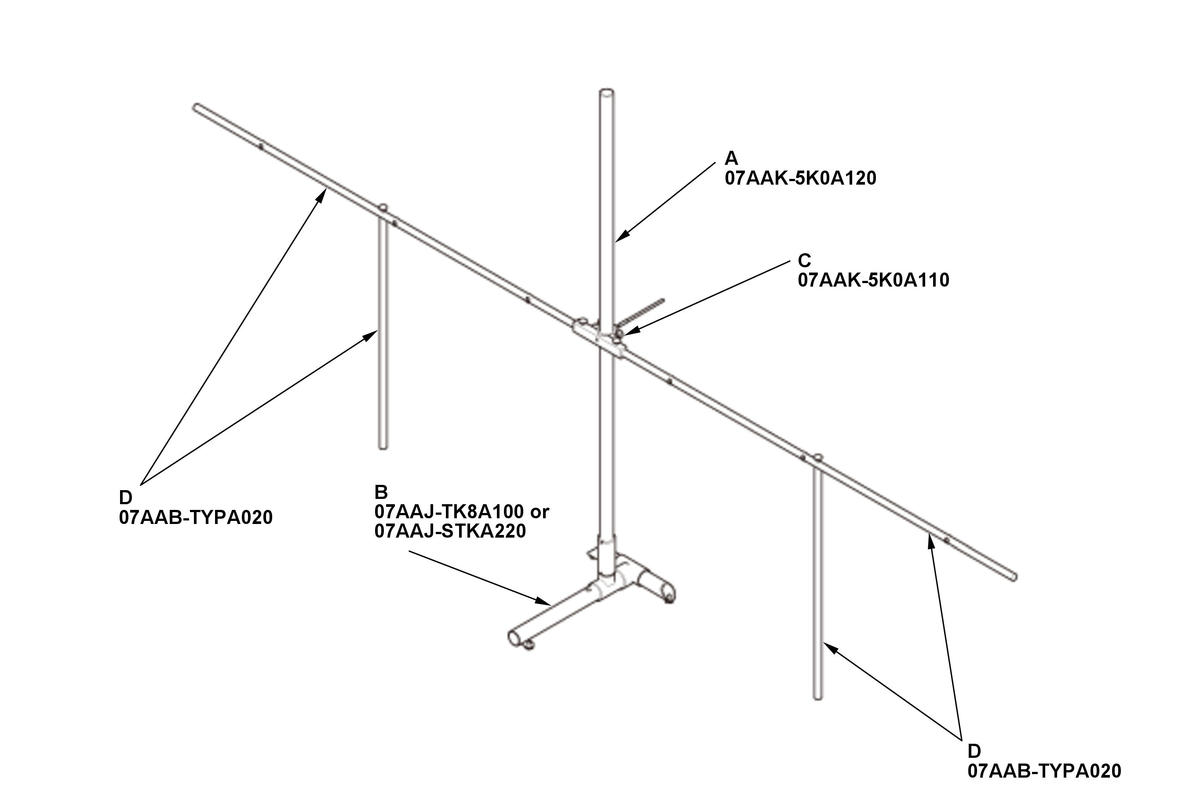

- 3. Install the attachment bracket (C) onto the stand pole.

- 4. Assemble the target holders (D).

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

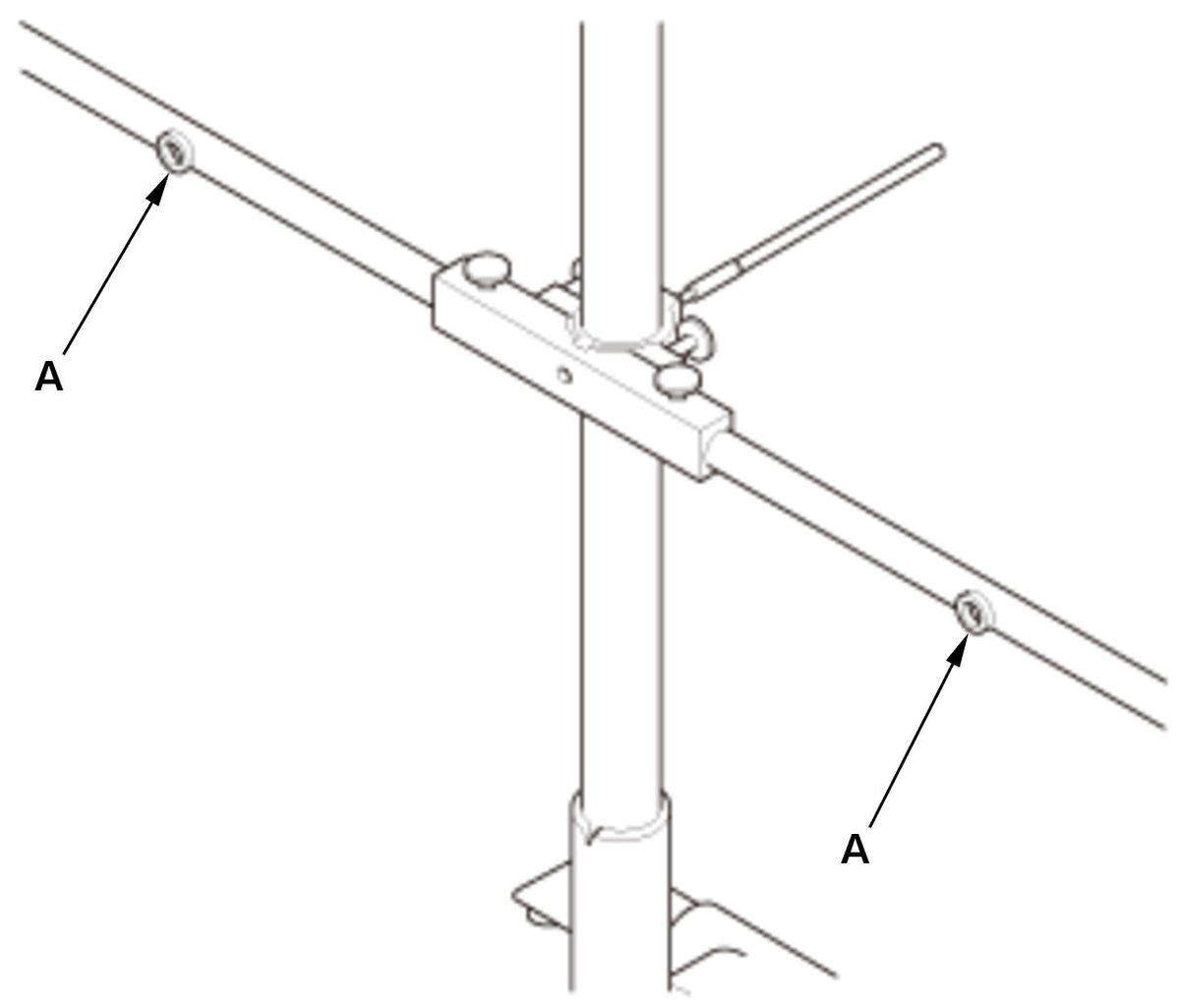

4. Install the target holder assemblies onto the attachment bracket (one on each side), with the target mounting holes (A) facing toward the vehicle.

NOTE: Make sure the horizontal poles are fully seated against the attachment bracket.

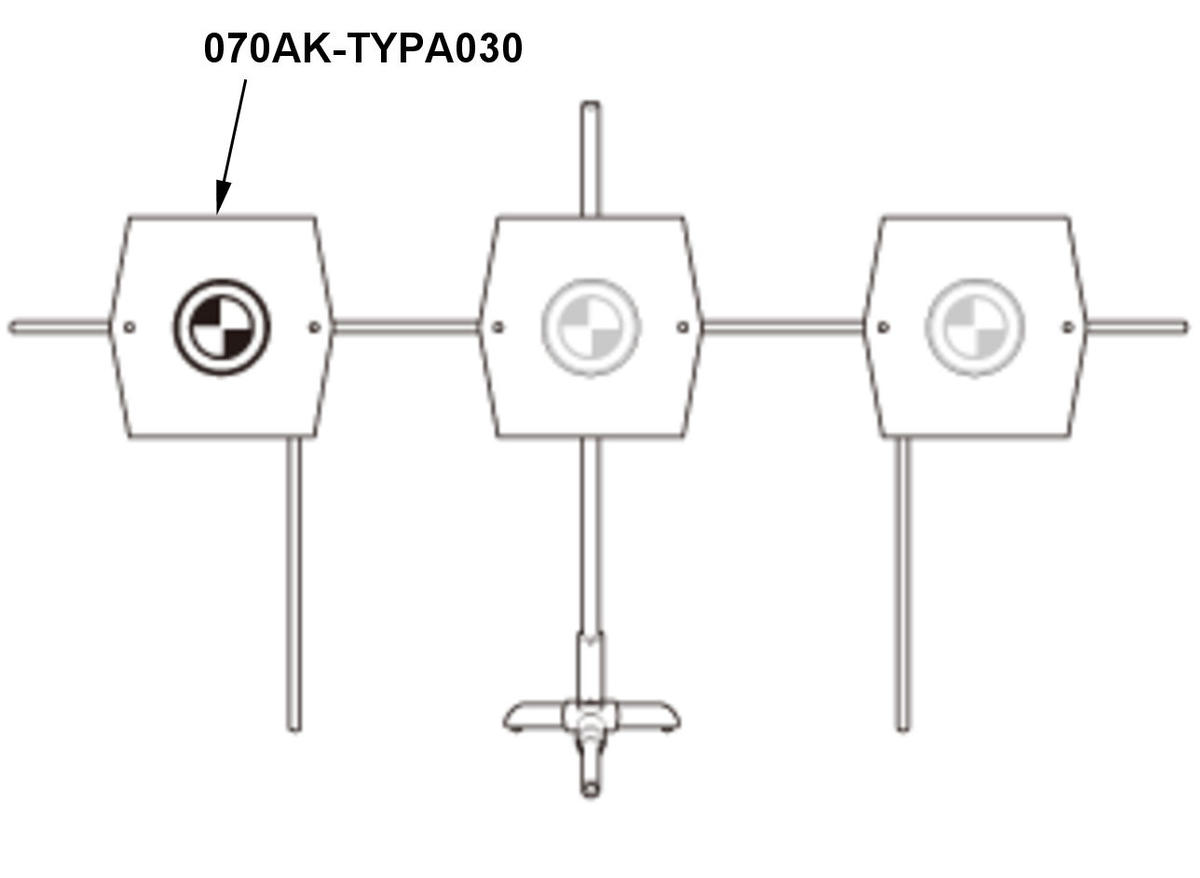

5. Install the targets onto the horizontal poles.

Courtesy of HONDA, U.S.A., INC.

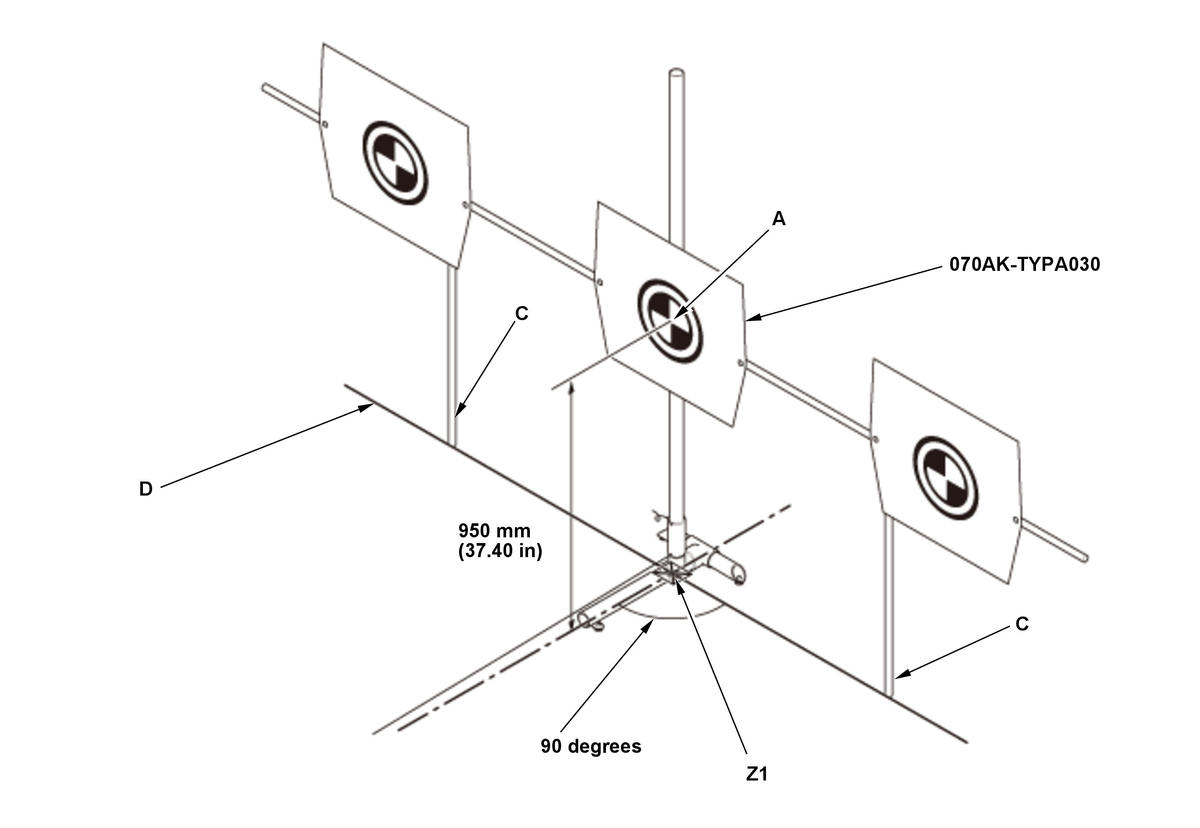

6. Check the height (950 mm (37.40 in)) of all three targets at the center mark (A). The center target should be the same height as the outer targets. If necessary, adjust the center target by moving the target adjuster up or down on the stand pole to match the heights of the outer targets.

7. Place the aiming target assembly on the mark (Z1).

NOTE:

Make sure the target vertical poles (C) on the line (D).

Choose the Setting Value of the Multipurpose Camera Height:

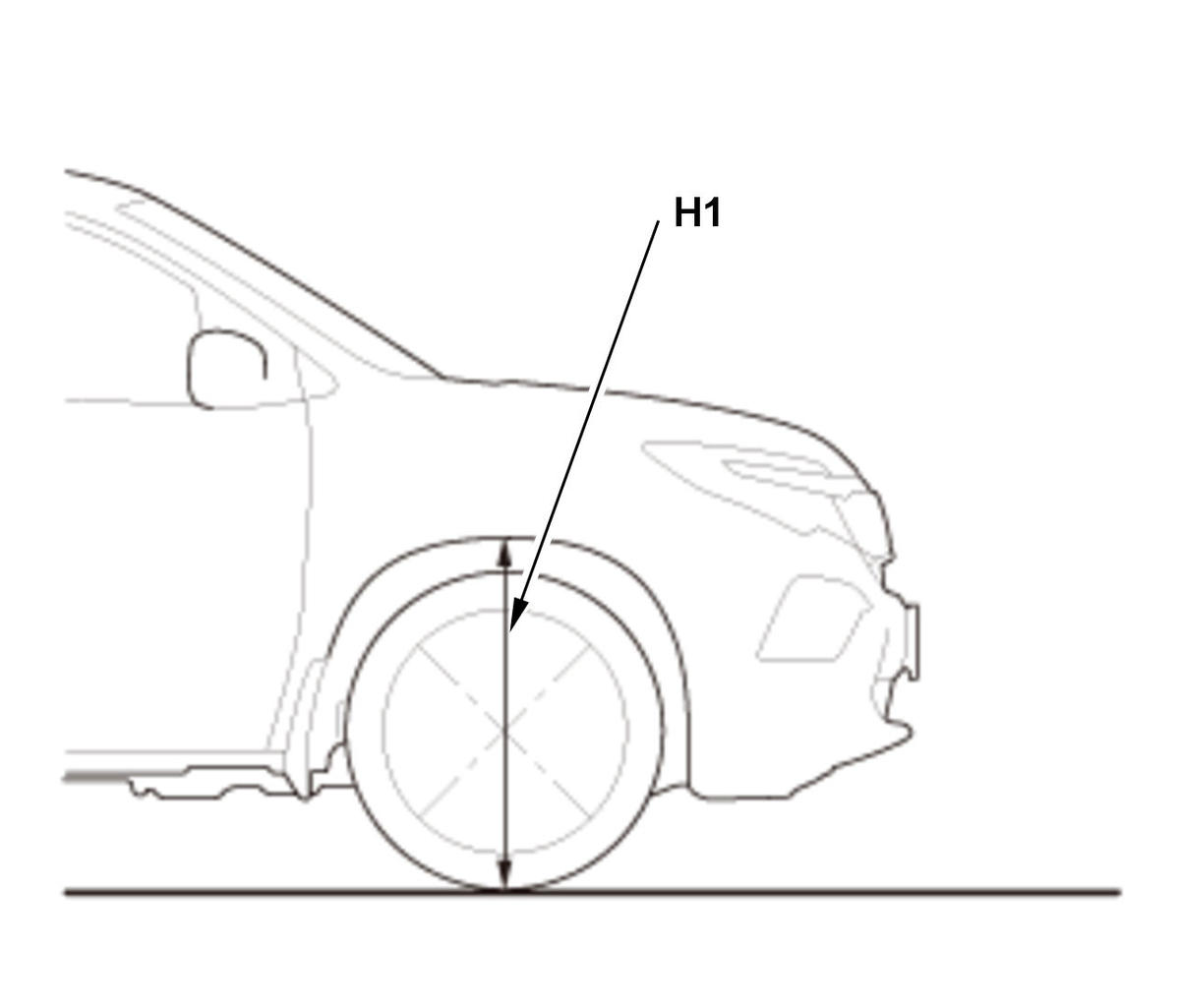

8. Measure the right and left front wheel arch height "H1" from the ground to the center of the wheel arch.

Courtesy of HONDA, U.S.A., INC.

9. Calculate the average value between the left and right wheel arch height "H1". This average is referenced as "H2".

Example

Left wheel arch height: 794 mm (31.26 in)

Right wheel arch height: 814 mm (32.04 in)

H2 = (794 + 814) / 2 = 804 mm (31.65 in)

10. Subtract the front wheel arch height standard value "H3" from the average value of "H2". This calculation is referenced as "H".

Wheel arch height standard value "H3"

814 mm (32.04 in)

Example H = 804 - 814 = -10 mm (0.39 in)

11. Refer to the following table to determine the difference "H" between the mean height of the front wheel arch "H2" and the standard height "H3".

Setting value number	Choose the value "H" from following ranges
(1)	+5 mm (0.20 in) <= H <= +15 mm (0.59 in).
(2)	-5 mm (0.20 in) <= H < +5 mm (0.20 in).
(3)	-15 mm (0.59 in) <= H < -5 mm (0.20 in).
(4)	-25 mm (0.98 in) <= H < -15 mm (0.59 in).
(5)	-35 mm (1.38 in) <= H < -25 mm (0.98 in).

Example

H =-10 mm (0.39 in)

The setting value number which corresponds to the numerical value is (3).

NOTE:

Use this setting value number when choosing the front wheel arch height in the HDS.

If the measured value exceeds +15.0 mm (0.591 in) or less than - 35 mm (1.378 in), the multipurpose camera aiming will not work. Check for frame/suspension damage or modification.

Courtesy of HONDA, U.S.A., INC.

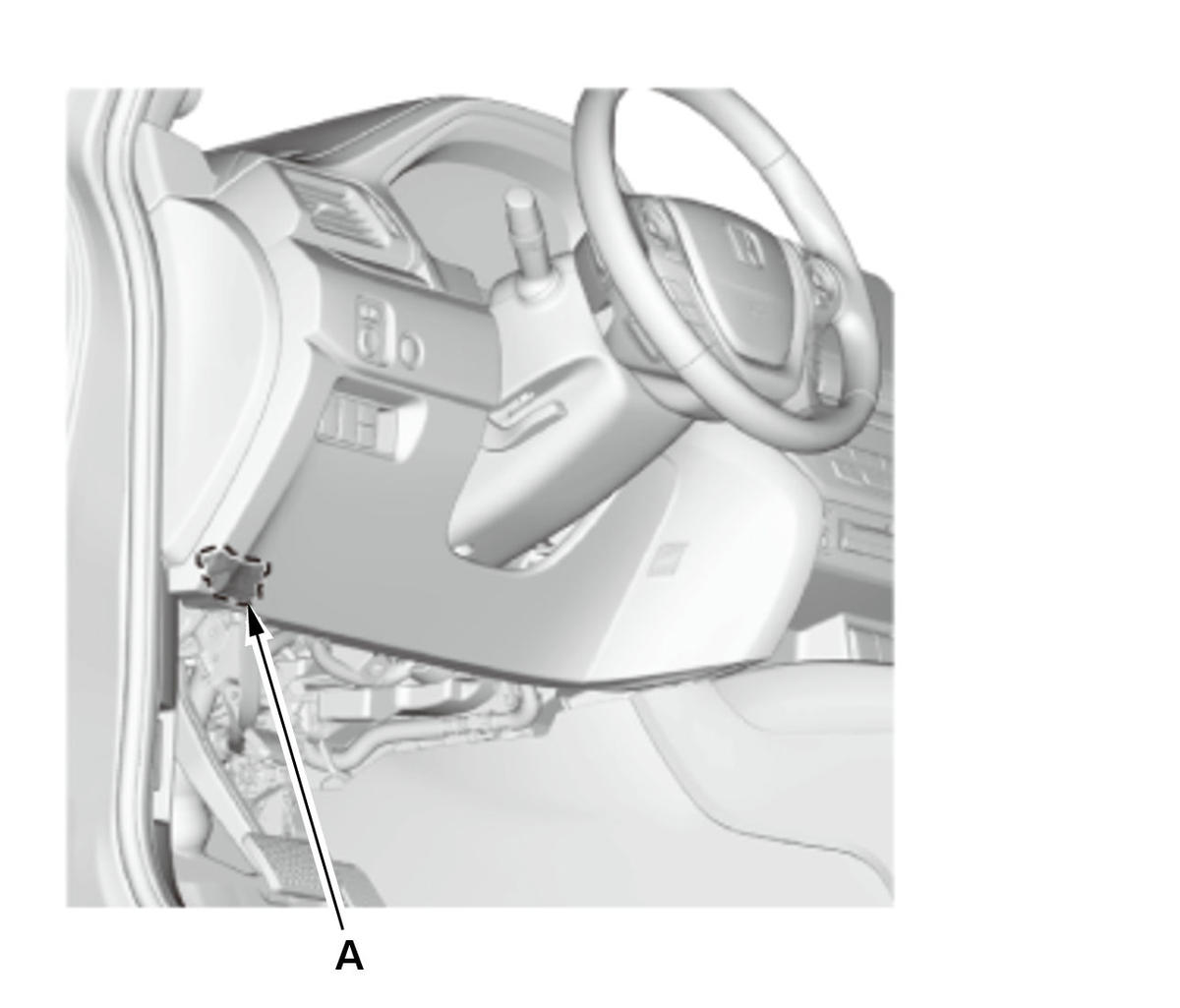

12. Connect the HDS.

13. Turn the vehicle to the ON mode, and turn the headlights off.

14. Make sure the HDS communicates with the vehicle and the multipurpose camera unit. If it does not communicate, go to the DLC Circuit Troubleshooting .

Implementation of the Static Camera Aiming:

15. In the DRIVING SUPPORT menu, select INTEGRATED DRIVER SUPPORT SYSTEM, then ADJUSTMENT, then select STATIC CAMERA AIMING on the HDS. After the caution screen, the ACC, LKAS and RDM indicators will blink along with CAM displayed on the MID.

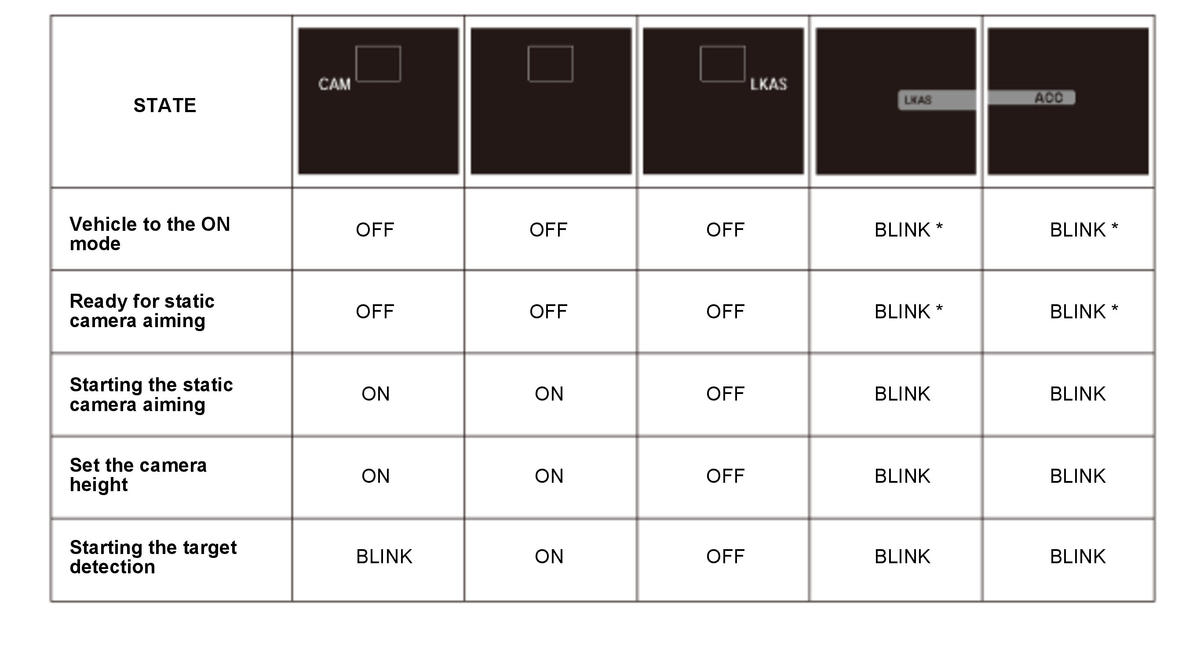

NOTE: The static camera aiming status can be confirmed indicator on the MID.

Courtesy of HONDA, U.S.A., INC.

*: The indicator turns off under the condition that the multipurpose camera aiming is completed.

Courtesy of HONDA, U.S.A., INC.

16. Set the front wheel arch height on the HDS.

NOTE: Use the "Setting value number" which was recorded.

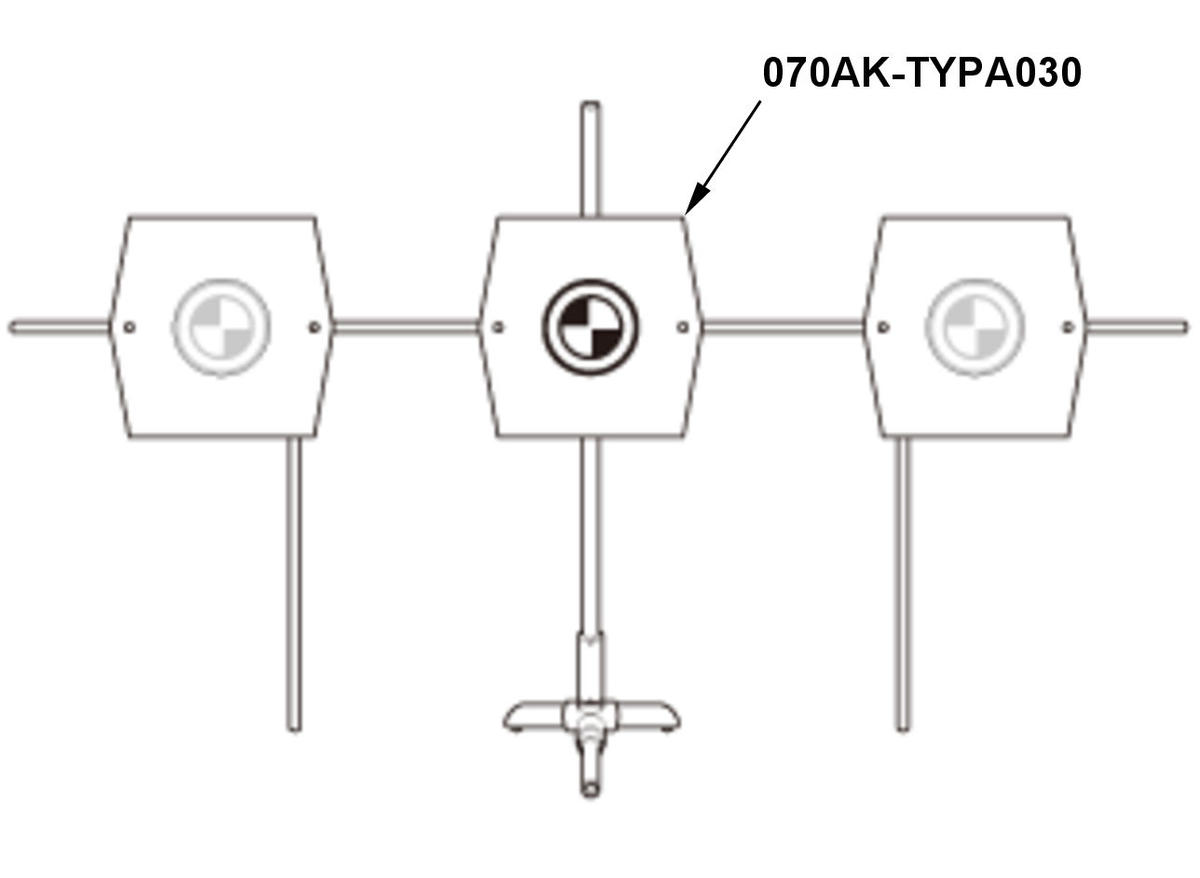

17. Select "Target Middle" from the HDS. The CAM indicator on the MID begins to blink when issuing instructions.

NOTE:

The CAM indicator stops blinking and turns off when the aiming is completed. When the aiming fails, it turns on.
If the aiming has failed or is aborted, you must start the static camera aiming procedure again.

18. Confirm the "Target Middle is completed".

Courtesy of HONDA, U.S.A., INC.

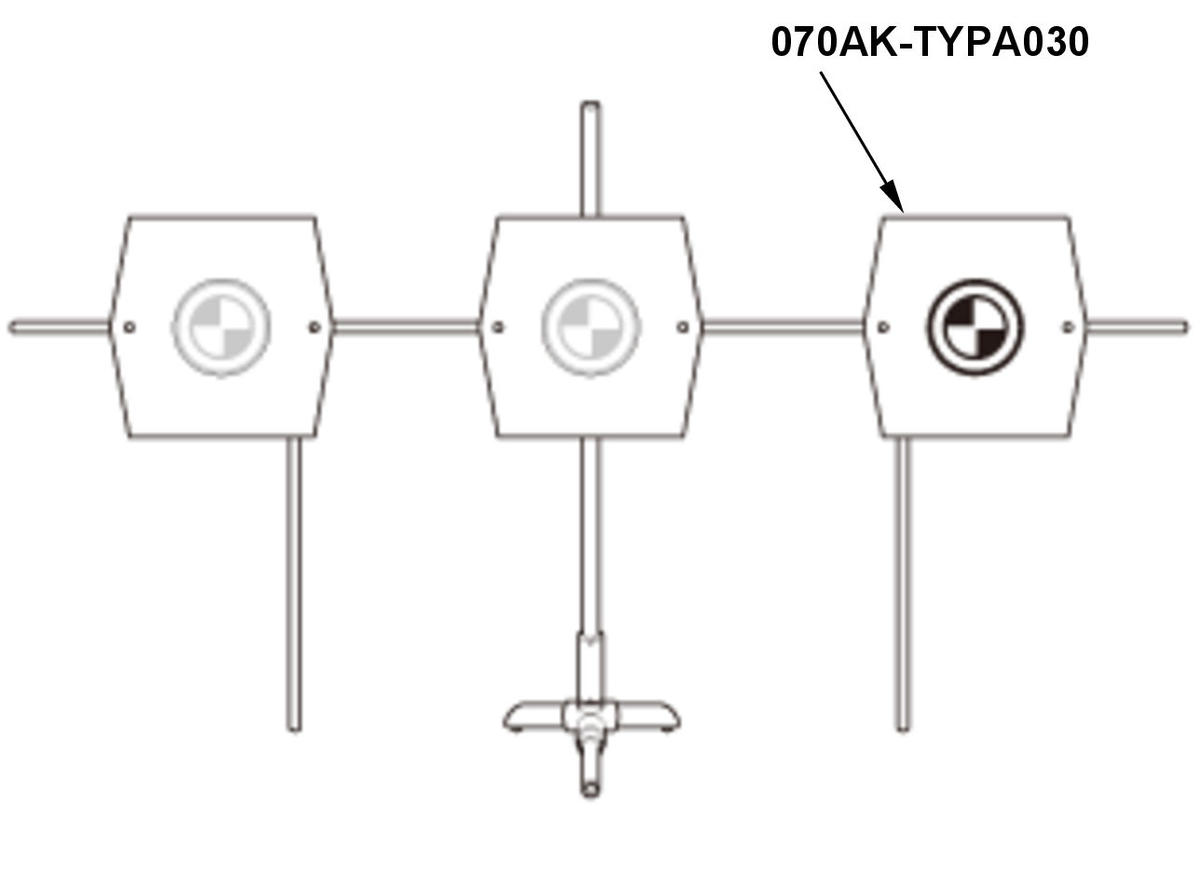

19. Select "Target Left".

20. Confirm "Target Left is completed".

Courtesy of HONDA, U.S.A., INC.

21. Select "Target Right".

22. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

23. Confirm "Static Camera Aiming is completed".

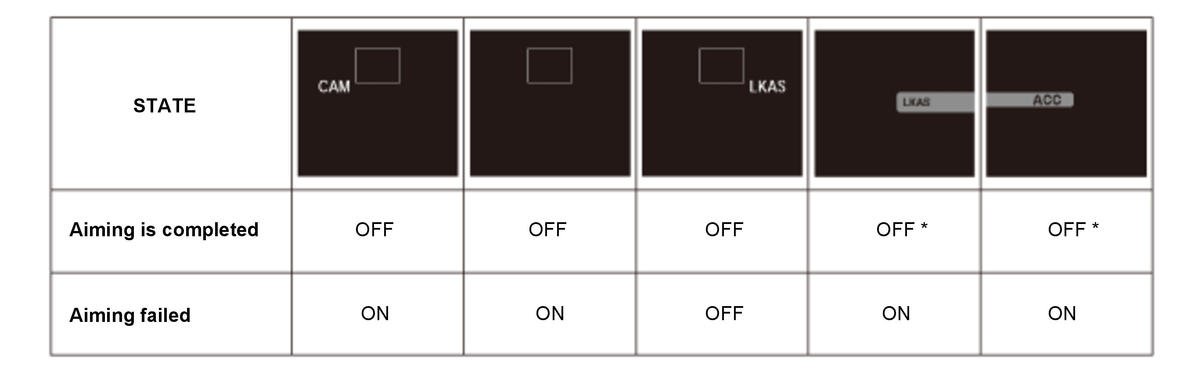

24. The static camera aiming status can be confirmed by looking at the CAM indicator.

If the CAM indicator on the MID turns off, the aiming procedure is completed. Proceed to the next step to perform the dynamic aiming procedure.
If the CAM indicator does not turn off, the aiming procedure was not completed. If ERROR is indicated on the HDS, the aiming procedure failed. The reason for the failure (detection item) will also be displayed. Determined the cause of the failure according to the Aiming Failure Index.

Courtesy of HONDA, U.S.A., INC.

*: These indicators will blink after the vehicle is turned OFF (LOCK) mode and then to the ON mode.

Multipurpose Camera - Dynamic Camera Aim
Precaution for the Dynamic Camera Aiming:
- Carry out the dynamic camera aiming on a flat and straight road that has several lanes that will allow the vehicle to be driven at speeds between 45 - 70 mph (72 - 112 km/h) for 10 minutes or more.
- You must complete the dynamic aiming within 30 minutes or the aiming will fail.
- Poor weather such as rain, fog, or snow may prevent the camera from aiming.
- Wet roads can also affect the aiming procedure if the yellow or white lines are not visible because of reflections caused by the water.
- When you do the dynamic camera aiming in the dark, turn the headlights on and ensure that the windshield and headlights are clean.
- If the dynamic camera aiming fails for some reason, an aiming failure code is displayed on the HDS. In this case, carry out the troubleshooting for the code indicated using the HDS.
- When doing the aiming procedure, make sure you drive in the center of the lane and avoid using the windshield wipers or the turn signal.
1. Start the engine.

2. Check the multipurpose camera unit DTCs with the HDS - Refer to:

How to Troubleshoot the Lane Keeping Assist System (LKAS) (2016 2017 2018) Make sure that only DTC B2A60-52 indicated.

How to Troubleshoot the Lane Keeping Assist System (LKAS) (2019 2020 2021) Make sure that only DTC B2A60-52 indicated.

NOTE: The multipurpose camera aiming procedure can be done when this DTC is shown but if any other DTC is indicated, troubleshoot the DTC before continuing.

3. In the DRIVING SUPPORT menu, select INTEGRATED DRIVER SUPPORT SYSTEM, then ADJUSTMENT, then select DYNAMIC CAMERA AIMING on the HDS. The ACC, LKAS, RDM and CMBS indicators along with "CAM" will blink on the MID.

4. Carry out the aiming according to the instructions indicated on the HDS screen. If the dynamic camera aiming fails for any reason, the HDS will display ERROR along with the reason for the failure (detection item) on the HDS. Determine the cause of the failure according to the Aiming Failure Index.

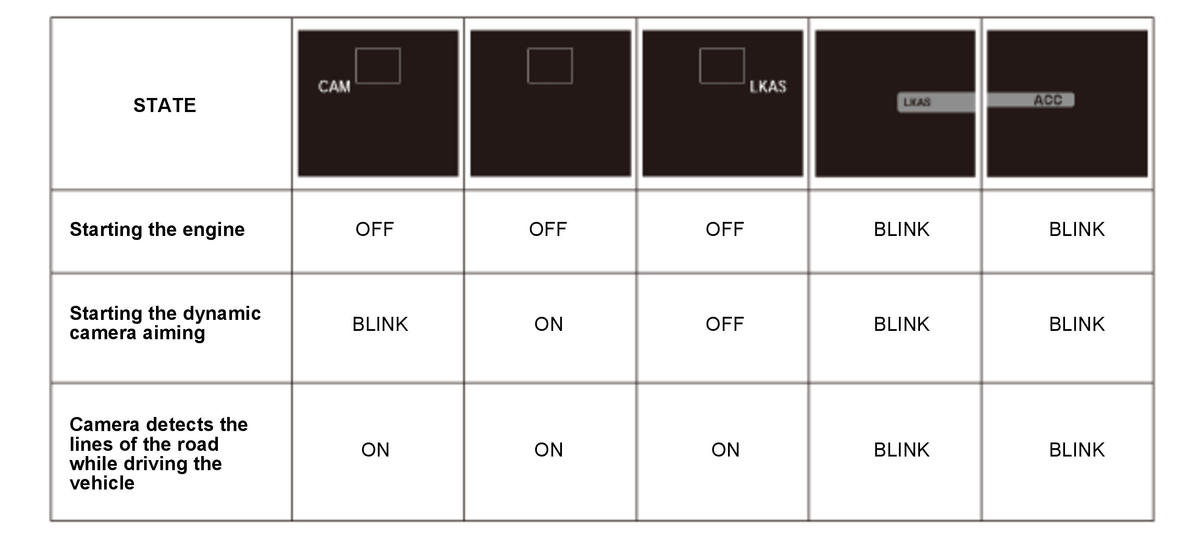

NOTE: The dynamic camera aiming status can be confirmed by the indicators on the MID.

Courtesy of HONDA, U.S.A., INC.

5. Stop the vehicle after confirming that the aiming is completed. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode, and make sure the LKAS indicator and the CAM indicator do not appear on the MID. If any DTCs are indicated, troubleshoot the indicated DTC.

NOTE: The dynamic camera aiming status can be confirmed on the MID and LKAS indicator as follows. If the CAM indicator does not turn off, the aiming procedure was not completed. Do the dynamic camera aiming procedure again.

Courtesy of HONDA, U.S.A., INC.

6. Turn the vehicle to the OFF (LOCK) mode.

7. Disconnect the HDS.

Aiming Failure Code Index

NOTE: When the aiming procedure fails, the ERROR indicator is displayed on the HDS.

When the Static Camera Aiming Fails:

Detection Item	Diagnostic Procedure
Multipurpose camera unit function failure.	Check the multipurpose camera unit DTCs with the HDS and do the indicated DTC troubleshooting. After the DTC has cleared, do the aiming procedure.
The position of three targets (prescribed distance, height, or distance between the targets) are not correct.	After checking the following, do the aiming procedure again: Check that the aiming target is installed correctly on the body center-line. Check the prescribed distance. Check the target height.
Multipurpose camera unit mounting angle/position is not correct: The target is not properly positioned. The target is not horizontally set up. The arrangement of three targets (middle, left side and right side) is not correct. The multipurpose camera unit is not correctly installed. There is cargo in the vehicle. The tire pressure is not correct. The vehicle inclined abnormally (modified or damaged suspension etc.).	After checking the following, do the aiming procedure again: The vehicle and the target is correctly set up. The multipurpose camera unit is correctly installed. There is no additional items in the trunk. The tire pressure is correct. Check for modified or damaged suspension, if necessary check the wheel alignment .
The middle target cannot be detected: The windshield or the multipurpose camera lens is dirty. There is not enough light or there is a strong backlight. There is a strong backlight behind the target such as the sun or strong shop lighting. There is something on the dashboard that is reflecting in the windshield. The target is not properly positioned. The multipurpose camera unit malfunction. The left target cannot be detected. The right target cannot be detected.	After checking the following, do the aiming procedure again: Check the prescribed distance. Check the target height. Check the distance between targets. Make sure the multipurpose camera lens has a clear, unobstructed view of the target.
The quantity of lights to a target is insufficient.	After checking the following, do the aiming procedure again: The target area should be made brighter so that a target may look clear.
The quantity of lights to a target is excess.	After checking the following, do the aiming procedure again: Move the vehicle to an area with less lighting or turn off interior lights as necessary.
Multipurpose camera unit temperature is out of range.	After checking the following, do the aiming procedure again: The multipurpose camera unit is beyond its normal operating temperature range of - 104 to 221 °F (- 40 to 105 °C).

When the Dynamic Camera Aiming Fails:

Detection Item	Diagnostic Procedure
Multipurpose camera unit function failure.	Check the multipurpose camera unit DTCs with the HDS and do the indicated DTC troubleshooting. After DTC is cleared, do the dynamic aiming procedure again.
Multipurpose camera unit mounting angle/position is not correct.	After checking the following, do the aiming procedure again. The multipurpose camera unit is correctly installed. There is no additional items in the trunk. The tire pressure is correct. Check for modified or damaged suspension, if necessary check the Wheel Alignment .
Multipurpose camera unit temperature out of range.	After checking the following, do the aiming procedure again: The multipurpose camera unit is beyond its normal operating temperature range of - 104 to 221 °F (- 40 to 105 °C).
