Self-Diagnostic Function

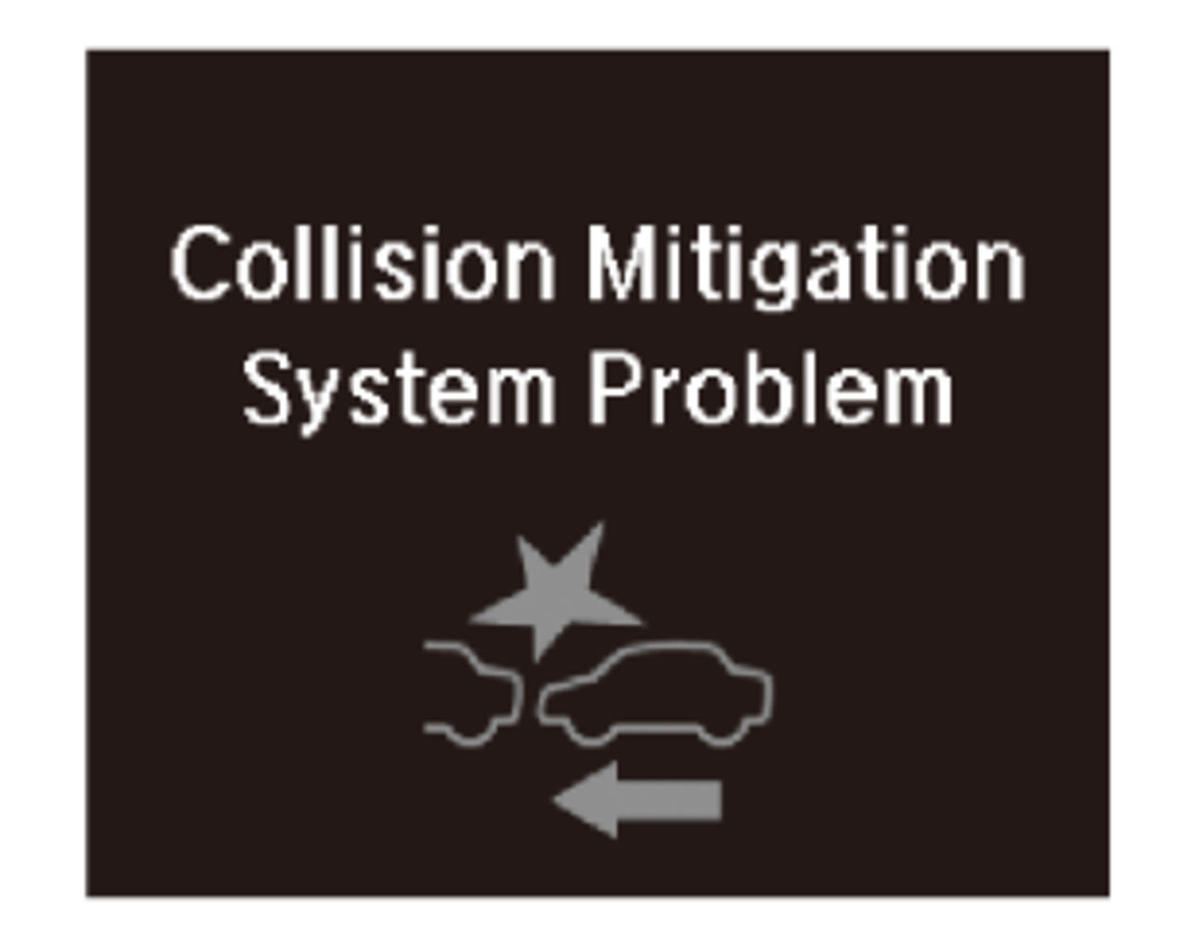

When a problem is detected by the self-diagnostic function, the CMBS stops operating, turns on the CMBS indicator, indicates the problem on the MID, and stores the DTC.

GHH311027Courtesy of HONDA, U.S.A., INC.
