A/C Compressor Variable Capacity Control Solenoid Test: Test

  1. A/C Compressor Variable Capacity Control Solenoid - Test

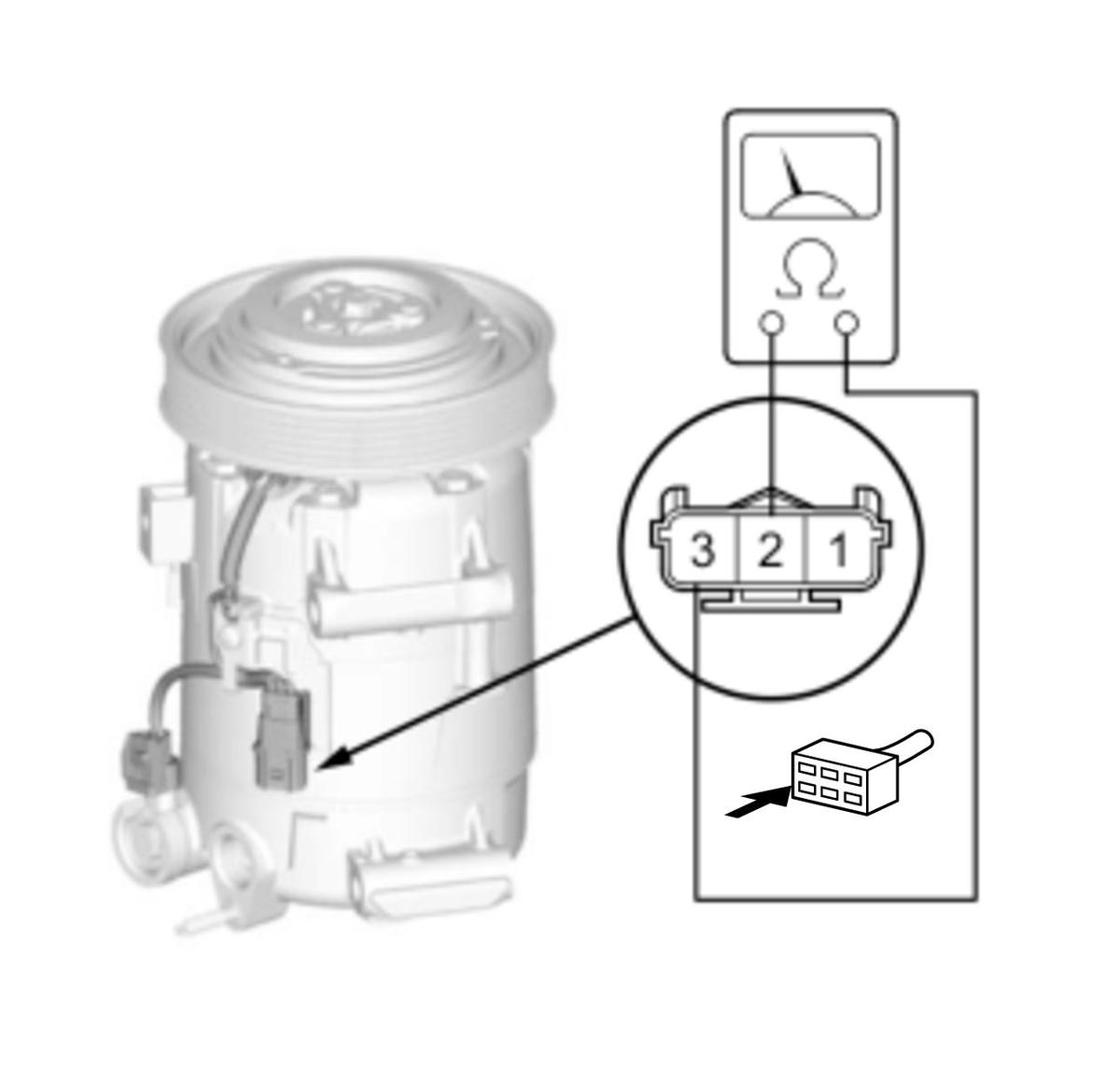

    GHH309956Courtesy of HONDA, U.S.A., INC.
    		 1. Measure the resistance between A/C compressor clutch 3P connector terminals No. 2 and No. 3. If the resistance is not within specifications, replace the A/C compressor .
    Variable Capacity Control Solenoid Resistance:  9.6-11.6Ω at 68 °F (20 °C)
