Charging System - Service Information: Overhaul: Alternator: Disassembly: Procedure

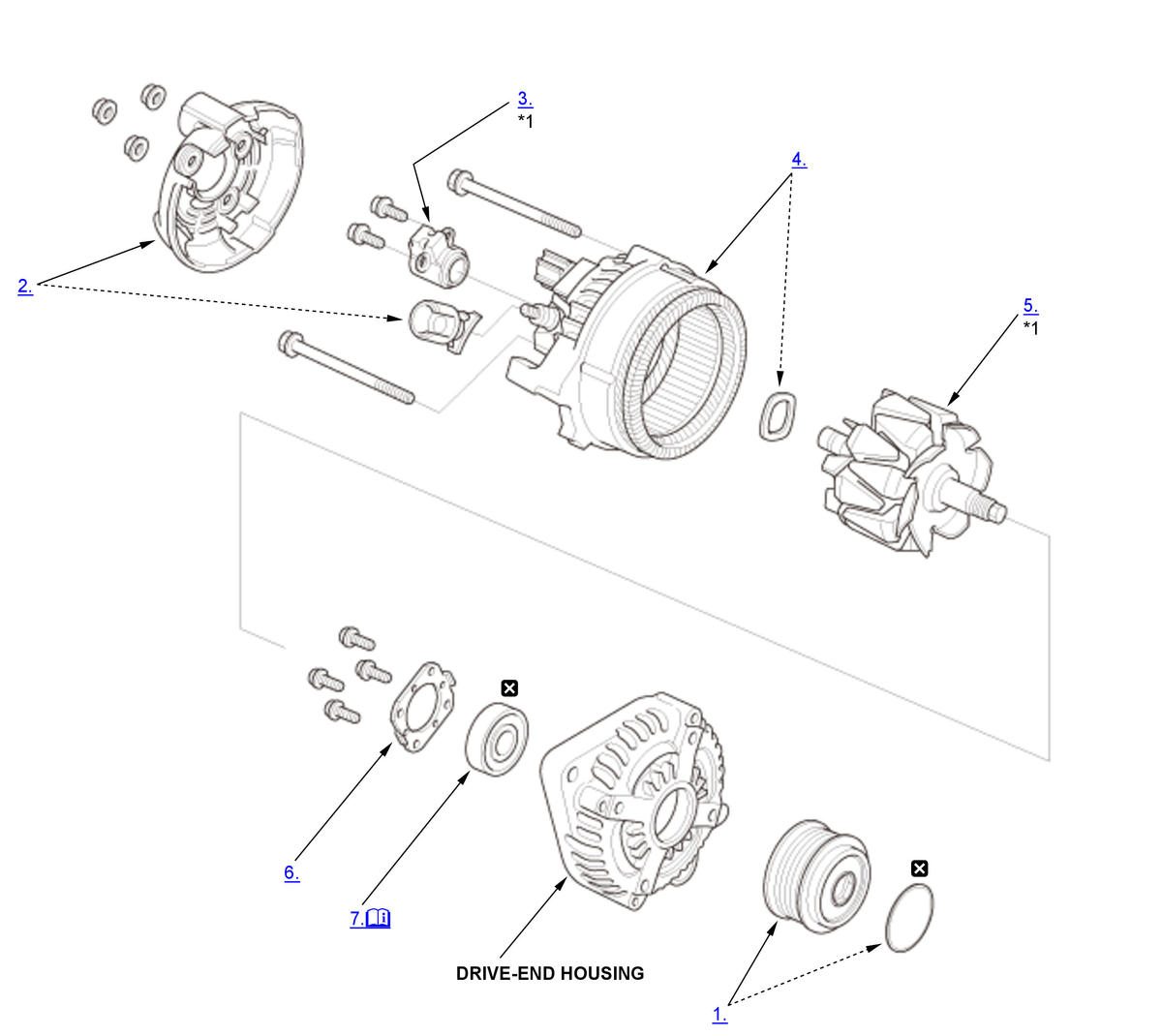

Fig 1: Exploded View Of Alternator

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace
*1	These parts have inspection items.

1. OAD Pulley - Remove
2. End Cover and Terminal Insulator - Remove
3. Brush Holder - Remove
4. Rear Housing Assembly - Remove
5. Rotor - Remove
6. Front Bearing Retainer - Remove
7. Front Bearing - Remove

   Courtesy of HONDA, U.S.A., INC.

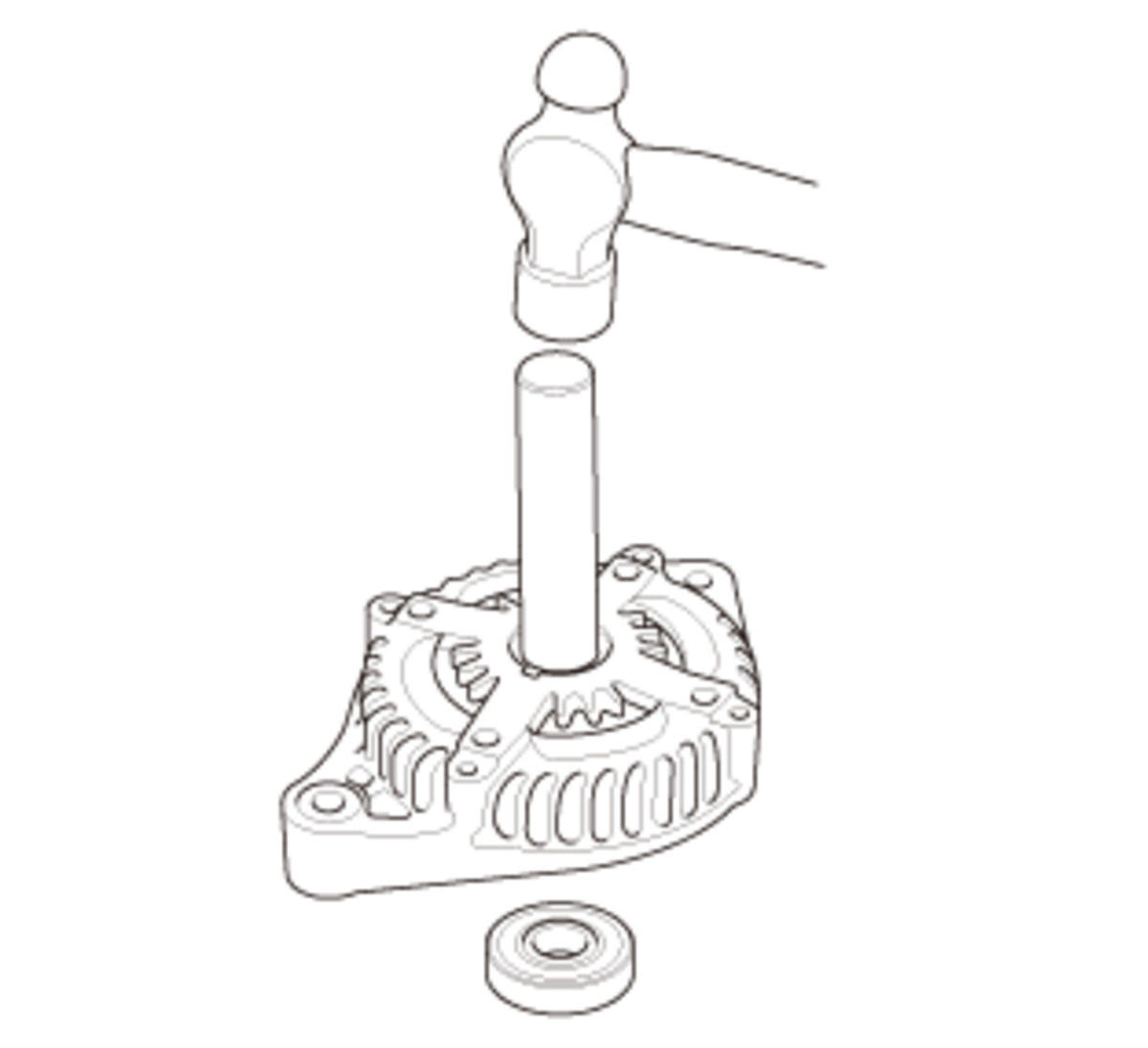

   1. Drive out the front bearing with a brass drift and a hammer.
