Charging System - Service Information: Overhaul: Alternator: Reassembly: Procedure

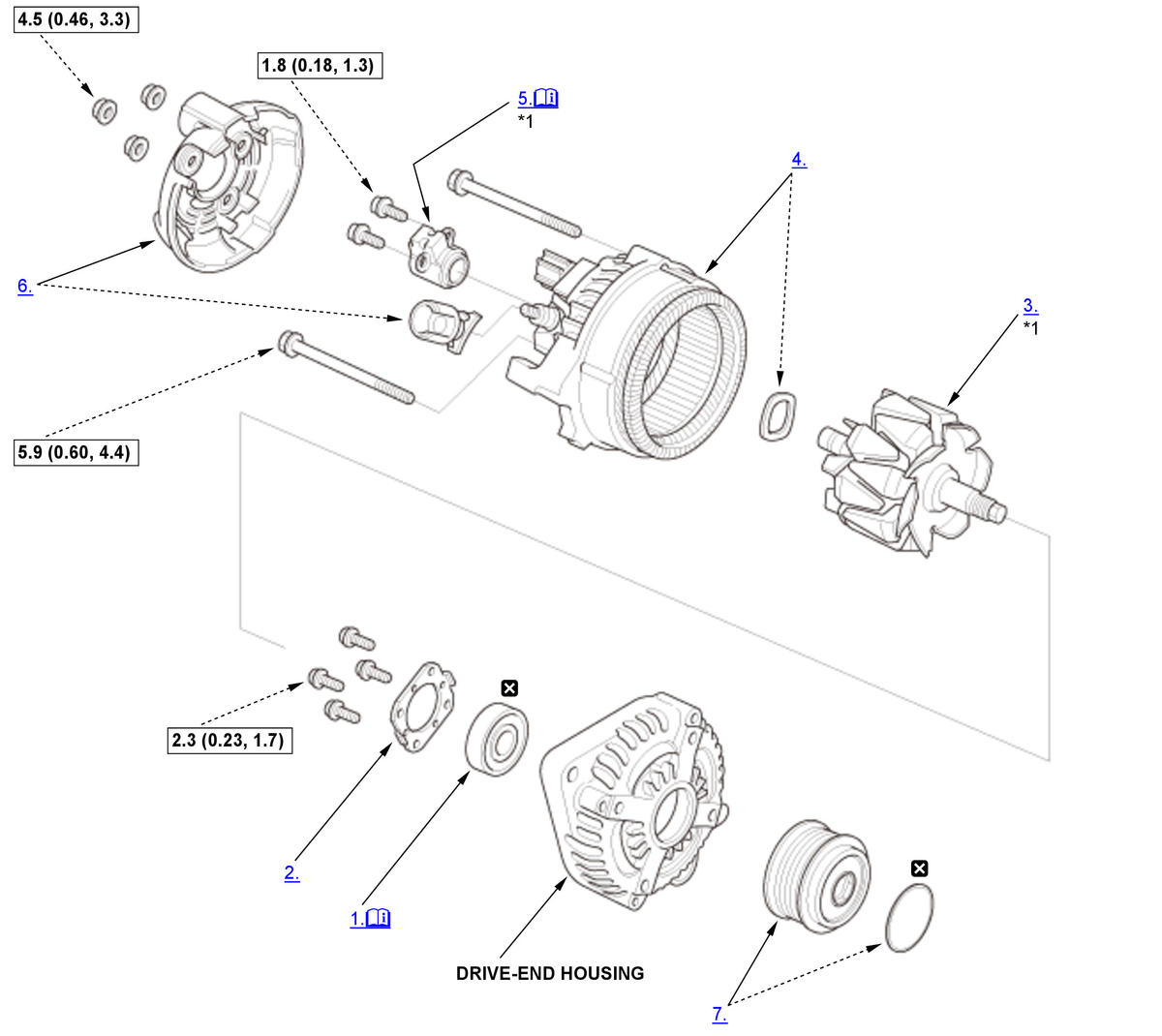

Fig 1: Exploded View Of Alternator

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N-m (Kgf-m, lbf.ft)
	Replace
*1	These parts have inspection items.

1. Front Bearing - Install

   Courtesy of HONDA, U.S.A., INC.

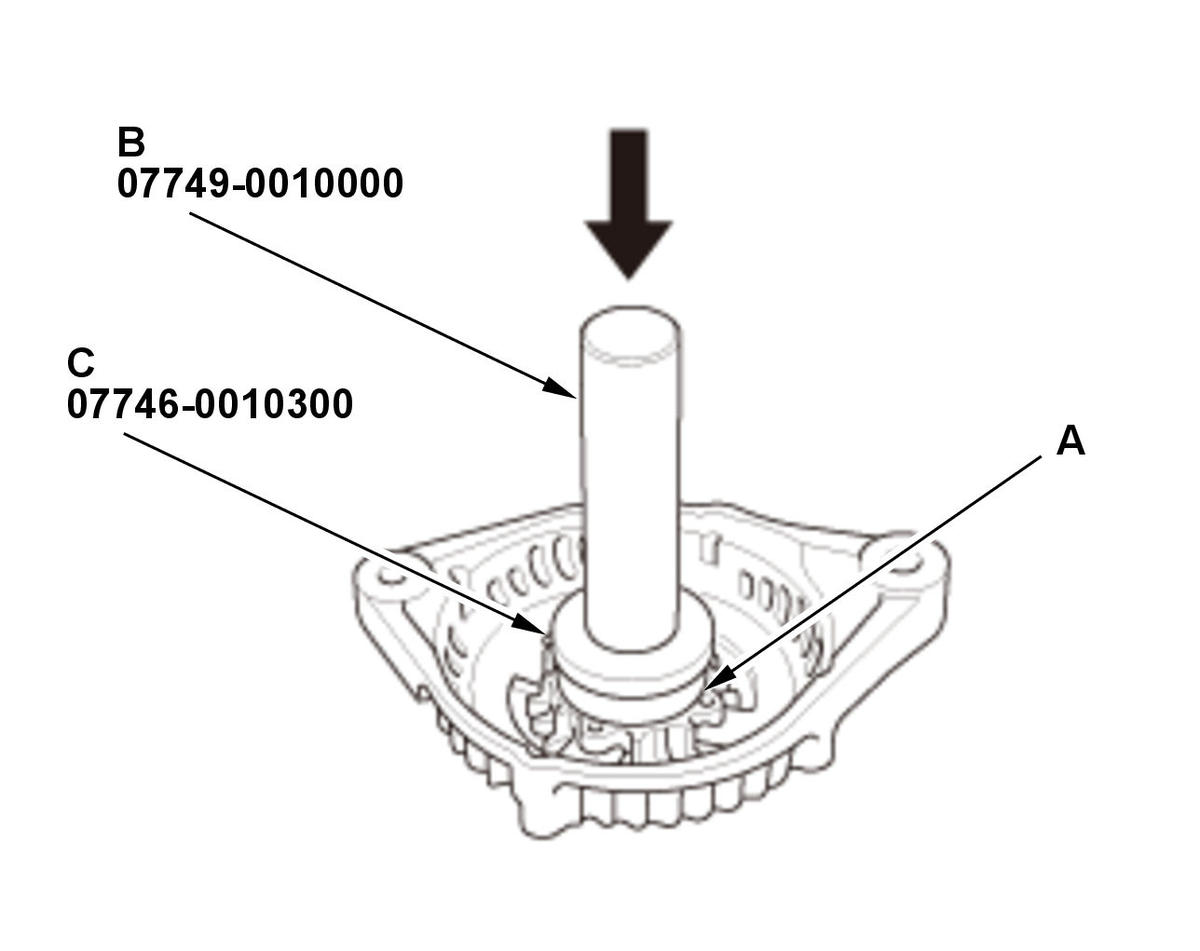

   1. Use a hand press to install a new front bearing (A) in the drive-end housing, with the driver handle, 15 x 135L (B), and the bearing driver attachment, 42 x 47 mm (C).

2. Front Bearing Retainer - Install
3. Rotor - Install
4. Rear Housing Assembly - Install
5. Brush Holder - Install

   Courtesy of HONDA, U.S.A., INC.

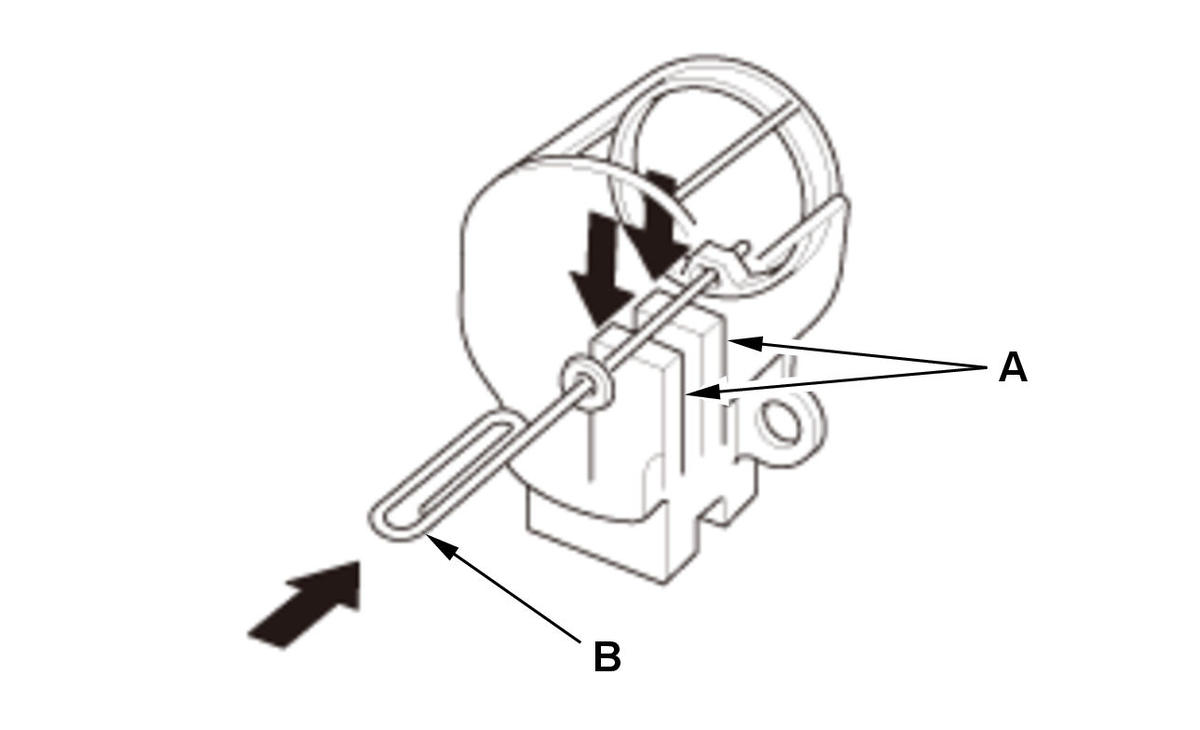

   1. Push the brushes (A) in, then insert a pin or drill bit (B) (about 1.6 mm (1/16 in) diameter) to hold them there.

   Courtesy of HONDA, U.S.A., INC.

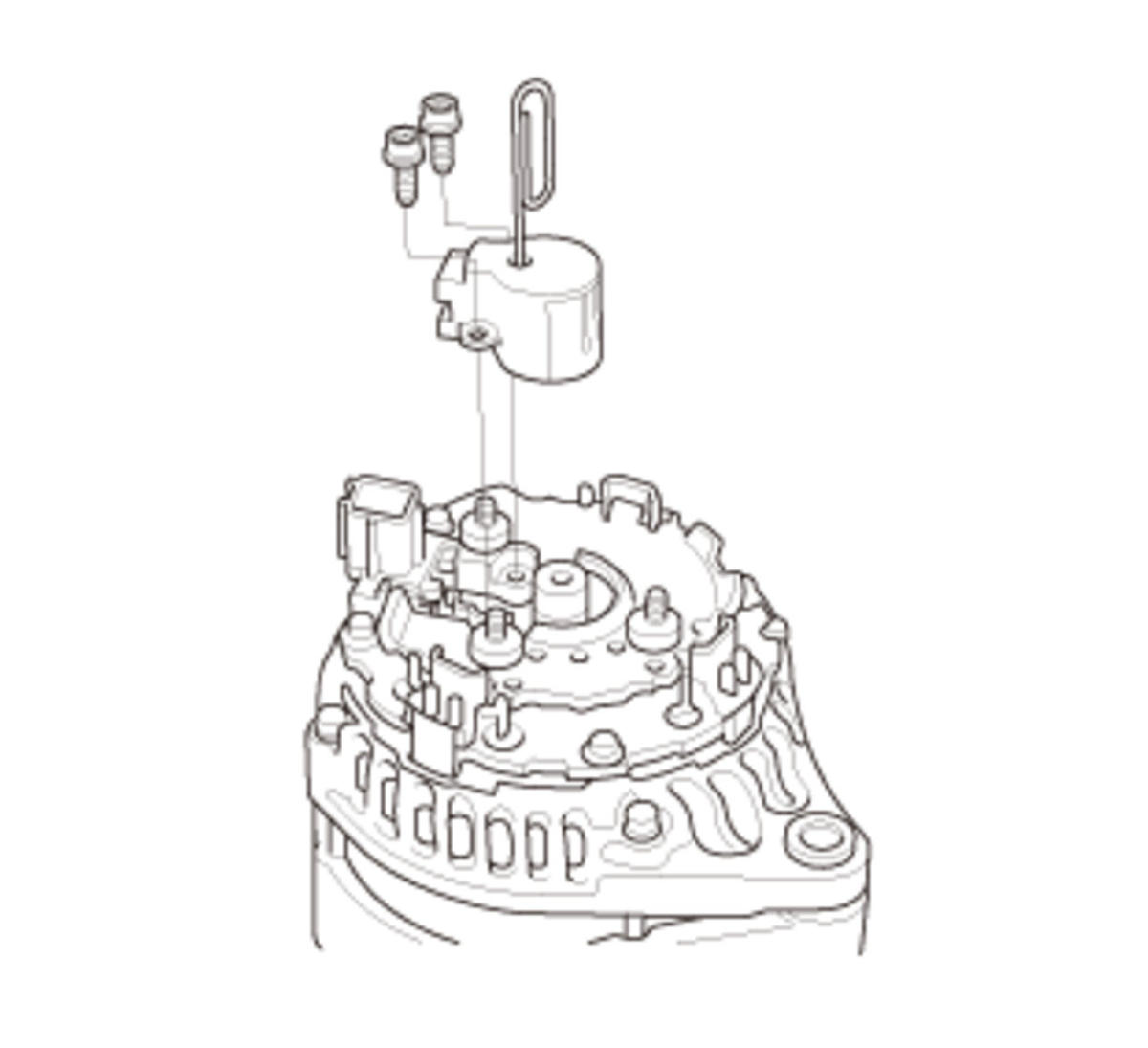

   2. Install the brush holder.

   Courtesy of HONDA, U.S.A., INC.

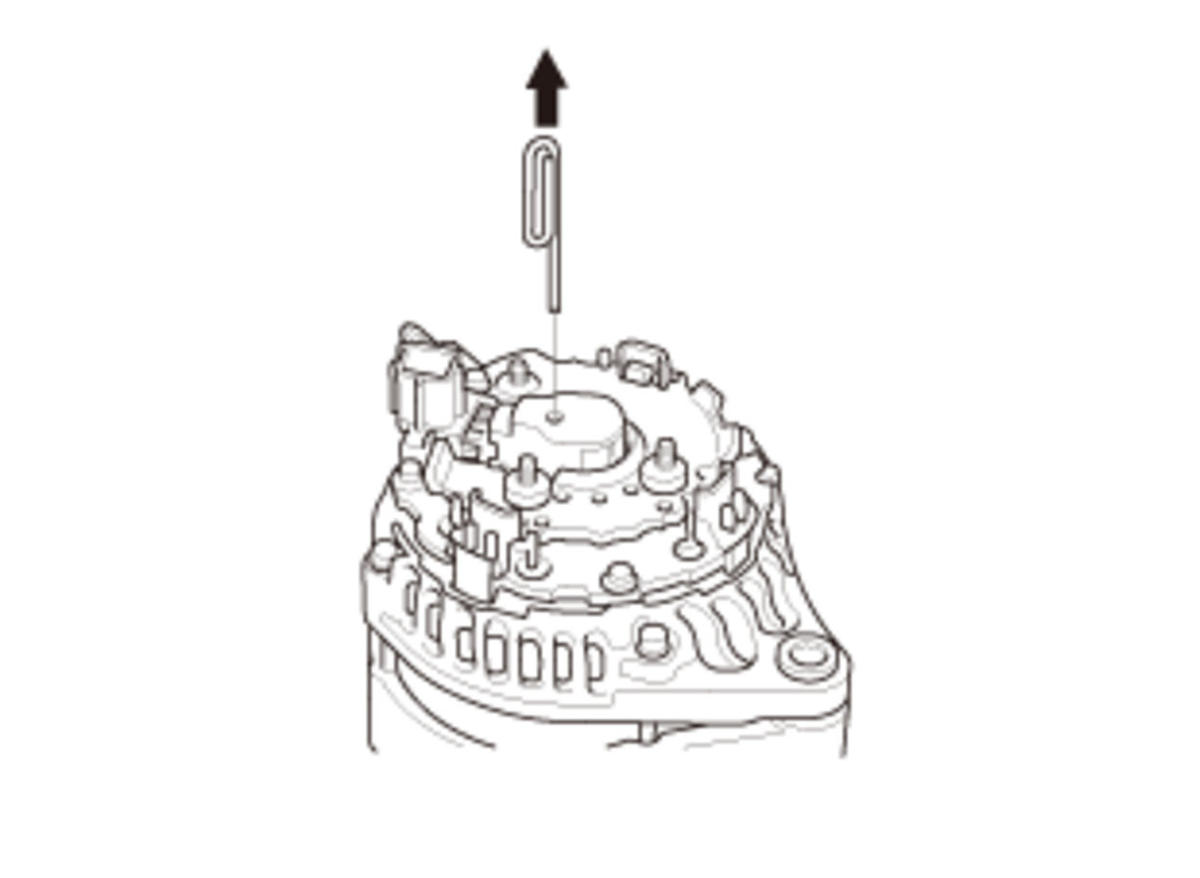

   3. Pull out the pin or drill bit.

6. End Cover and Terminal Insulator - Install
7. OAD Pulley - Install
