Removal and Installation

  1. Transmission Assembly - Remove - Refer to:

    Automatic Transmission Removal and Installation (9-Speed A/T)

    Automatic Transmission Removal and Installation (6-Speed A/T)

  2. Drive Plate Assembly - Remove

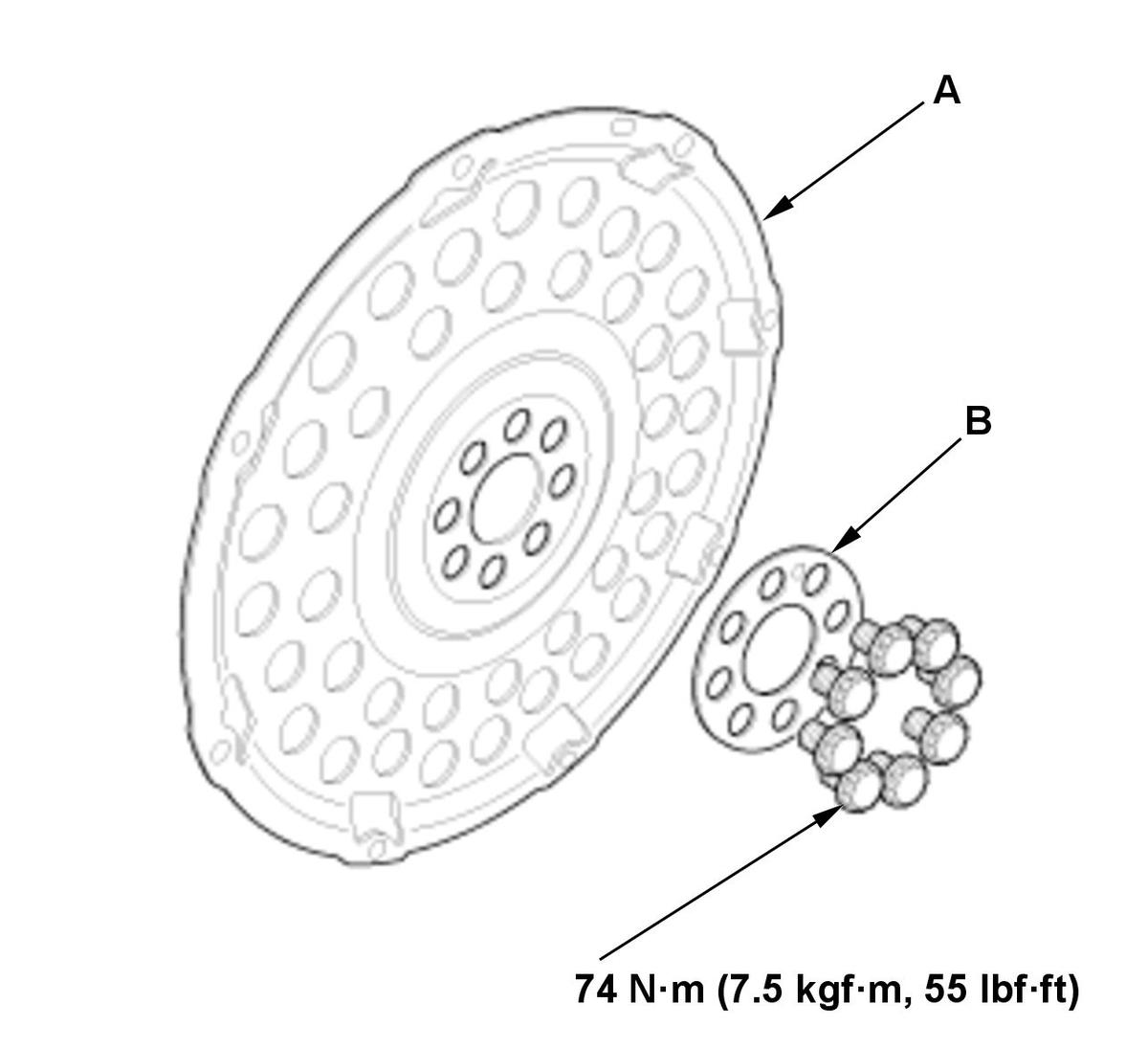

    Fig 1: Drive Plate Assembly With Torque Specifications
    GHH308470Courtesy of HONDA, U.S.A., INC.
    1. Remove the drive plate (A) and the washer (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.

    NOTE:  Tighten the eight bolts in a crisscross pattern in at least two steps.
