PCM (6-Speed A/T), ('16-'18 9-Speed A/T): Removal

NOTE:

• Make sure the HDS or the MVCI has the latest HDS software version.
• If you are replacing the PCM after substituting a known-good PCM, reinstall the original PCM, then do this procedure.
• If you are removing or substituting the PCM, skip the procedures of READ DATA (Engine Oil Life and Starter Counter).

1. HDS - Connect
2. READ DATA (Engine Oil Life and Starter Counter) - Select (USA and Canada Models)

   1. Select the PGM-FI system with the HDS. 2. Select the REPLACE PCM MENU, then select READ DATA, and follow the screen prompts. NOTE: Doing this step copies (READS) the engine oil life data and the starter counter data from the original PCM so you can later download (WRITES) them into the new PCM. If the READ DATA indicates FAILED, continue with this procedure.

3. SCS - Short

   1. Jump the SCS line with the HDS, and wait more than 1 minute. 2. Turn the vehicle to the OFF (LOCK) mode.

4. Front Bulkhead Cover - Remove
5. PCM - Remove

   Courtesy of HONDA, U.S.A., INC.

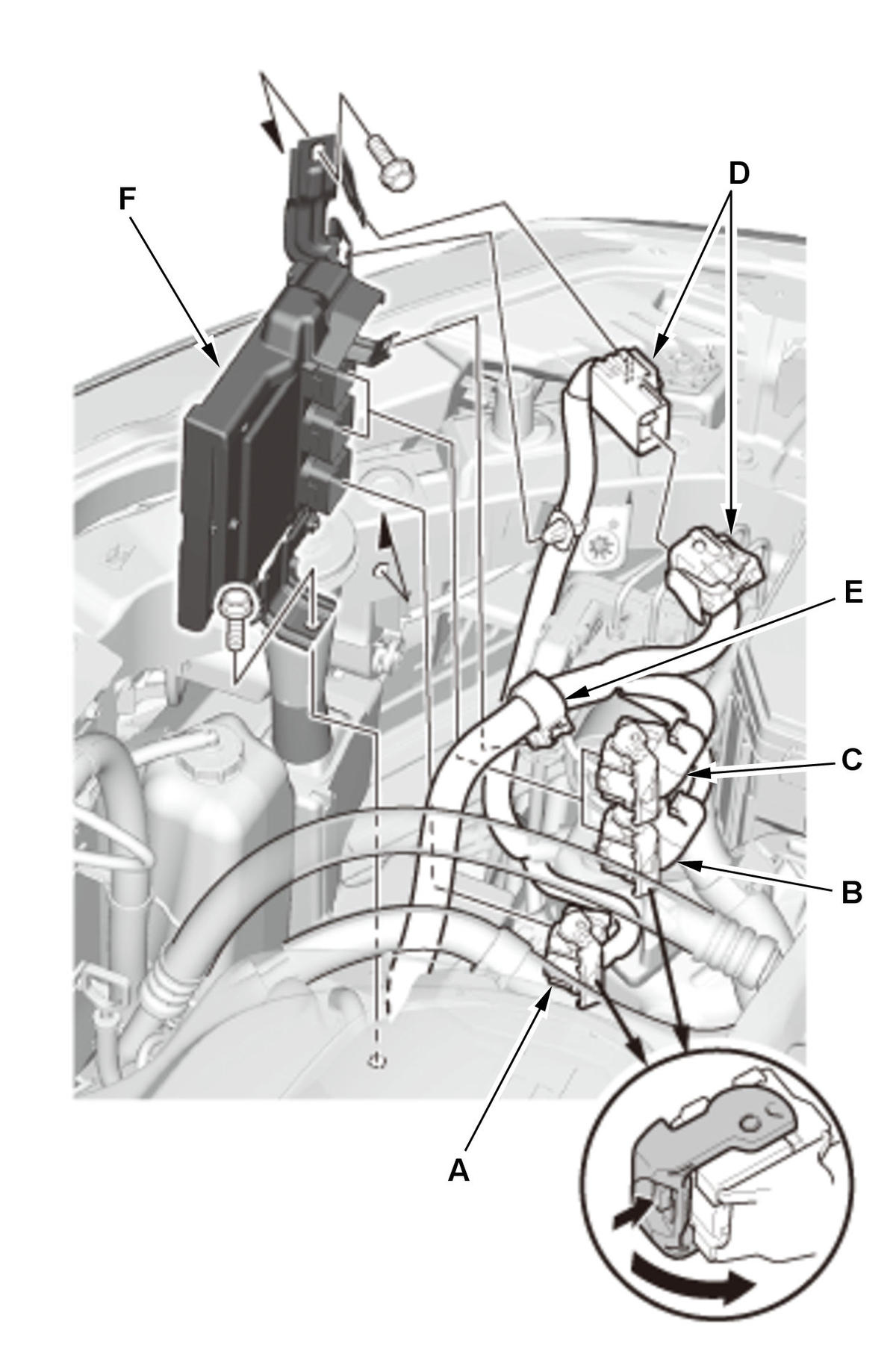

   1. Disconnect PCM connectors A, B, and C. NOTE:  PCM connectors A, B, and C have symbols (A=□, B=Δ, C=◦) embossed on them for identification. 2. Remove the connector (D), and the harness holder (E). 3. Remove the PCM assembly (F).

   Courtesy of HONDA, U.S.A., INC.

   4. Remove the cover (A) and the bracket (B) from the PCM (C).
