Removal and Installation

Engine Cover - Remove
Rocker Arm Oil Pressure Switch A (Bank 2) - Remove

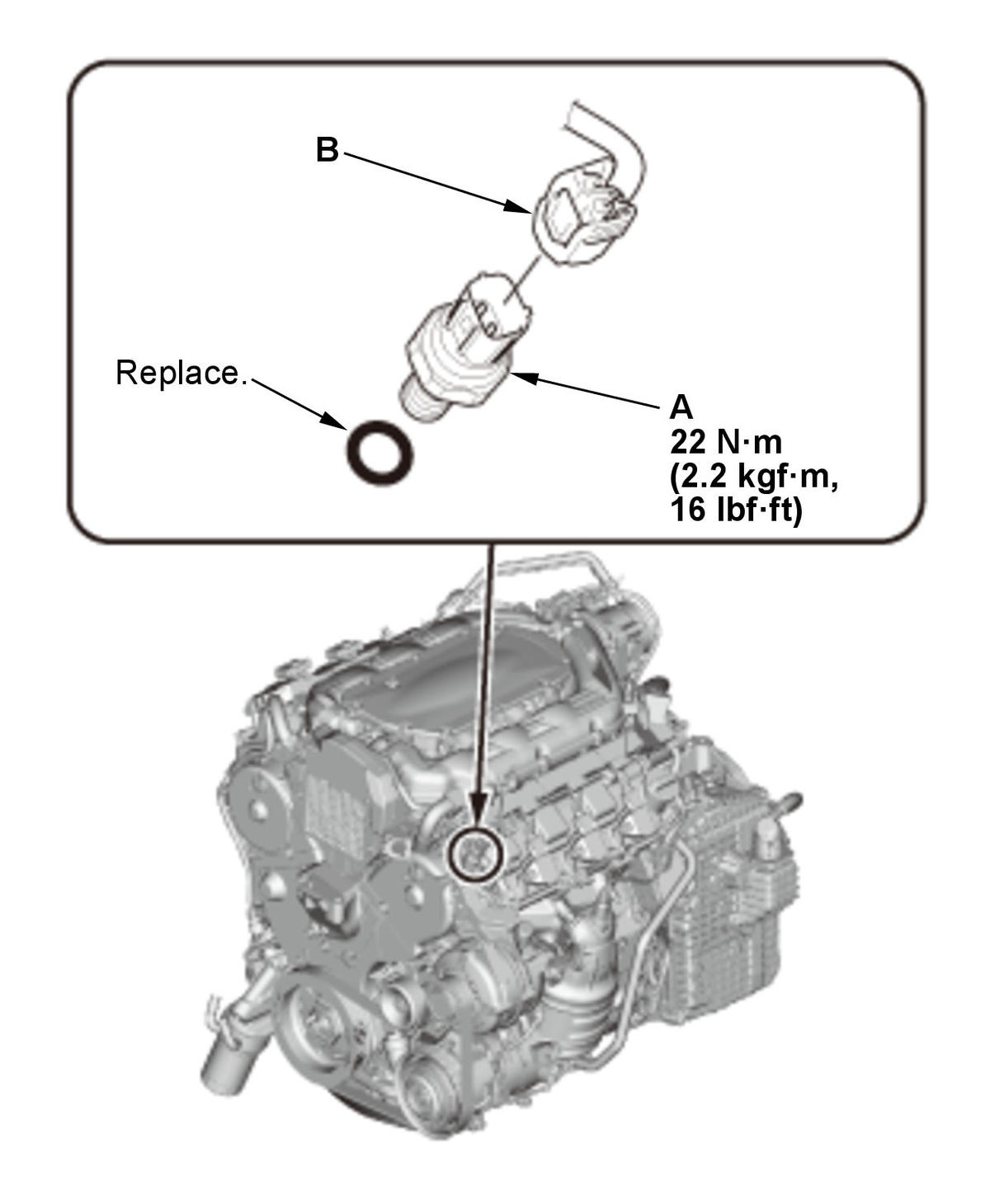

Fig 1: Rocker Arm Oil Pressure Switch A (Bank 2) With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector (B).
2. Remove rocker arm oil pressure switch A (Bank 2).
All Removed Parts - Install

1. Install the parts in the reverse order of removal with a new O-ring.
