DTC : P0452 (2019 2020 2021): General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

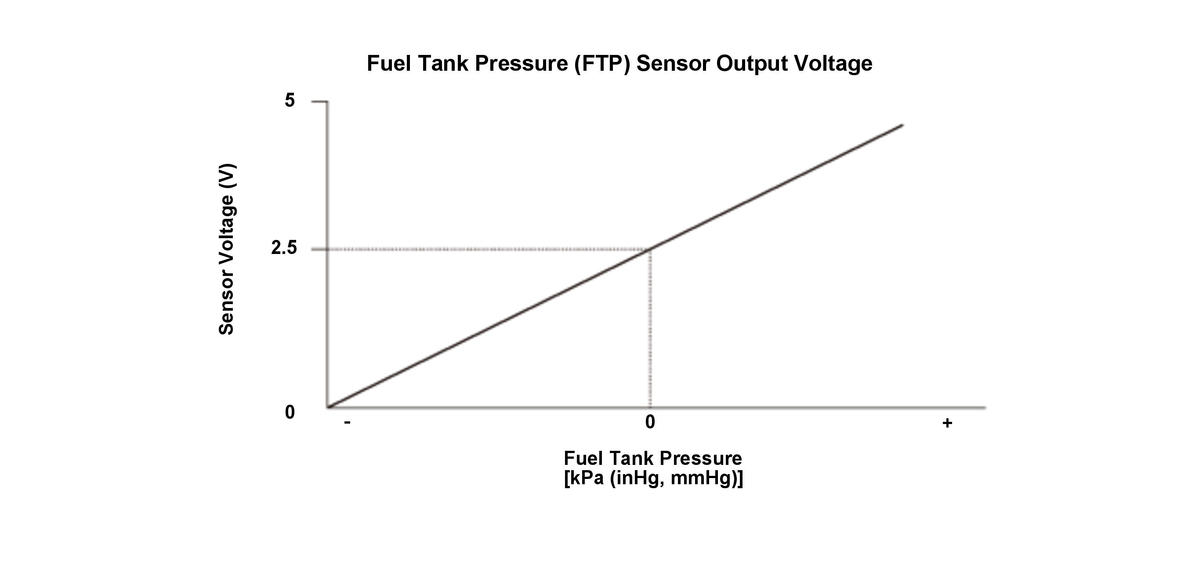

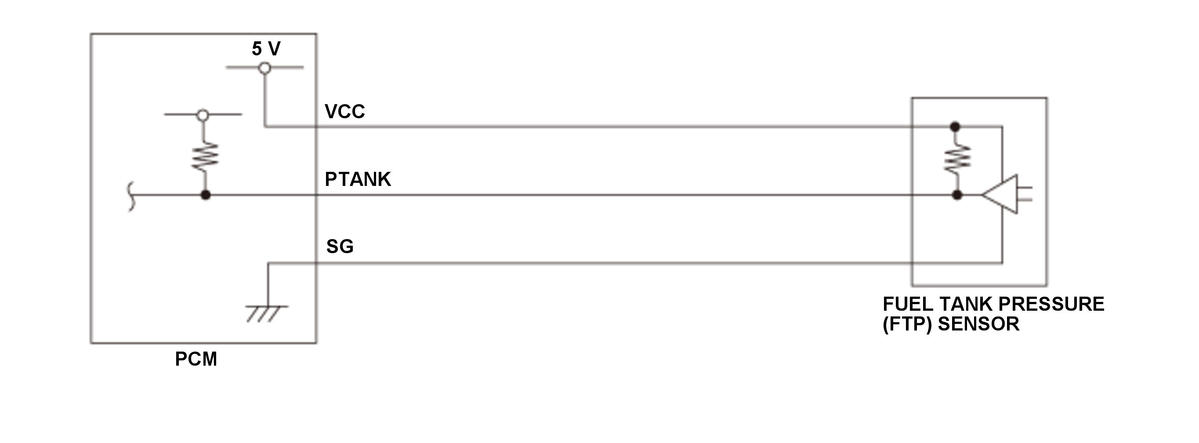

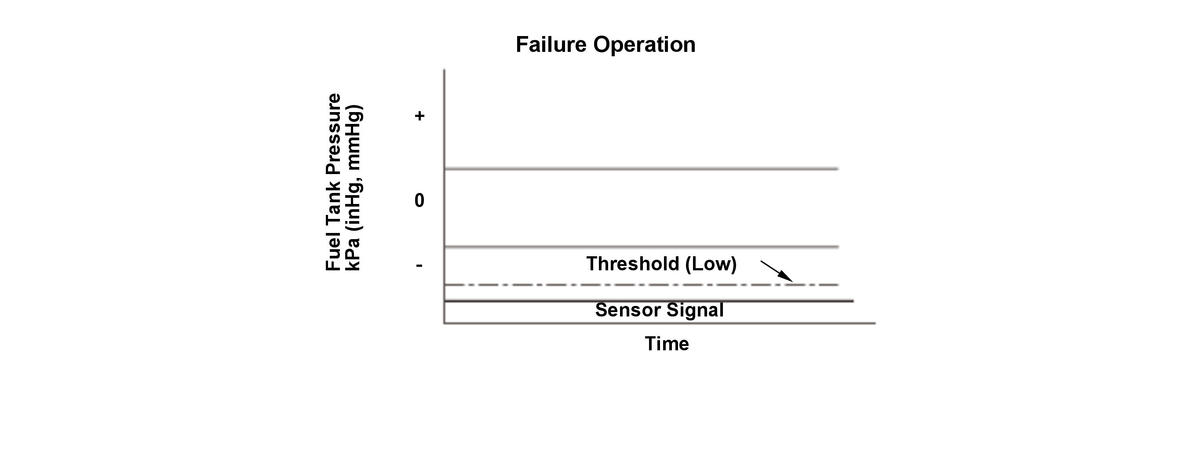

The fuel tank pressure (FTP) sensor is installed on the evaporative emission (EVAP) canister and detects the fuel tank pressure. The FTP sensor is used to detect leaks in the EVAP system. The powertrain control module (PCM) monitors the FTP sensor output voltage. The FTP sensor output voltage rises as the fuel tank pressure increases. Conversely, the FTP sensor output voltage drops as the fuel tank pressure decreases. If the FTP sensor output voltage does not reach a target value for a set time after starting the engine in a cold condition, the PCM detects a malfunction and stores a DTC.
