DTC P0848 (6-Speed A/T)

DTC P0848  : Transmission Fluid Pressure Switch B (3rd Clutch) Circuit High

NOTE:

• Before you troubleshoot, review the General Troubleshooting Information - Refer to: How to Troubleshoot the A/T System .
• If DTC P0848 is stored in the PCM, the transmission does not shift to any gear other than 3rd through 5th gear because of the fail-safe function.

DTC (A/T)

1. Problem verification

   - 1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   - 3. Raise the vehicle on a lift. Make sure it is securely supported, and allow all four wheels to rotate freely.

   - 4. Start the engine.

   - 5. Disable the VSA by pressing the VSA OFF button.

   NOTE: Enter the VSA maintenance mode in case of the vehicle speed above 31 mph (50 km/h).

   - 6. Run the vehicle in 3rd gear, and check the parameter (s) below with the HDS. Slow down, and stop the wheels.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   3rd Pressure Switch	ON

   Do the current condition (s) match the threshold in 3rd gear?

   YES

   Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between transmission fluid pressure switch B (3rd clutch) and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

   NO

   The failure is duplicated. Go to step 2.

2. Determine possible failure area (transmission fluid pressure switch B (3rd clutch), others)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

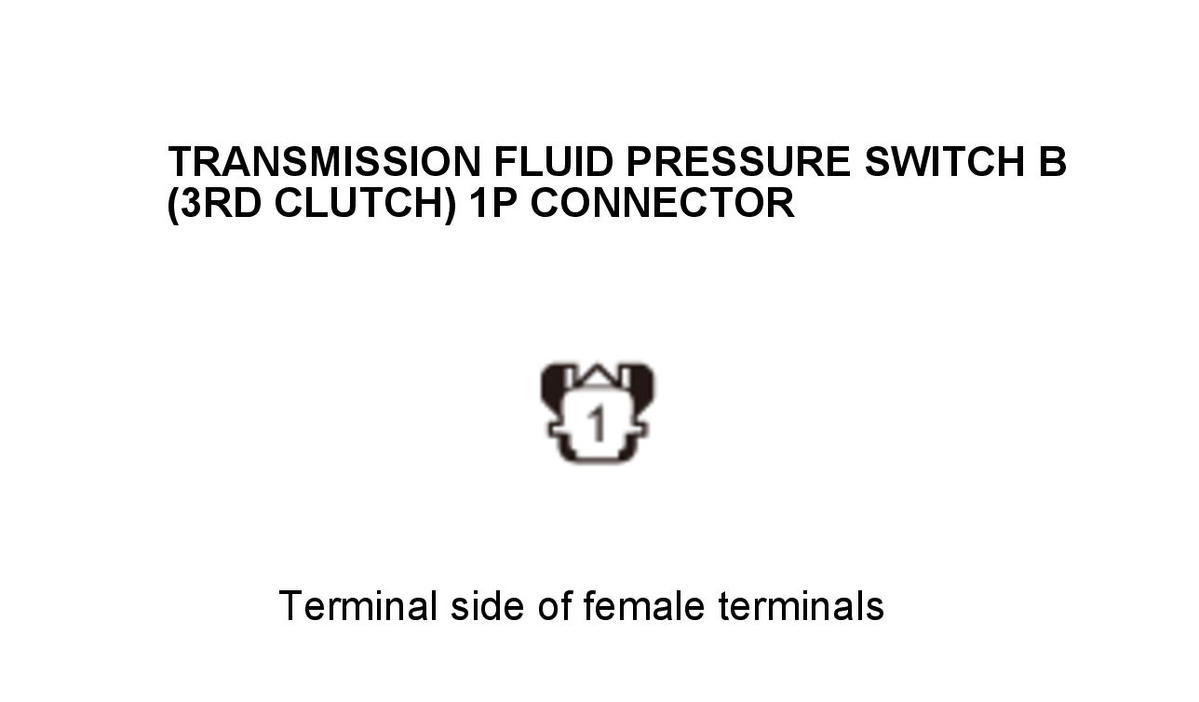

   Transmission fluid pressure switch B (3rd clutch) 1P connector

   - 3. Connect terminals A and B with a jumper wire.

   Terminal A	Transmission fluid pressure switch B (3rd clutch) 1P connector No. 1
   Terminal B	Body ground

   Courtesy of HONDA, U.S.A., INC.

   - 4. Turn the vehicle to the ON mode.

   - 5. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   3rd Pressure Switch	ON

   Do the current condition (s) match the threshold?

   YES

   Replace transmission fluid pressure switch B (3rd clutch) .

   NO

   Go to step 3.

3. Open wire check (OP3SW line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Remove the jumper wire.

   - 3. Jump the SCS line with the HDS, and wait more than 1 minute.

   - 4. Disconnect the following connector.

   PCM connector B (51P)

   - 5. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Transmission fluid pressure switch B (3rd clutch) 1P connector: disconnected
   	PCM connector B (51P): disconnected
   Test point 1	Transmission fluid pressure switch B (3rd clutch) 1P connector No. 1
   Test point 2	PCM connector B (51P) No. 25 - Refer to: PCM Connector for Inputs and Outputs (16-20 6-Speed A/T) .

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The OP3SW wire is OK. Replace the PCM - Refer to: PCM Removal and Installation (6-Speed A/T, 16-18 9-Speed A/T) .

   NO

   Repair an open in the OP3SW wire between transmission fluid pressure switch B (3rd clutch) and the PCM.
