DTC P2184 (6-Speed A/T, 16-18 9-Speed A/T)

DTC P2184  : ECT Sensor 2 Circuit Low Voltage

NOTE:  Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Fuel and Emissions Systems .

DTC (PGM-FI)

1. Problem verification

   - 1. Turn the vehicle to the ON mode.

   - 2. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   ECT SENSOR 2	Less than 0.08	V

   Do the current condition (s) match the threshold?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at ECT sensor 2 and the PCM.

   If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot - Refer to: How to Troubleshoot the Fuel and Emissions Systems .

2. ECT sensor 2 check

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   ECT Sensor 2 2P connector

   - 3. Turn the vehicle to the ON mode.

   - 4. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   ECT SENSOR 2	Less than 0.08	V

   Do the current condition (s) match the threshold?

   YES

   Go to step 3.

   NO

   Replace ECT sensor 2 - Refer to: ECT Sensor 2 Removal and Installation .

3. Shorted wire check (TW2 SNSR/TW2 line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Jump the SCS line with the HDS, and wait more than 1 minute.

   - 3. Disconnect the following connector.

   PCM connector A (51P)

   - 4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	ECT Sensor 2 2P connector: disconnected
   	PCM connector A (51P): disconnected

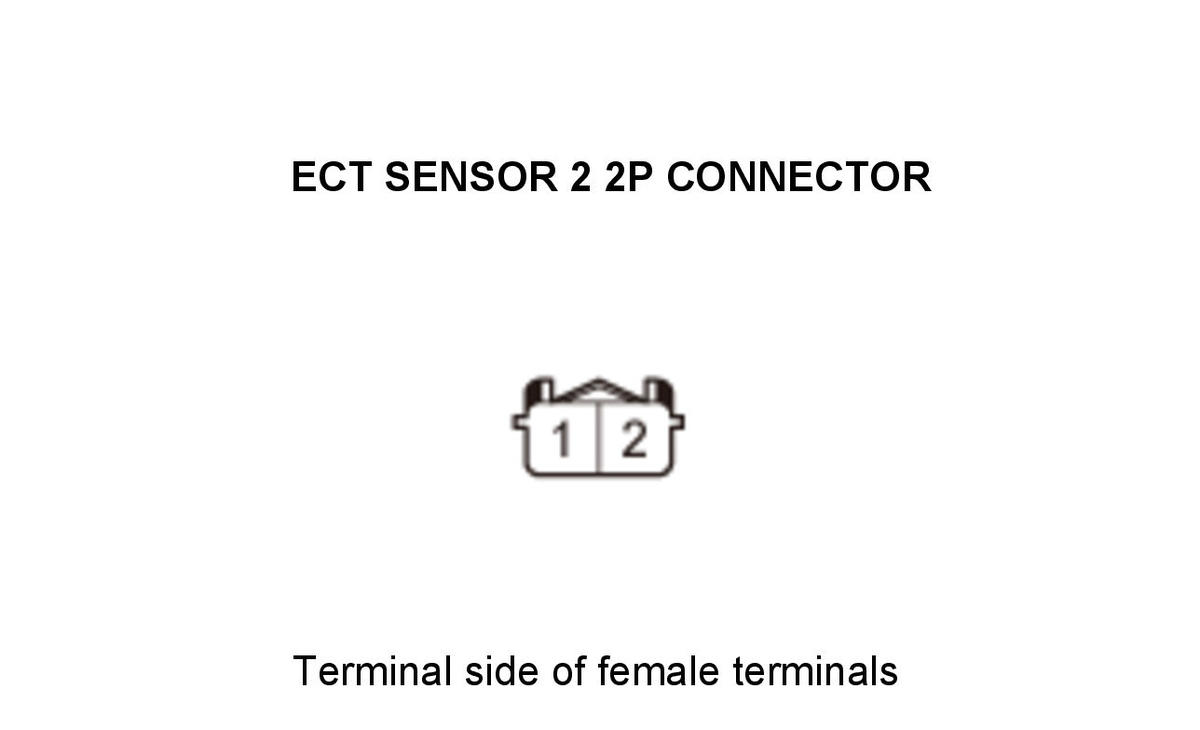

   Test point 1	ECT sensor 2 2P connector No. 2
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the TW2 SNSR/TW2 wire between the PCM (A31) and ECT sensor 2.

   NO

   The TW2 SNSR/TW2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good PCM - Refer to:

   PCM Removal and Installation (6-Speed A/T, 16-18 9-Speed A/T) .
