Exploded View

NOTE:

For these operations, refer to the complete procedure as needed.

  1. Steering Gearbox

    Exploded view

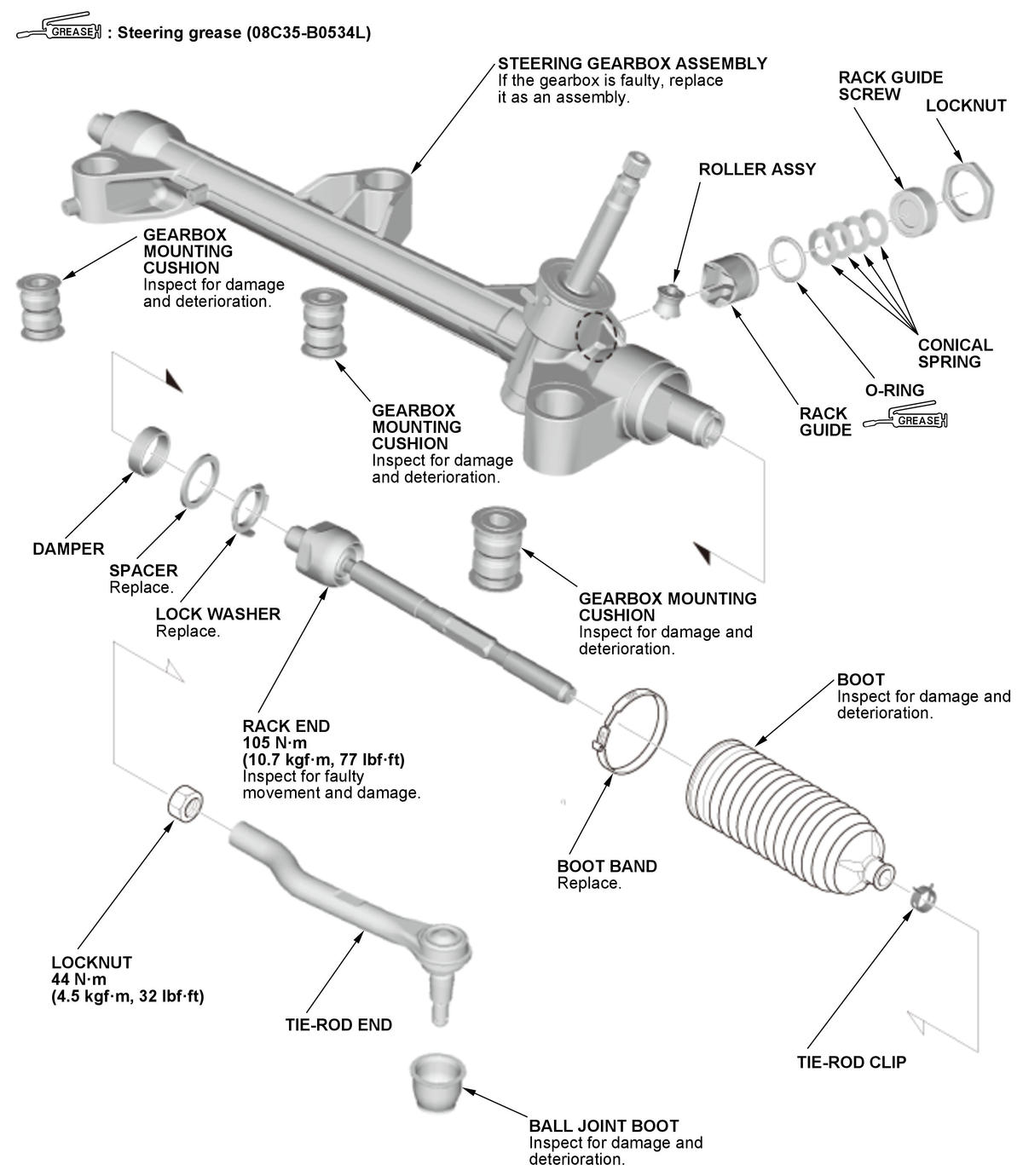

    Fig 1: Exploded View Of Steering Gearbox With Torque Specifications
    GHH312709Courtesy of HONDA, U.S.A., INC.
