EPS Motor/Control Unit Removal and Installation: Removal
- 12 Volt Battery Terminal - Disconnect
- Driver's Dashboard Lower Cover - Remove
- EPS Motor/Control Unit - Remove

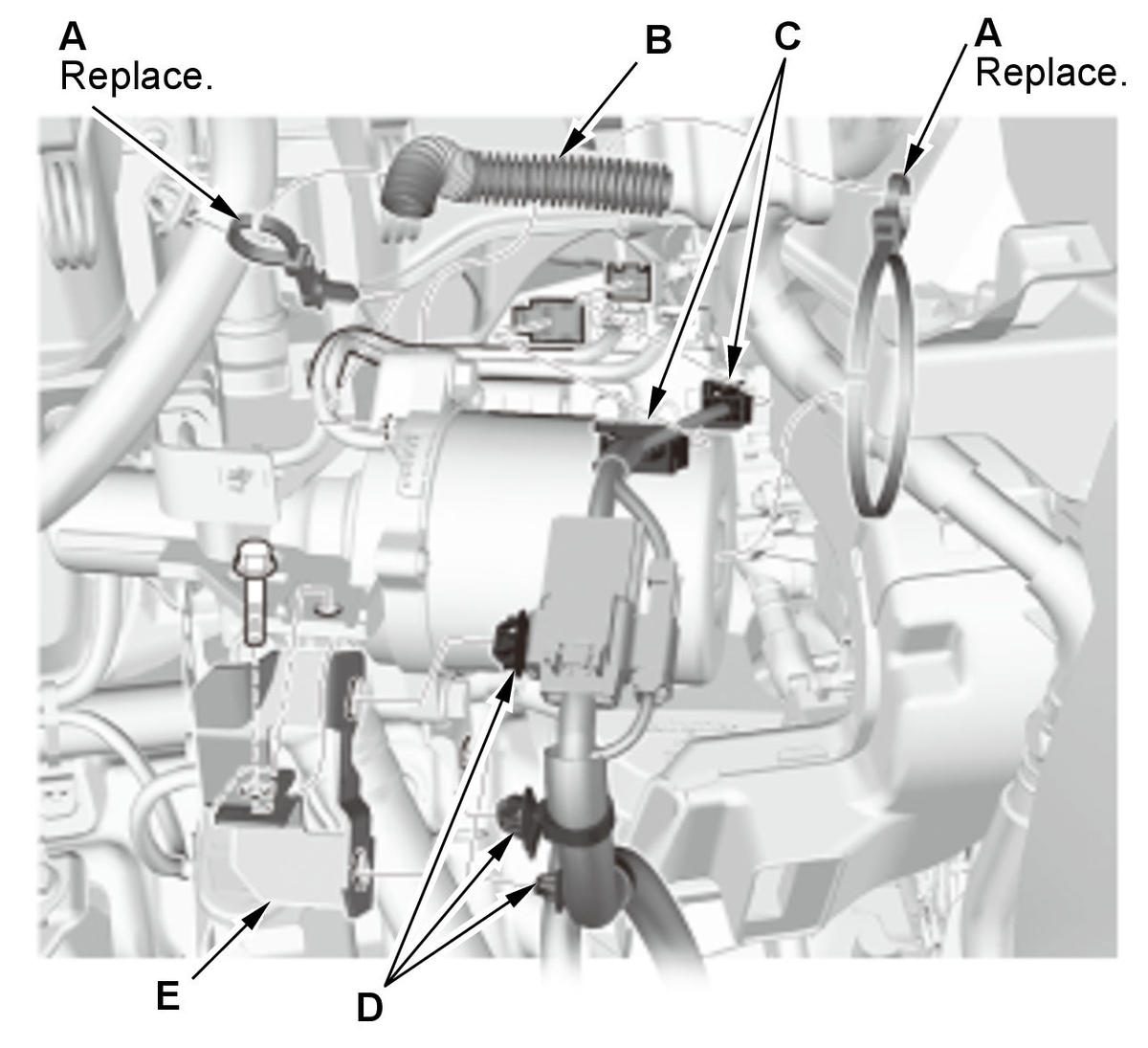

1. Remove the cable ties (A). NOTE:Cut the cable tie to remove.
2. Remove the tube (B).
3. Disconnect the connectors (C).
4. Remove the harness clips (D).
5. Remove the harness bracket (E).

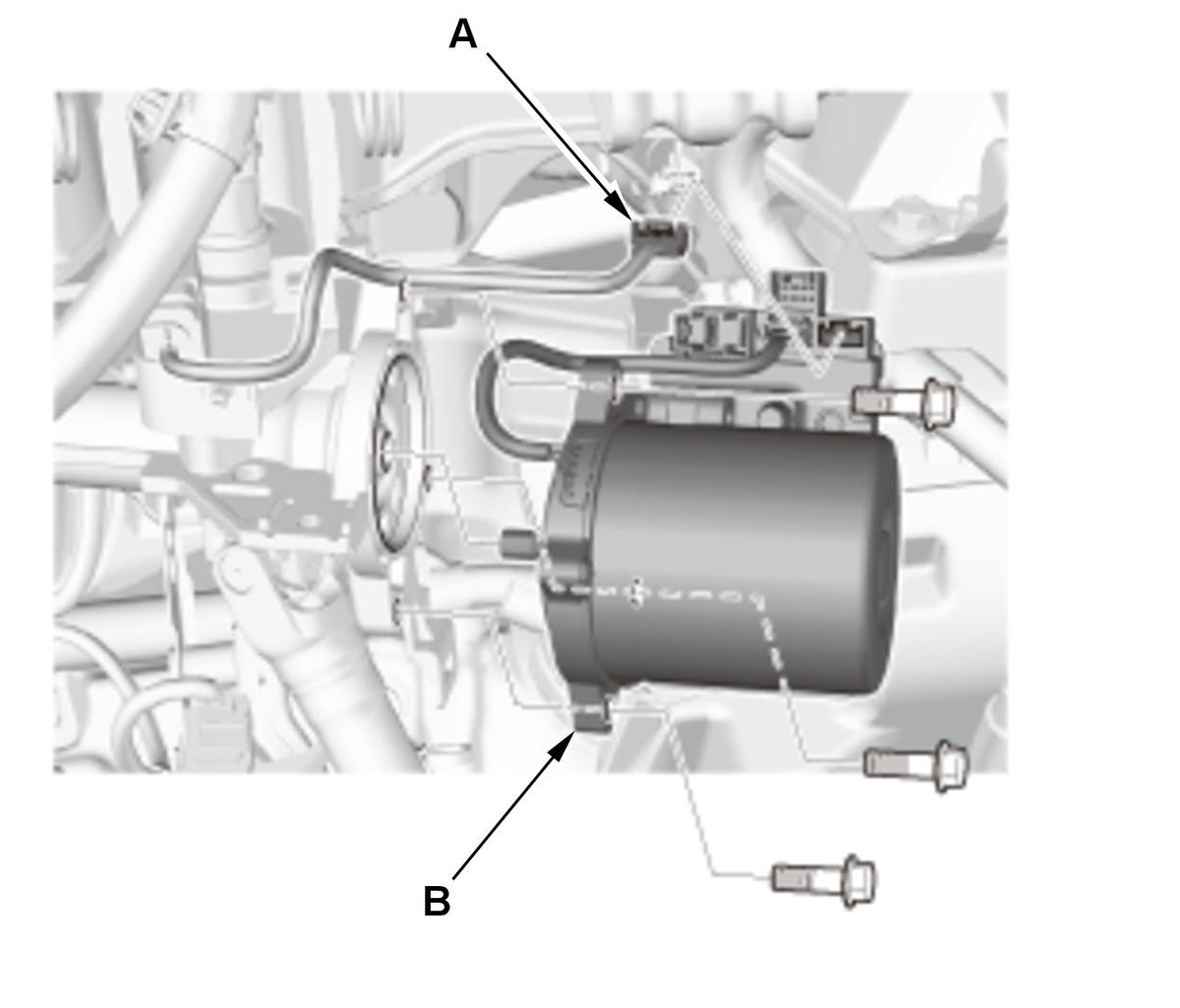

6. Disconnect the connector (A). 7. Remove the EPS motor/control unit (B).
