DTC P287A
DTC P287A: Dog Clutch F Stuck Engaged
General Description

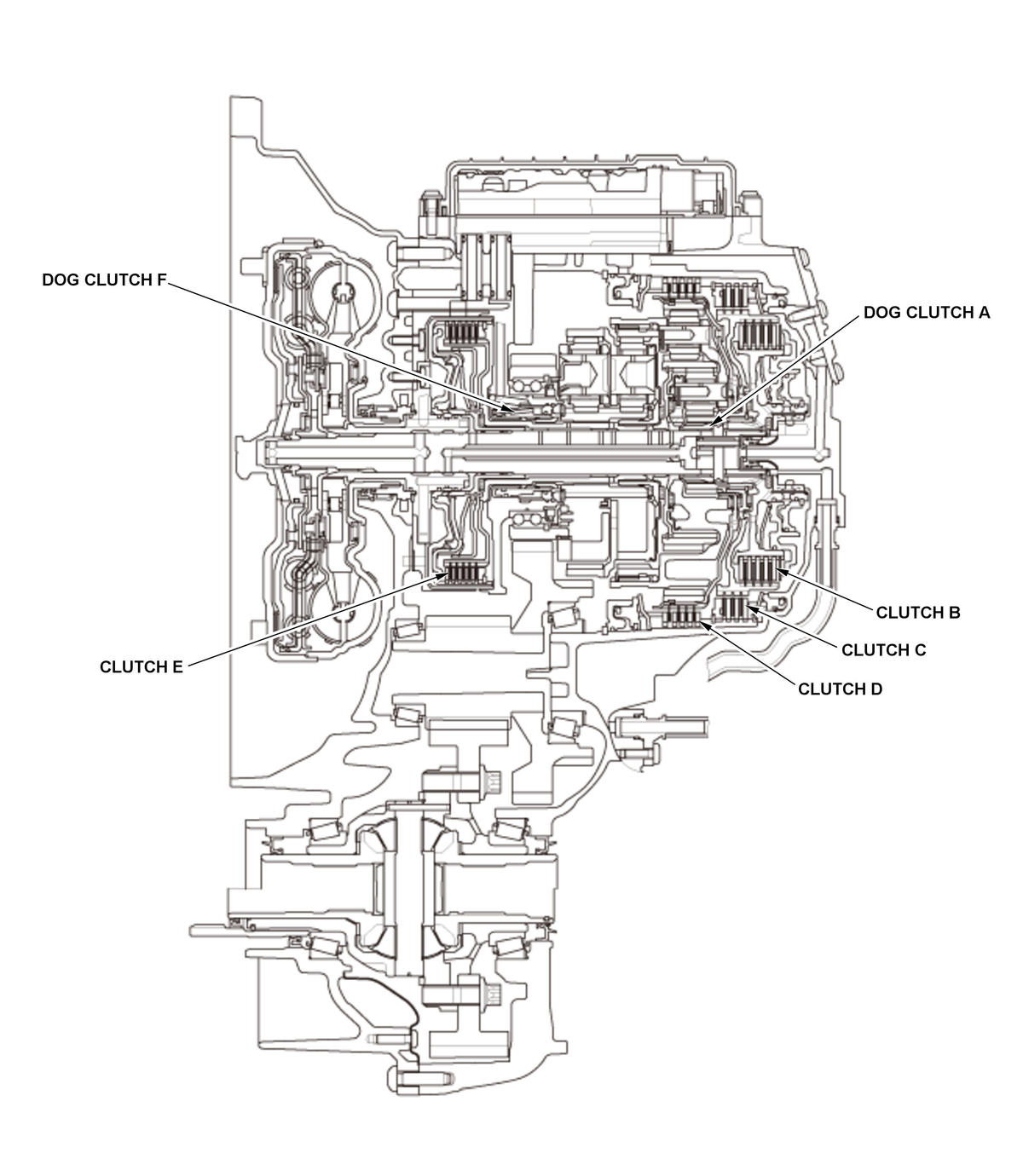

The transmission control module (TCM) monitors the conditions of dog clutch F while shifting which accompanies dog clutch F to disengage. If the speed difference between the input speed and output speed in the transmission is a specified value for a specified duration while shifting which accompanies dog clutch F to disengage, the TCM detects as stuck engaged malfunction of dog clutch F and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
*: MIL comes on at second drive cycle
| Sequence | None |
| Duration | 1 second or more |
| DTC Type | One drive cycle, MIL on*, A/T gear position indicator blinks |
*: MIL comes on at second drive cycle
Enable Conditions
| Condition | ||
|---|---|---|
| Vehicle | During drive | |
| Other | During shifting which accompanies dog clutch F to disengage | |
Malfunction Threshold
The speed difference between input speed and output speed multiplied by 4th gear ratio is 40 rpm or more for following duration depending on the ATF temperature.
| ATF temperature [ATF Temperature] (°F (°C)) | -22 (-30) | 14 (-10) | 32 (0) | 86 (30) | 122 (50) | 176 (80) |
| Duration (millisecond) | 20 | 20 | 20 | 15 | 10 | 10 |
[ ]: HDS Parameter
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Transmission internal failure
Confirmation Procedure
Operating Condition
- 1.
Start the engine.
- 2.
Drive the vehicle, and let the transmission shift through several gears.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, the A/T gear position indicator blinks and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the TCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on.
Conditions for clearing the DTC
The A/T gear position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
