DTC U0103
DTC U0103: Lost Communication with Shifter
General Description

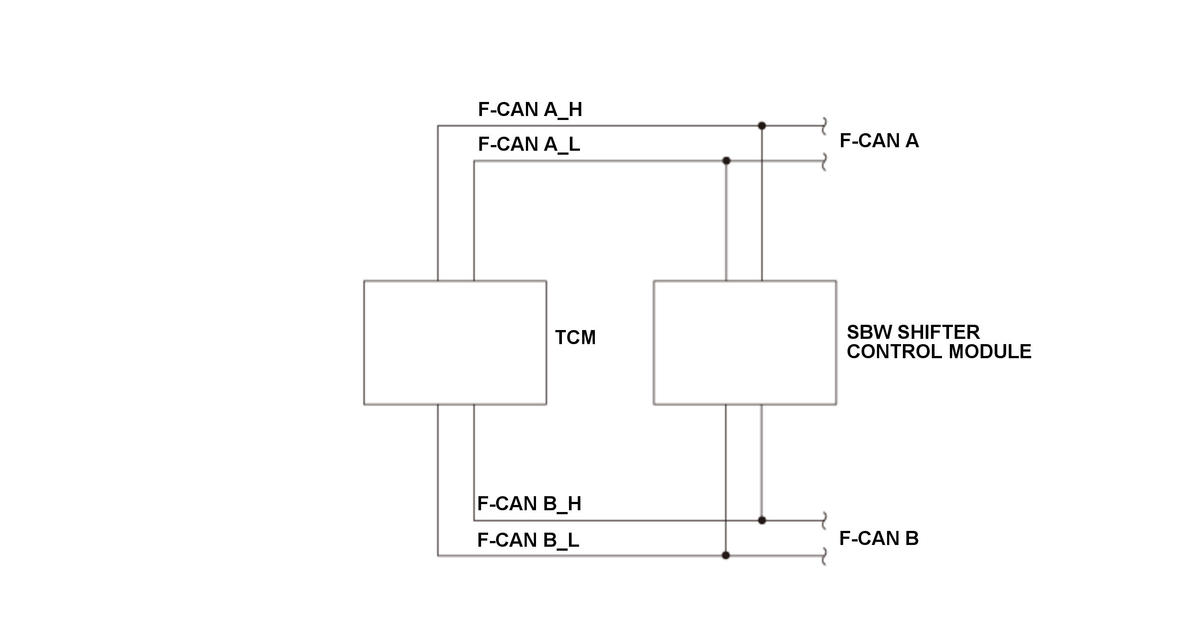

Without CAN gateway

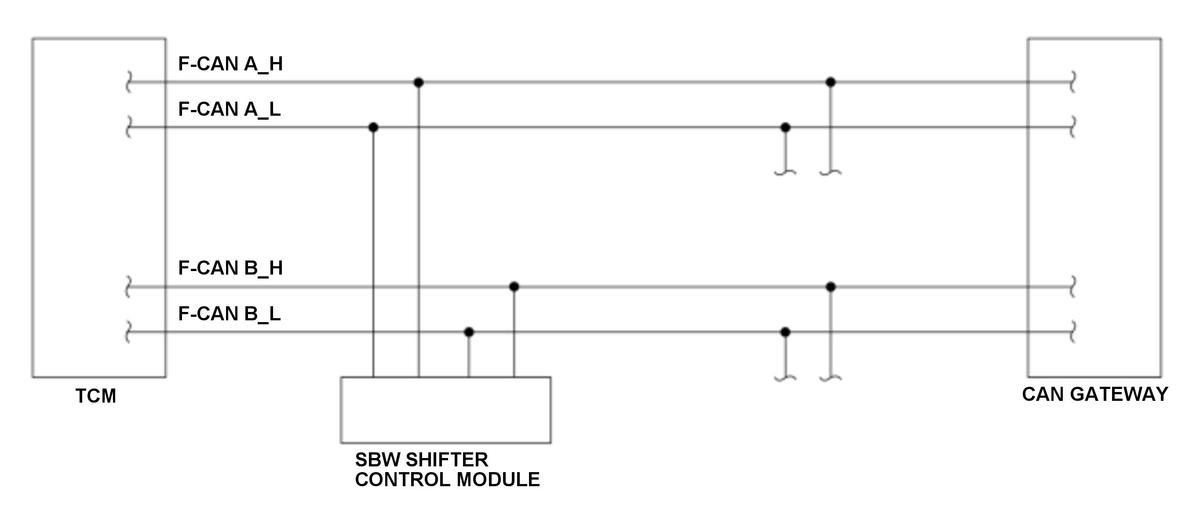

With CAN gateway
The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using F-CAN A and B signal lines. If the transmission control module (TCM) cannot receive the signal sent from the SBW shifter control module for a specified time, or if the received signal is abnormal for a specified duration, the TCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 1 second or more |
| DTC Type | One drive cycle, MIL off, A/T gear position indicator blinks |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [Battery Voltage] | 9 V | 16 V |
| Vehicle | ON mode | |
[ ]: HDS Parameter
Malfunction Threshold
Either of the conditions is met:
- The TCM cannot receive the signal sent from the SBW shifter control module at least 3 times.
- The TCM receives abnormal signal from the SBW shifter control module for at least 1 second.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- F-CAN circuit F-CAN A_H line open
- F-CAN circuit F-CAN A_L line open
- F-CAN circuit F-CAN B_H line open
- F-CAN circuit F-CAN B_L line open
- SBW shifter control module internal failure
- TCM internal failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the A/T gear position indicator blinks and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the TCM memory. The MIL does not come on.
Conditions for clearing the DTC
The A/T gear position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
