Torque Converter Housing Selector Control Shaft Bearing Replacement (6-Speed A/T): Notes

Special Tools Required

Image Description/Tool Number

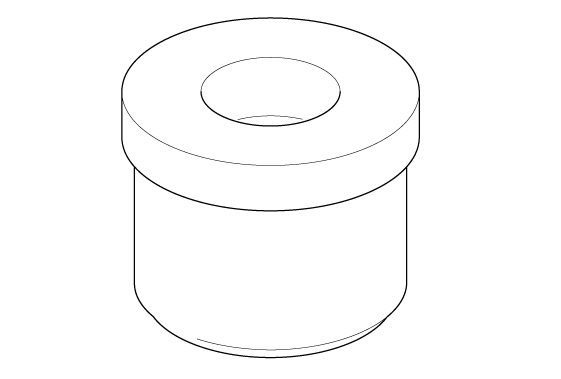

GHH166130Courtesy of HONDA, U.S.A., INC.
Bearing Driver Attachment, 32 x 35 mm 07746-0010100
GHH165442Courtesy of HONDA, U.S.A., INC.
Driver Handle, 15 x 135L 07749-0010000

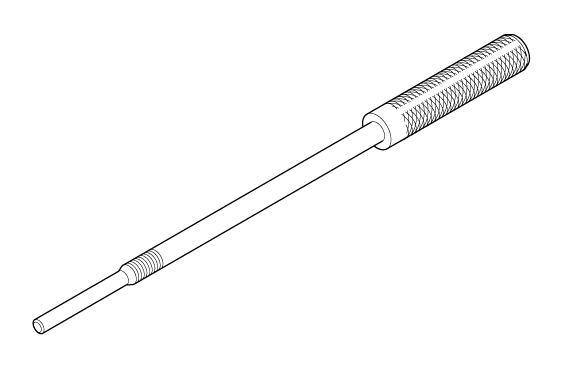

GHH166131Courtesy of HONDA, U.S.A., INC.
Remover Shaft, 15 mm 07936-KC10100

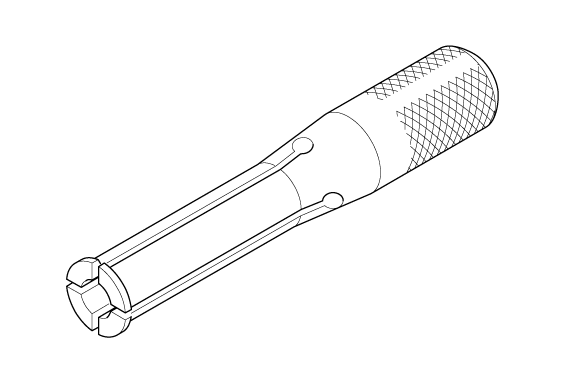

GHH166132Courtesy of HONDA, U.S.A., INC.
Remover Head, 15 mm 07936-KC10200
GHH166111Courtesy of HONDA, U.S.A., INC.
Slide Hammer 07936-371020A
