How To Start LANEWATCH Camera Aiming (2016 2017 2018): Procedure

1. Do the LaneWatch camera aiming target preparation - Go to: LaneWatch Camera Aiming (2016 2017 2018)

2. Turn the vehicle to the ON mode.

3. Press and hold the POWER (

Courtesy of HONDA, U.S.A., INC.

) button, the MENU button, and the DISPLAY MODE (

Courtesy of HONDA, U.S.A., INC.

) button until the Select Diagnosis Items menu screen is displayed.

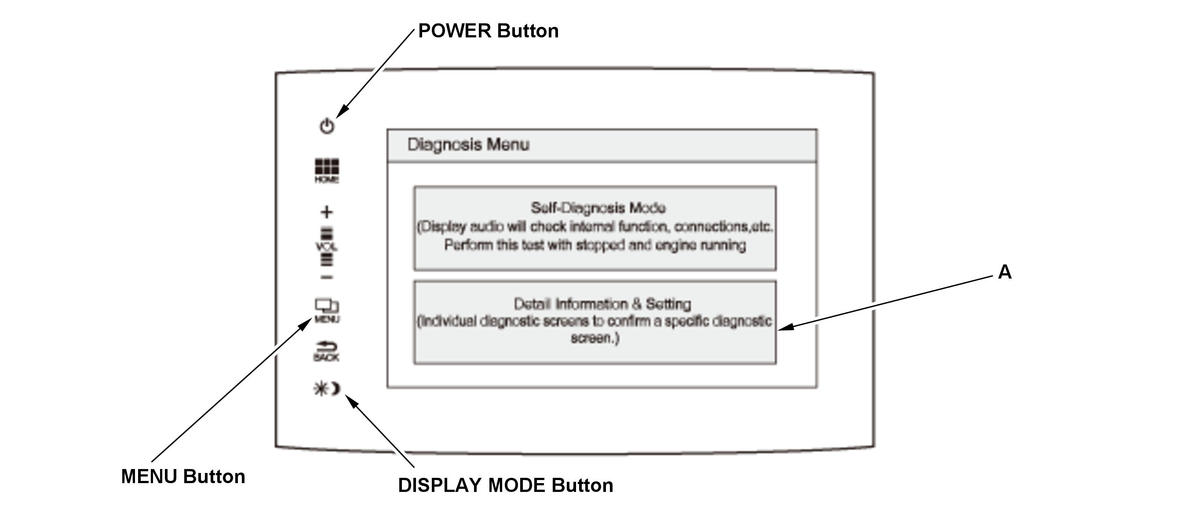

Displaying Select Diagnosis Items Menu Screen

Courtesy of HONDA, U.S.A., INC.

4. When the Select Diagnosis Items menu appears, select the Detail Information and Setting (A).

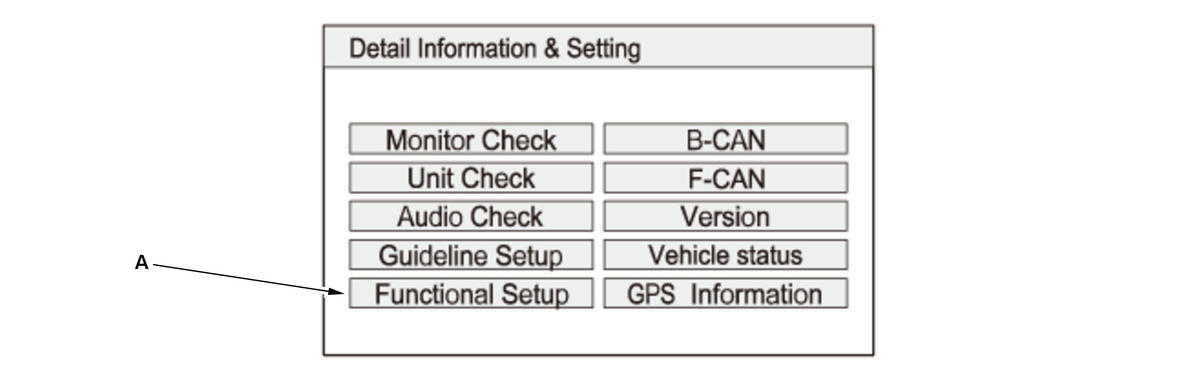

5. Select the Functional Setup icon (A).

Courtesy of HONDA, U.S.A., INC.

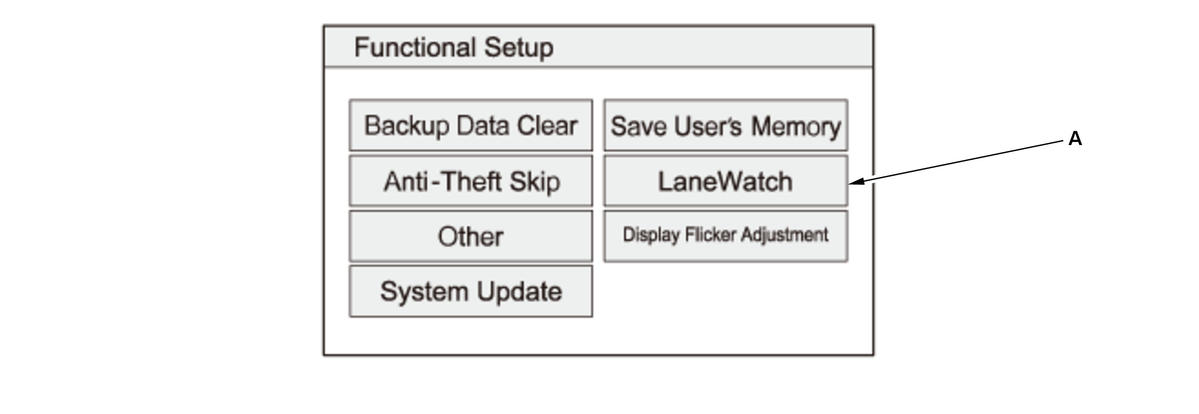

6. Select the LaneWatch icon (A).

Courtesy of HONDA, U.S.A., INC.

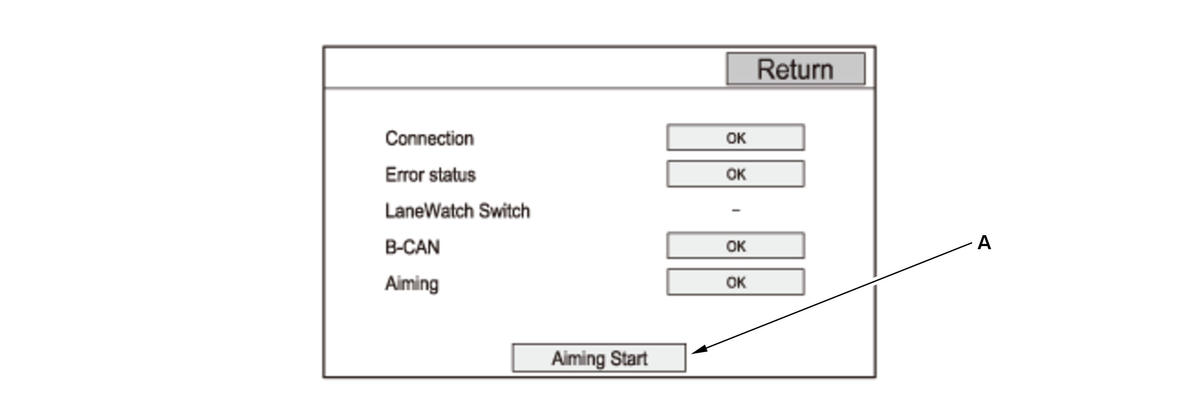

7. Select the Aiming Start icon (A).

Courtesy of HONDA, U.S.A., INC.
