Navigation System Description - System Diagram (2017 2018)

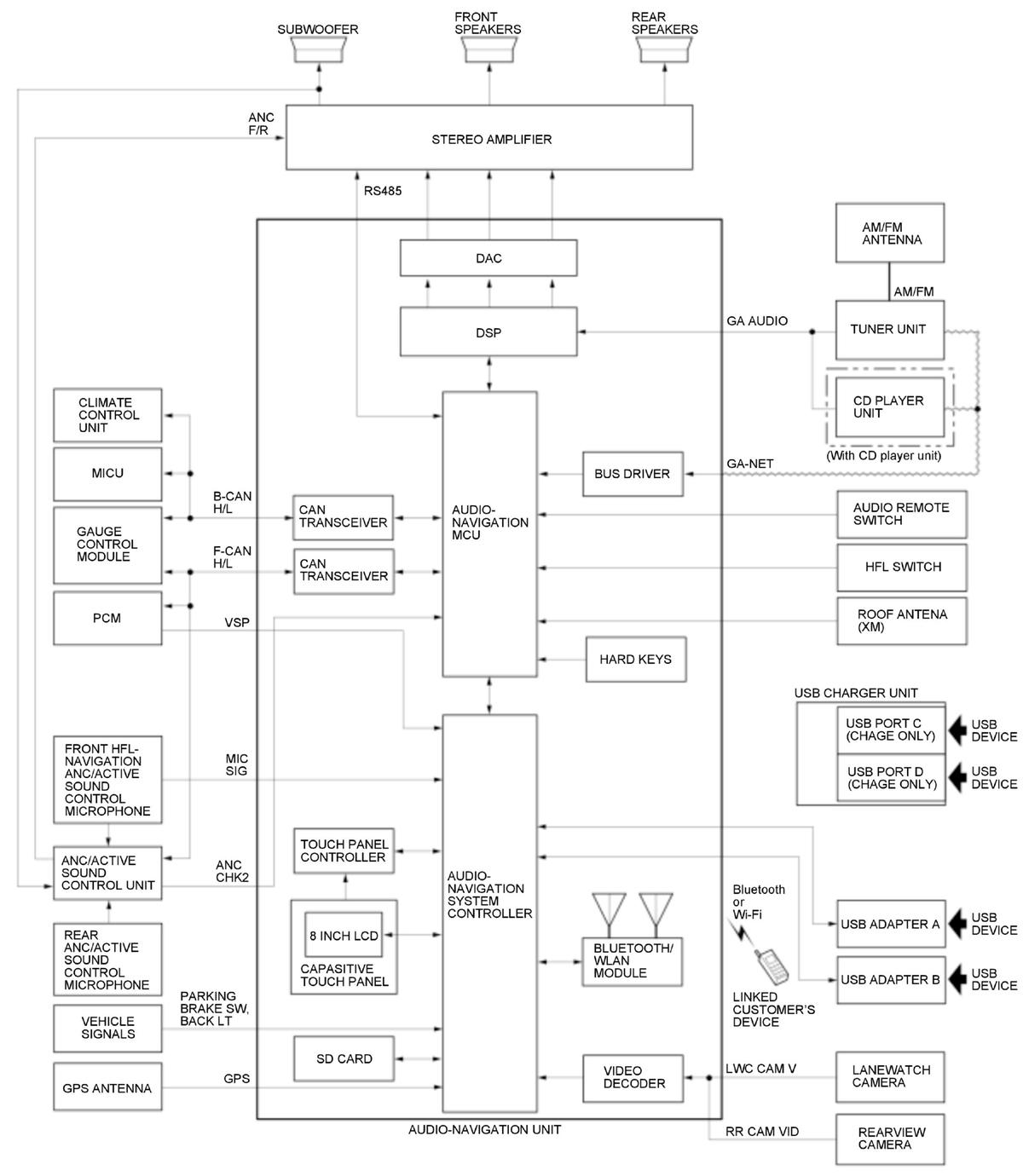

With Stereo Amplifier
Courtesy of HONDA, U.S.A., INC.

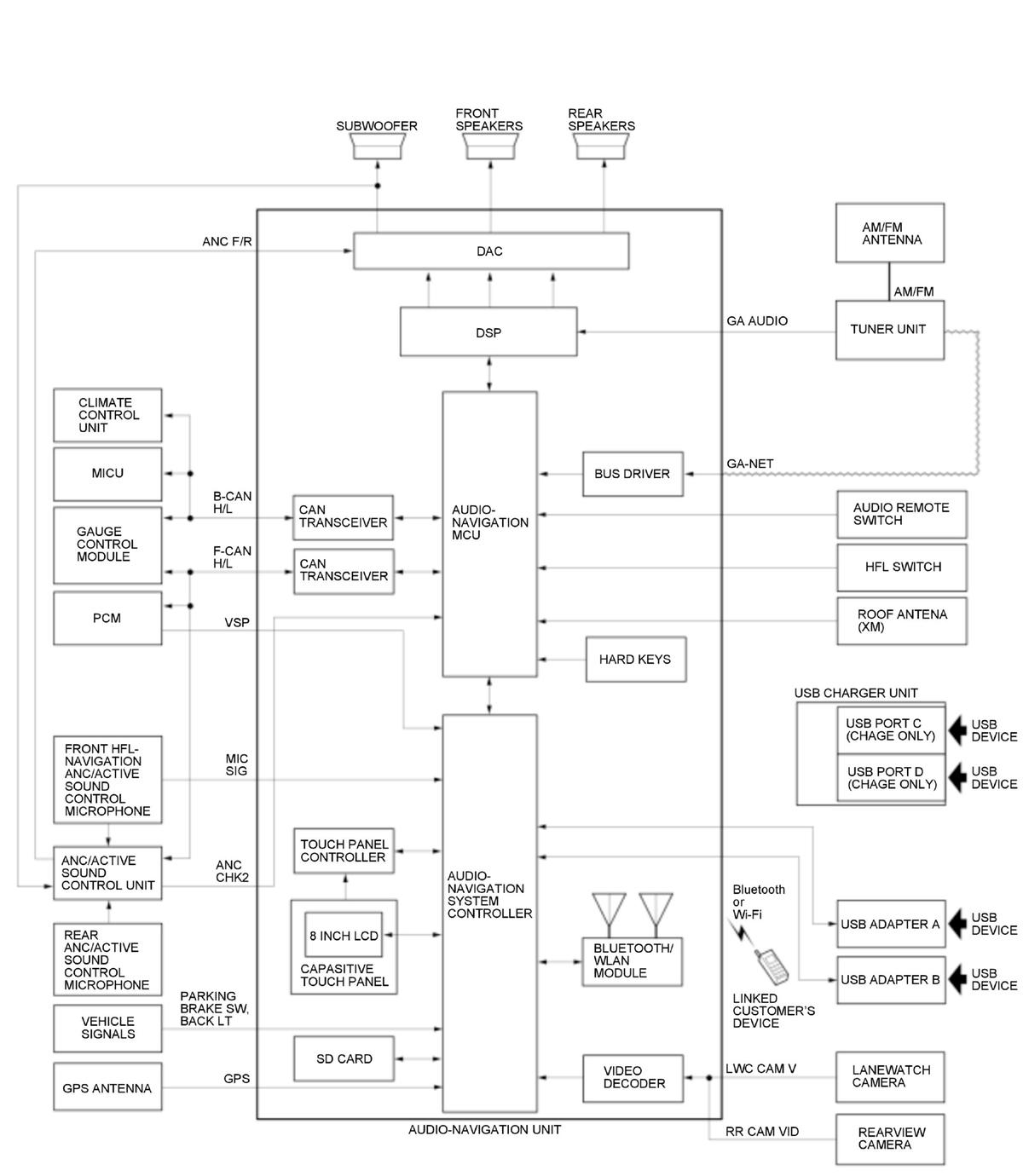

Without Stereo Amplifier
Courtesy of HONDA, U.S.A., INC.

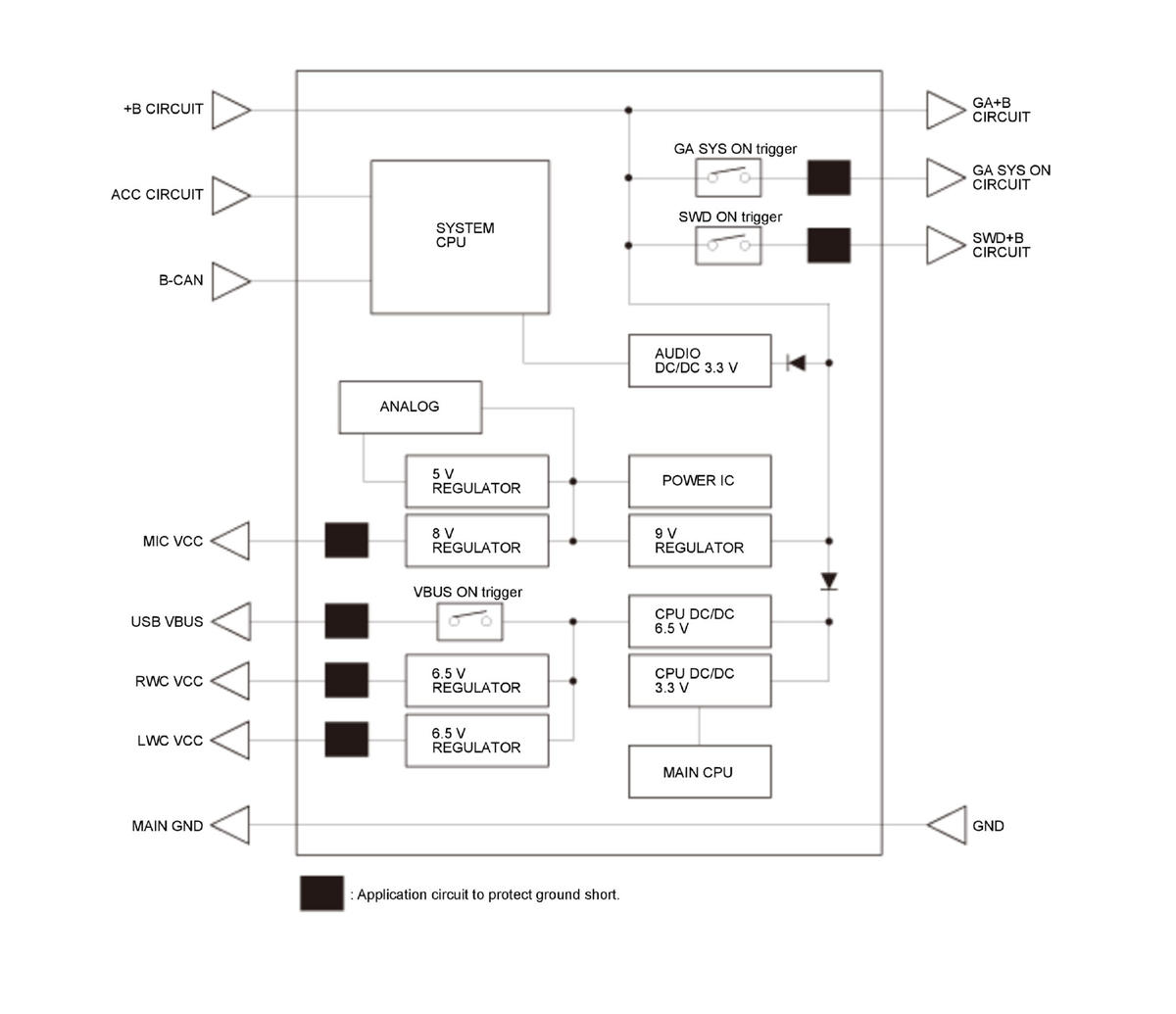

Power Supply Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
