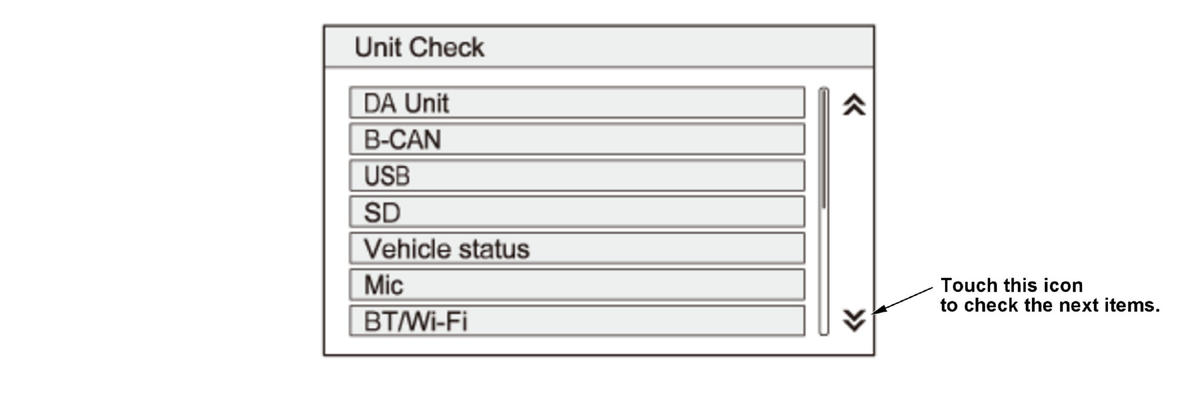

Unit Check (Quick Check)

These screens allow you to diagnose the audio-navigation unit and related units. Some of the tests and screens that are displayed under the Unit Check are same as the checks listed under the Detail Information and Setting.

To start the test, select the item you want to check.

NOTE: These items describe in indication order.

DA Unit
F-CAN
B-CAN
USB
SD
Vehicle Status
Mic
BT/Wi-Fi
Hard Key
Error History
Rear Wide Camera
BSI-CTM (with BSI radar unit)
LaneWatch (with LaneWatch)
Remote tuner
AMP (with stereo amplifier)
HD Radio
CD (with CD player unit)
A/C
SXM
GPS Antenna
Yaw Sensor
Telematics Diag

Courtesy of HONDA, U.S.A., INC.

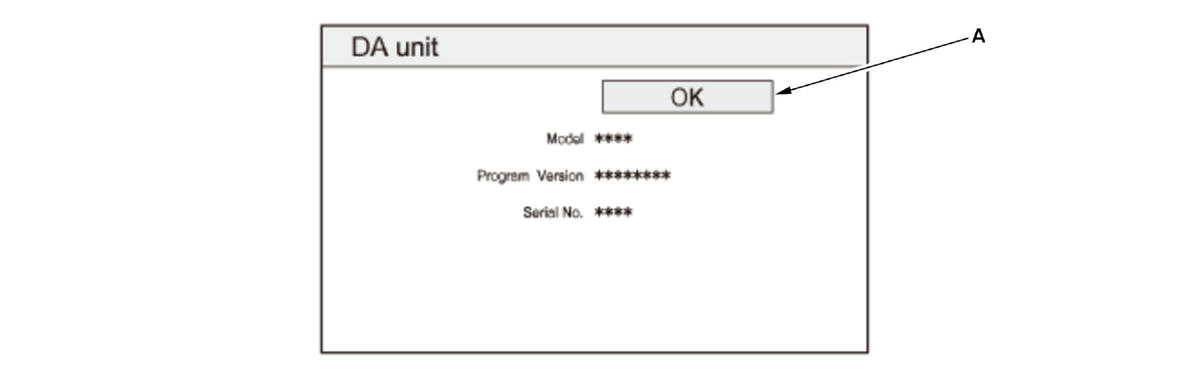

DA Unit

This diagnosis checks for problems in the audio-navigation unit. When you start this diagnosis, the audio-navigation unit may freeze or delay up to a minute while the diagnosis runs.

If the icon (A) NG, replace the audio-navigation unit .
Model: Displays the vehicle's model name.
Program Version: Displays program number of the audio-navigation unit.
Serial Number: Displays the audio-navigation unit serial number. That should be the same as the serial number found on the upper side of the audio-navigation unit.

Courtesy of HONDA, U.S.A., INC.

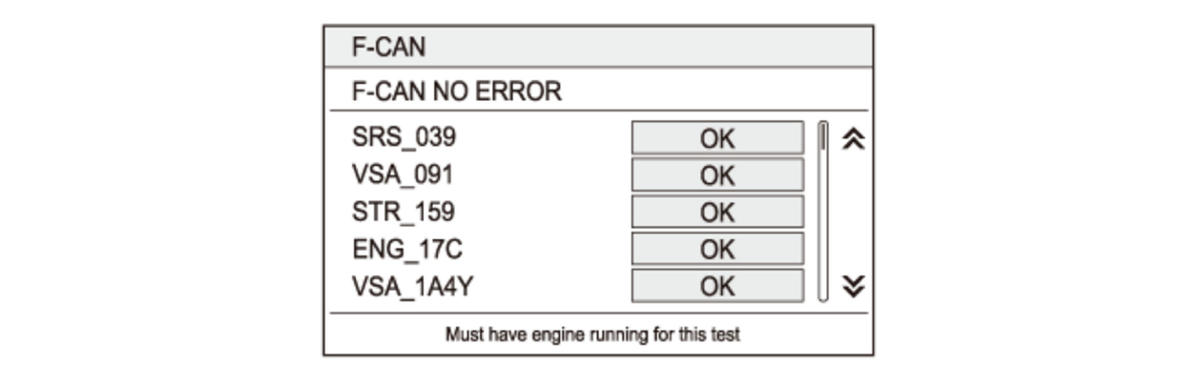

F-CAN

NOTE: This diagnosis must have the engine running.

This diagnosis checks whether the audio-navigation unit has received specific F-CAN data. If F-CAN shows NO ERROR, an error is not detected between the F-CAN bus and the audio-navigation unit.

If F-CAN shows RX ERROR, replace the audio-navigation unit.
If F-CAN shows TIME OUT, There is a possibility that some items are NG (red icon). When all the items from each transmitting unit is NG, check for F-CAN DTCs with the HDS. If DTCs not detected, check for continuity in the F-CAN lines between the audio-navigation unit and the transmitting unit.

NOTE: When the item is a variation equipment, the item shows NG (yellow icon), and it is not reflected in diagnosis.

Courtesy of HONDA, U.S.A., INC.

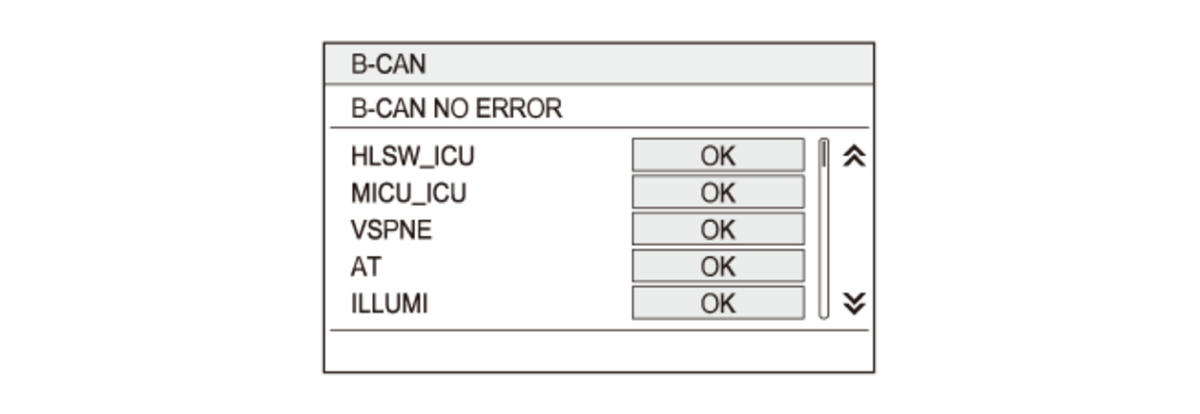

B-CAN

NOTE: This diagnosis must have the engine running.

This diagnosis checks whether the audio-navigation unit has received specific B-CAN data. If B-CAN shows NO ERROR, an error is not detected between the B-CAN bus and the audio-navigation unit.

If B-CAN shows RX ERROR, replace the audio-navigation unit .
If B-CAN shows TIME OUT, There is a possibility that some items are NG (red icon). When all the items from each transmitting unit is NG, check for B-CAN DTCs with the HDS. If DTCs not detected, check for continuity in the B-CAN lines between the audio-navigation unit and the transmitting unit.

NOTE: When the item is a variation equipment, the item shows NG (yellow icon), and it is not reflected in diagnosis.

Courtesy of HONDA, U.S.A., INC.

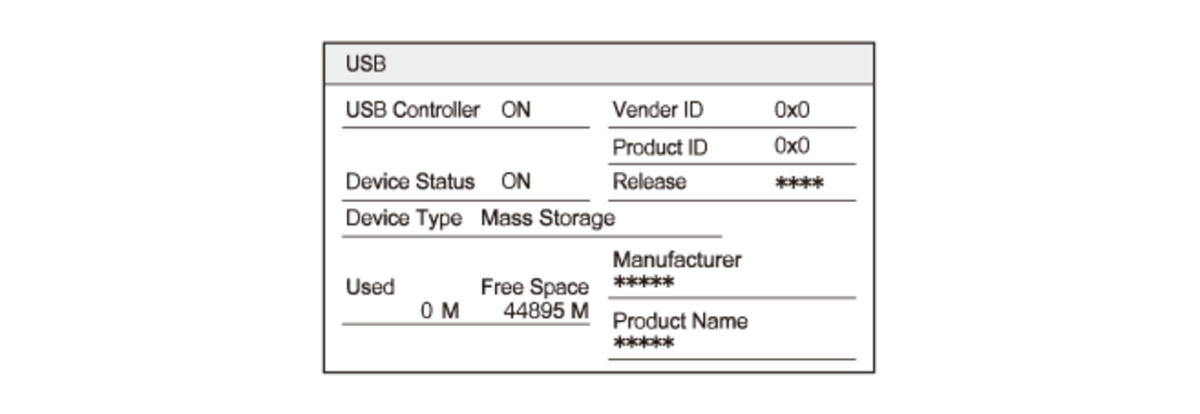

USB

This diagnosis displays the USB device status that is connected to the audio-navigation unit.

If the USB memory device is connected to the USB port (A, B, or C), the screen displays the USB controller status, the Bus power status, and the device status.

When you connect a USB mass storage device, you can see the capacity used and the amount of free space available.

Courtesy of HONDA, U.S.A., INC.

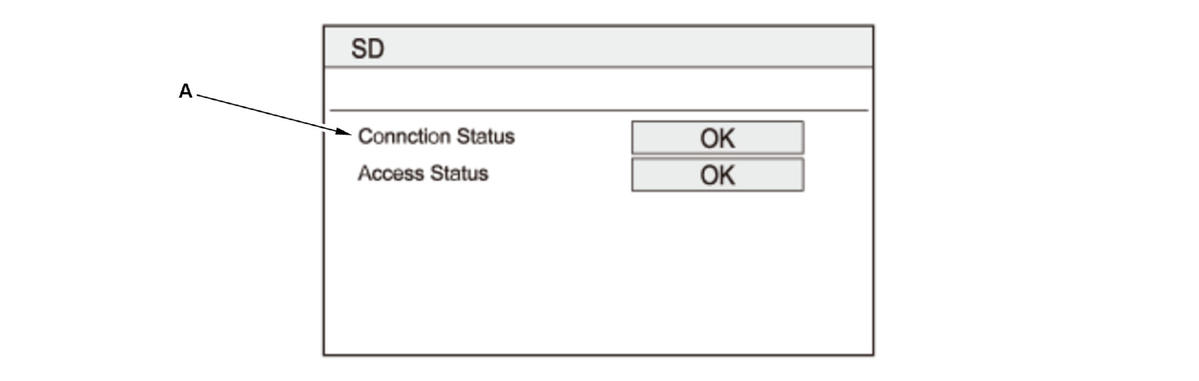

This diagnosis checks the SD card module status.

Connection Status (A): Displays the result of the insert status about the SD card module (OK; Inserted, NG; Not Inserted).
Access Status: Displays the result of the access to the SD card module (OK/NG). If NG, replace the SD card , and recheck.

Courtesy of HONDA, U.S.A., INC.

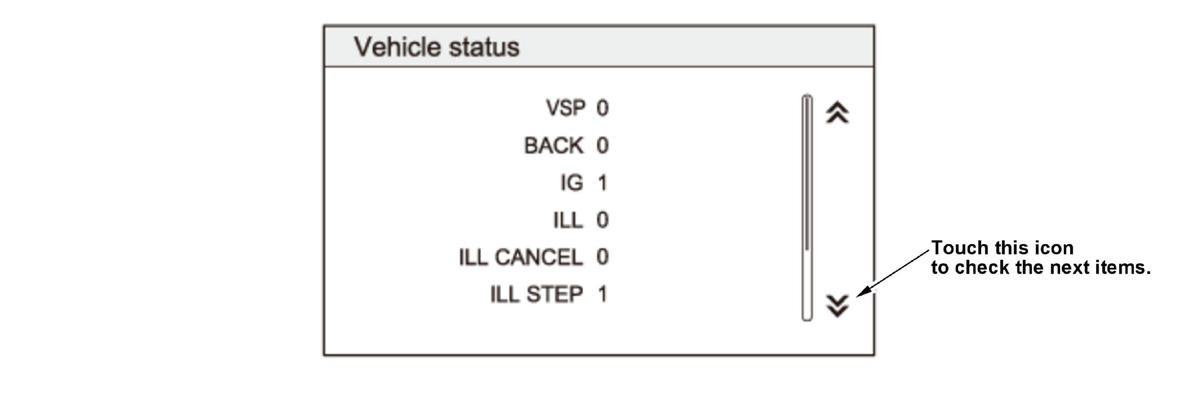

Vehicle Status

Use this screen to confirm that the audio-navigation unit is properly receiving input signals. The displayed value changes each time according to the state of input signal.

NOTE: These items describe in indication order.

Item	Input	Description
VSP	VSP line	1: When the vehicle speed pulse is received from the PCM 0: When the vehicle speed pulse is not received from the PCM
BACK	BACK LT line	1: When the transmission is shifted to R position/mode 0: When the transmission is shifted to any position/mode other than R position/mode
IG	B-CAN lines	1: When the vehicle is in ON mode 0: When vehicle is in ACCESSORY mode
ILL	B-CAN lines	1: When parking lights, or headlights are on 0: When parking lights, or headlights are off
ILL CANCEL	B-CAN lines	1: When the dashlights brightness control knob is more than 90 % brightness with the parking lights turned on 0: When the dashlights brightness control knob is less than 90 % brightness with the parking lights turned on
ILL STEP	B-CAN lines	With the parking lights on, use the dashlights brightness control knob to dim and brighten the gauge. The value changes from 1 (max low) to 22 (max high).
Speed	B-CAN lines	This item indicates the vehicle speed (km/h).
PARK-VIDEO	PARKING BRAKE SW line	1: When the parking brake is applied 0: When the parking brake is not applied
PARK	B-CAN lines	1: When the parking brake is applied 0: When the parking brake is not applied
Current received VIN	B-CAN lines	This item indicates the VIN that received from the PCM.
Initial registered VIN	B-CAN lines	This item indicates the initial registration VIN that is saved in the audio-navigation unit.
Last registered VIN	B-CAN lines	This item indicates the additional registration VIN when the audio-navigation unit is substituted into another vehicle, or when a PCM is substituted or replaced into this vehicle.

Courtesy of HONDA, U.S.A., INC.

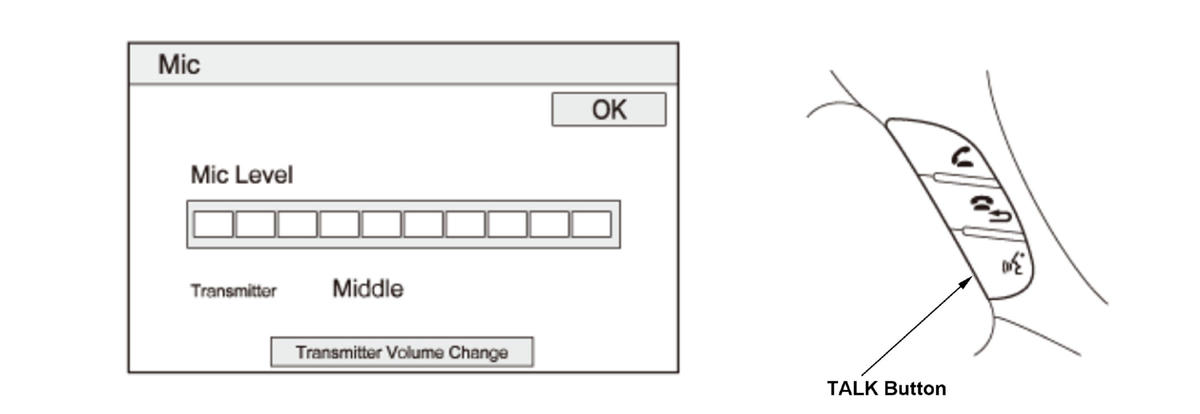

Mic

This diagnosis allows you to test the microphone. To properly check the microphones, make sure you are sitting in the driver's seat.

NOTE: Before this diagnosis, check the response of the TALK button on the HFL switch by the Hard Key diagnosis.

Press the TALK button, and within 5 seconds in a normal voice say "testing" toward the microphone in the roof console. The Mic Level indicator on the screen should momentarily turn green. The test is set to OK by indicating green more than 6 steps. If there is no Mic Level movement when you speak, Go to HFL does not respond troubleshooting .

Courtesy of HONDA, U.S.A., INC.

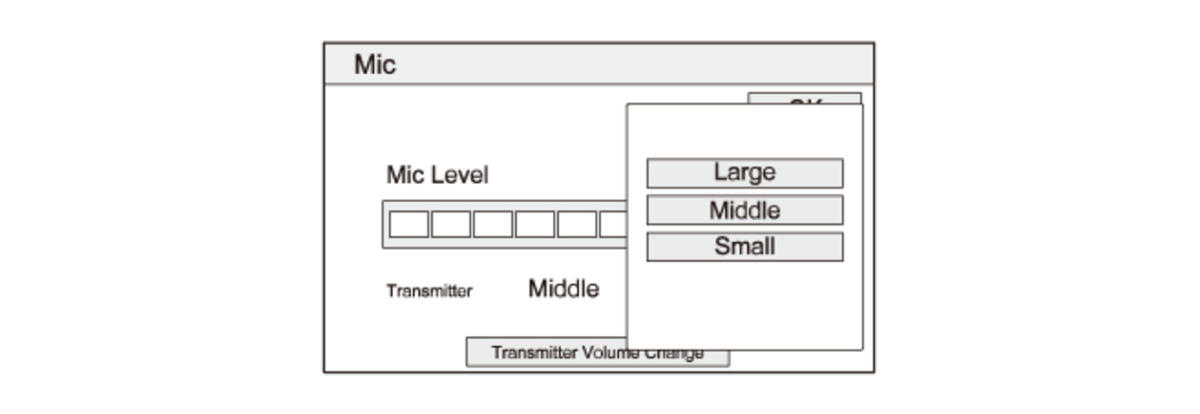

If you select the Transmitter Volume Change icon, the transmitter volume can be selected from three selections (Large, Middle, Small).

Courtesy of HONDA, U.S.A., INC.

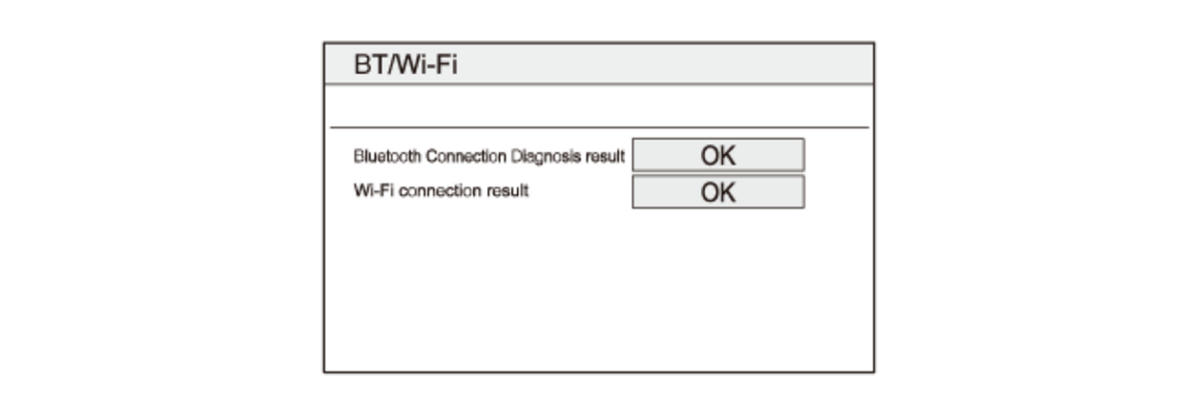

BT/Wi-Fi

This diagnosis allows you to independently test the Bluetooth ® module and the Wi-Fi module. The Bluetooth ® module and the Wi-Fi module are built into the audio panel. If NG, replace the audio panel unit .

Courtesy of HONDA, U.S.A., INC.

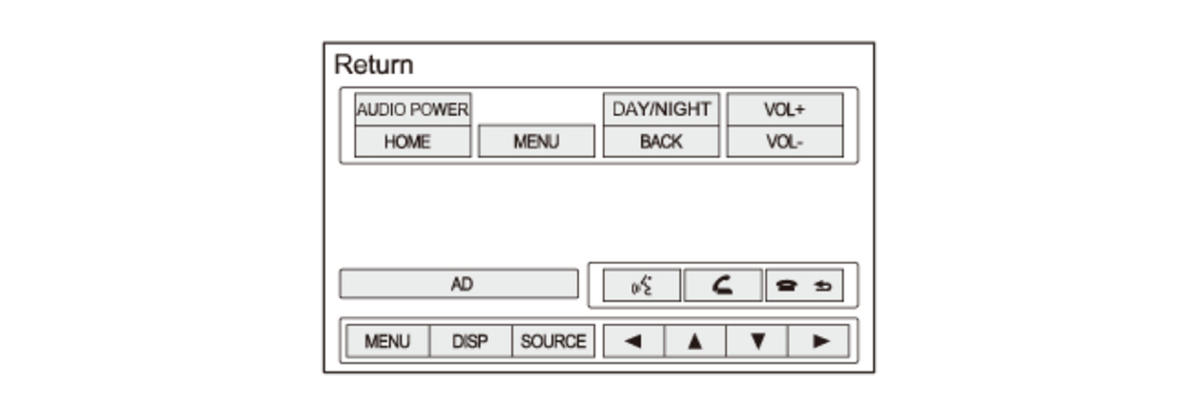

Hard Key

This diagnosis checks the audio-navigation unit face switches, the audio remote switch, and the HFL switch.

To complete the test, press each buttons. As each function is tested, the corresponding button on the display should highlight.

If any button of the audio-navigation unit does not respond, replace the audio panel or the audio-navigation unit .
If any button of the audio remote switch does not respond, do the audio remote switch test .
If any button of the HFL switch does not respond, do the HFL switch test .

Courtesy of HONDA, U.S.A., INC.

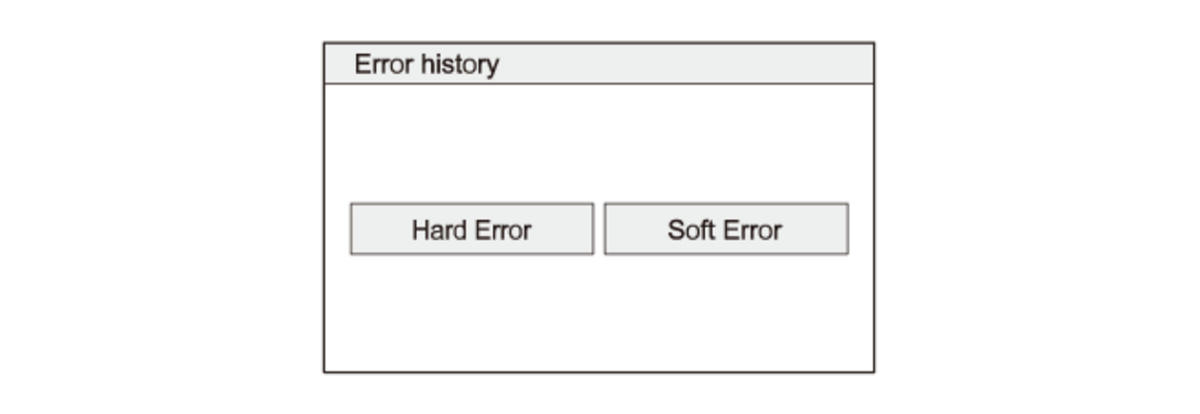

Error History

If you select Hard Error or Soft Error, you can see the error information. Refer to How to Check for Error History to use this diagnosis .

Courtesy of HONDA, U.S.A., INC.

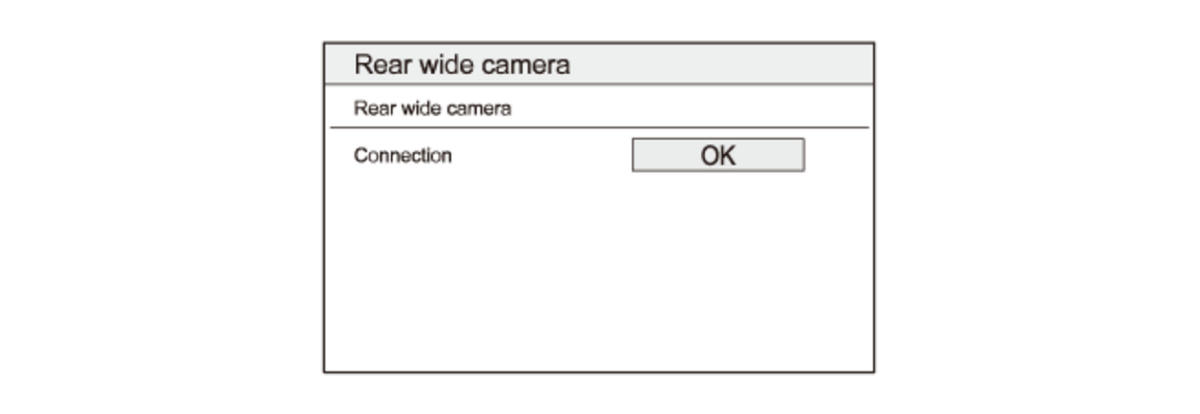

Rear Wide Camera

This diagnosis checks the rearview camera connection.

If Connection shows NG, check for hard error codes .
If Connection shows OK, long press the MENU button to display the rearview camera image. To return to the previous screen, long press the MENU button again.

Courtesy of HONDA, U.S.A., INC.

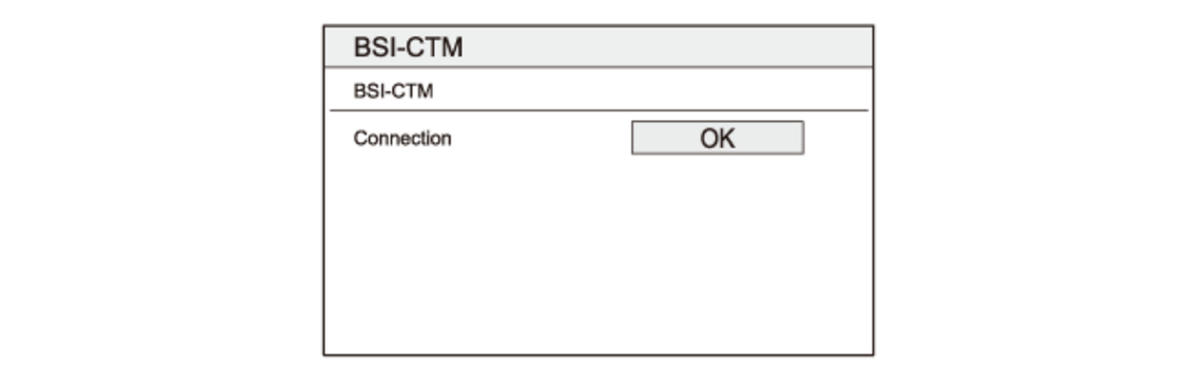

BSI-CTM

This diagnosis checks the BSI radar unit connection.

If Connection shows NG, go to Blind Spot Information System/Cross Traffic Monitor troubleshooting.

Courtesy of HONDA, U.S.A., INC.

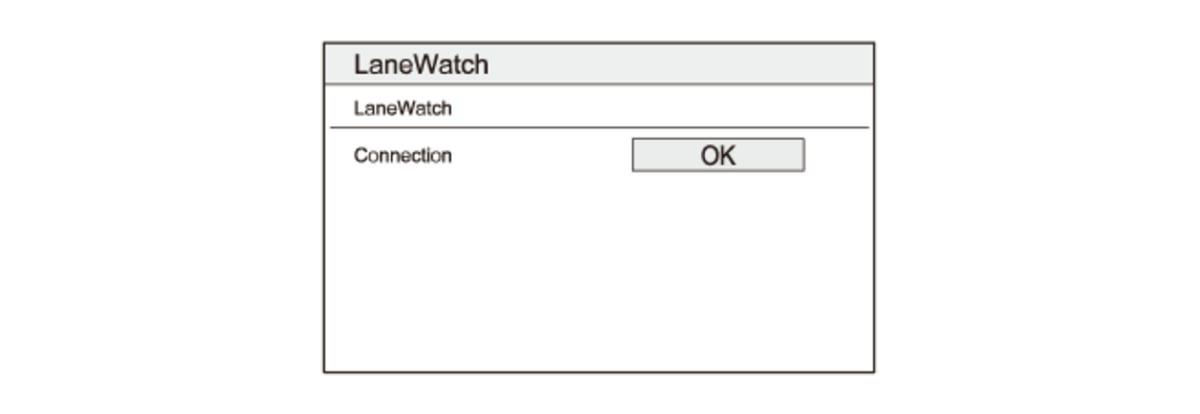

LaneWatch

This diagnosis checks the LaneWatch camera connection.

If Connection shows NG, check for hard error codes .
If Connection shows OK, press the MENU button to display the LaneWatch camera image. To return to the previous screen, press the MENU button again.

Courtesy of HONDA, U.S.A., INC.

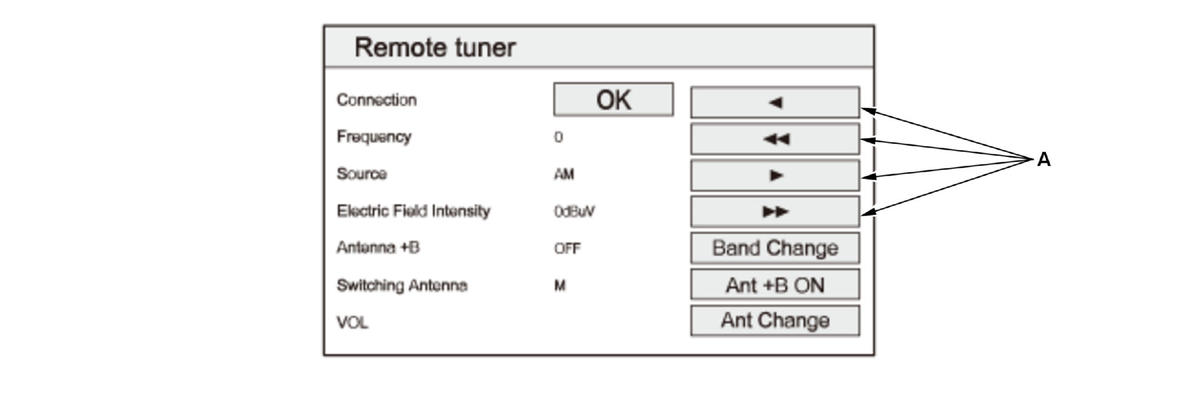

Remote Tuner

This diagnosis displays the external radio tuner (tuner unit) status.

If Connection shows NG, check for hard error codes .
Frequency can be changed by selecting each icon (A).
Source can be changed in this order: AM->FM by selecting the Band Change icon.
Electric Field Intensity displays radio reception sensitivity (dBμV).
Antenna +B: Changes the AM/FM antenna power status ON or OFF.
Switching Antenna: If the vehicle has diversity antenna, you can select the radio antenna function from M (Main), S (Sub), or P (Diversity).
VOL: Displays the current volume level.

Courtesy of HONDA, U.S.A., INC.

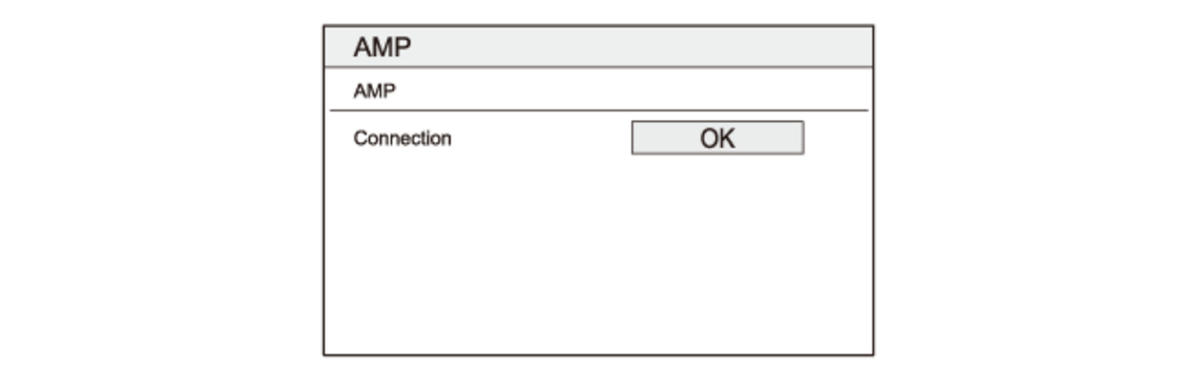

AMP

This diagnosis checks the stereo amplifier connection.

If Connection shows NG, go to No sound is heard from the speaker(s) (display is normal) troubleshooting .

Courtesy of HONDA, U.S.A., INC.

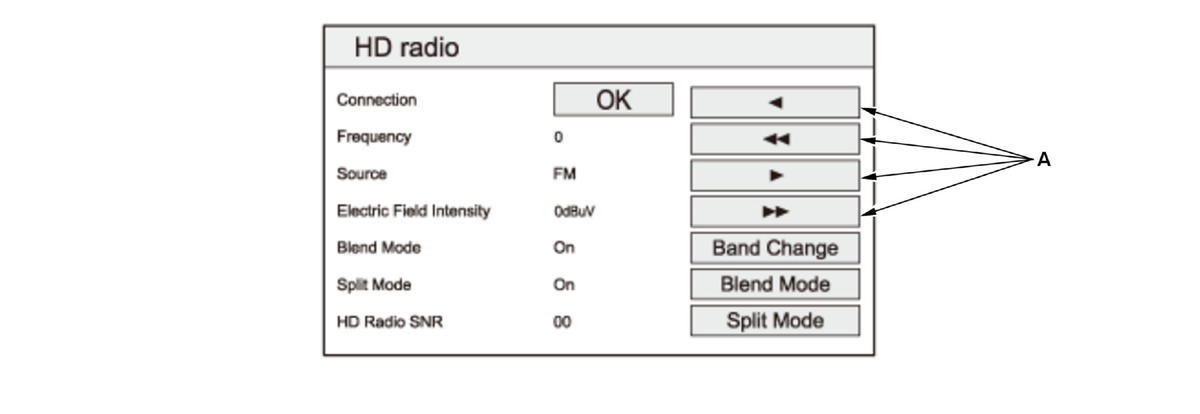

HD Radio

This diagnosis displays the external radio tuner (tuner unit) status.

If Connection shows NG, check for hard error codes .
Frequency can be changed by selecting each icon (A).
Source can be changed in this order: AM->FM by selecting the Band Change icon.
Electric Field Intensity displays radio reception sensitivity (dBμV).

Courtesy of HONDA, U.S.A., INC.

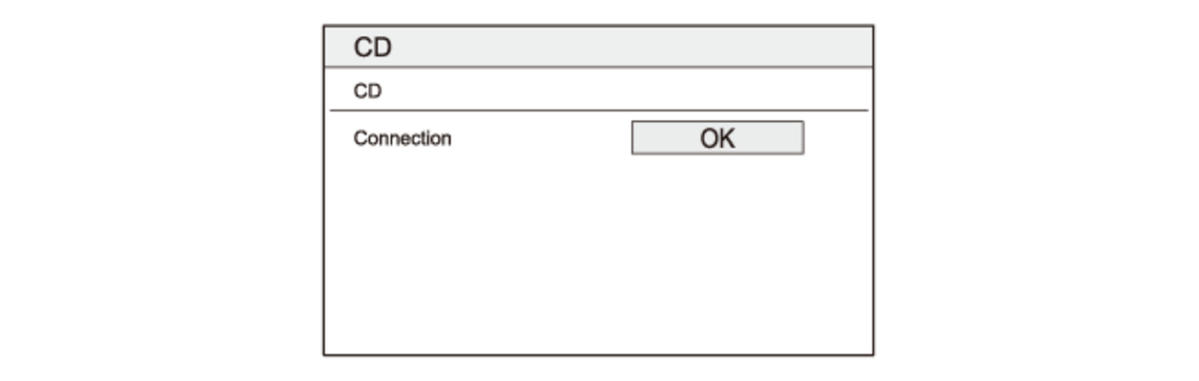

This diagnosis checks the external CD player unit connection.

If Connection shows NG, check for hard error codes .

Courtesy of HONDA, U.S.A., INC.

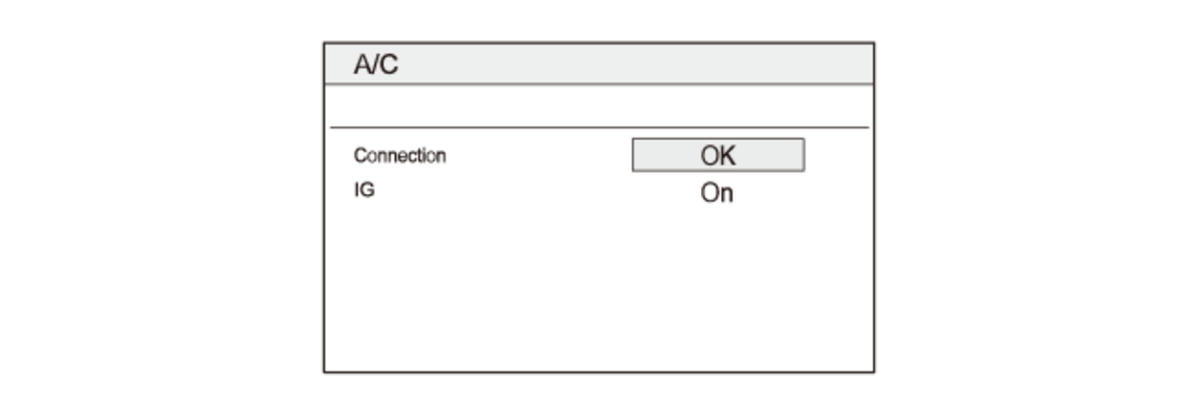

A/C

This diagnosis detects if the vehicle is in the ON mode using information provided over the F-CAN bus, then it tests the climate control signal via the B-CAN bus between the audio-navigation unit and the climate control unit. Make sure the engine is running for this test.

If Connection shows NG, check for hard error codes .

Courtesy of HONDA, U.S.A., INC.

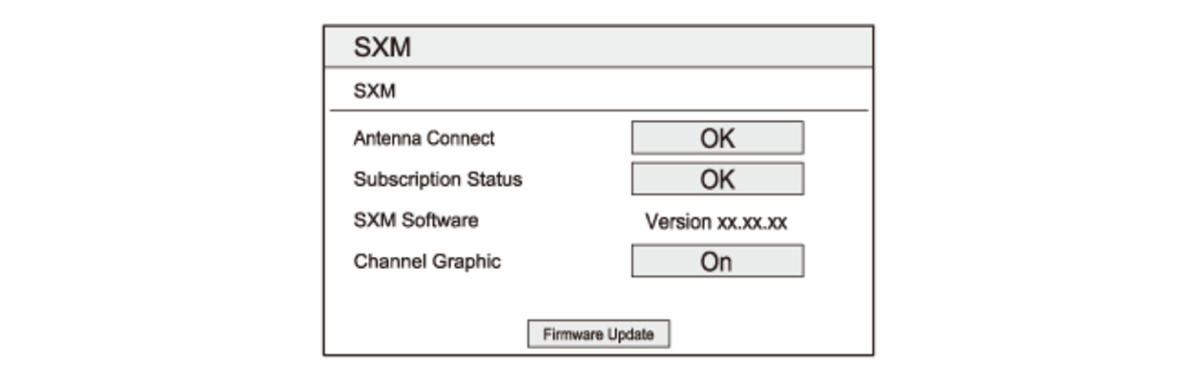

SXM

This diagnosis displays the SXM status.

If Antenna Connection shows NG, the roof antenna (XM) may be failure. Check for hard error codes .
Subscription Status: Displays OK or NG, which stands for the status of the SXM contract.
SXM Software: Displays the program number of the SXM software version.
Channel Graphic: Changes the Channel Graphic ON or OFF.

Courtesy of HONDA, U.S.A., INC.

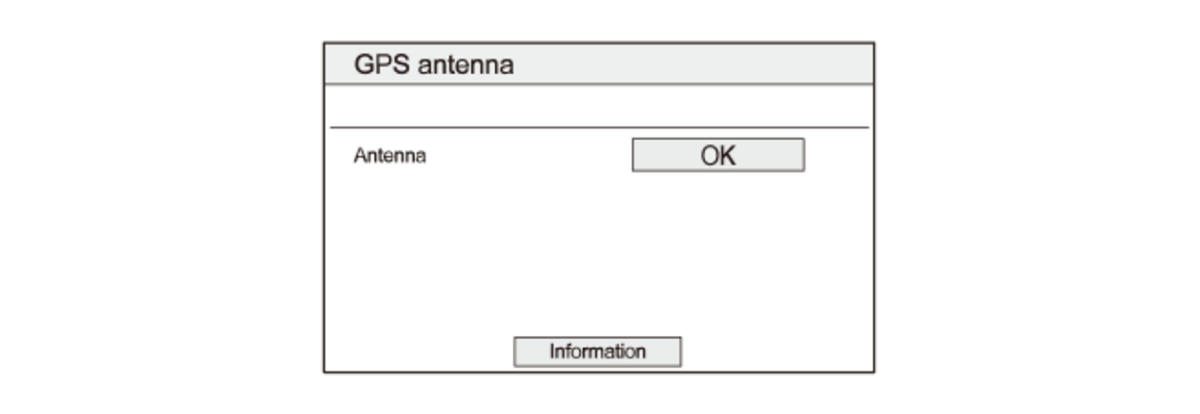

GPS Antenna

This diagnosis checks the GPS antenna connection.

If Antenna shows NG, the GPS antenna may be failure. Check for hard error codes .

Select Information to see the GPS satellite details.

Courtesy of HONDA, U.S.A., INC.

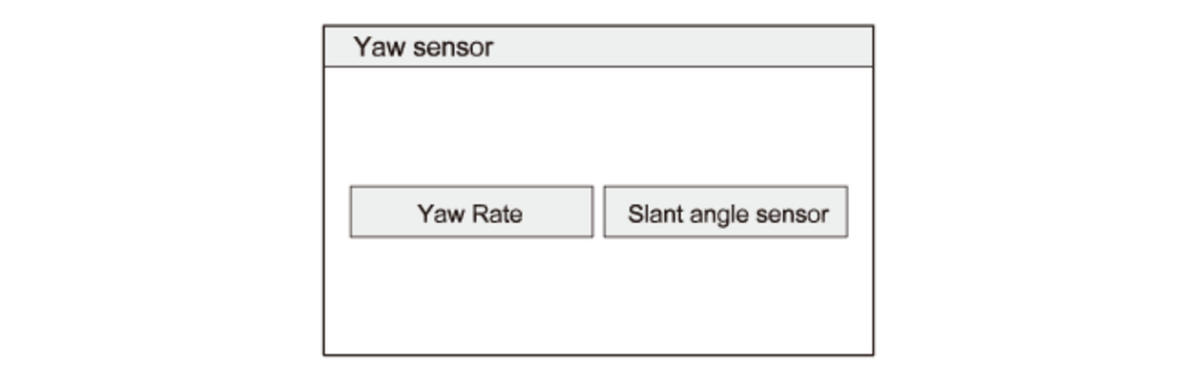

Yaw Sensor

This diagnosis checks the gyro and the acceleration sensor in the audio-navigation unit. This devices detect how the vehicle moves, and repositions the vehicle position icon on the map screen. Select the item you want to check.

Yaw Rate
Slant angle sensor

Courtesy of HONDA, U.S.A., INC.

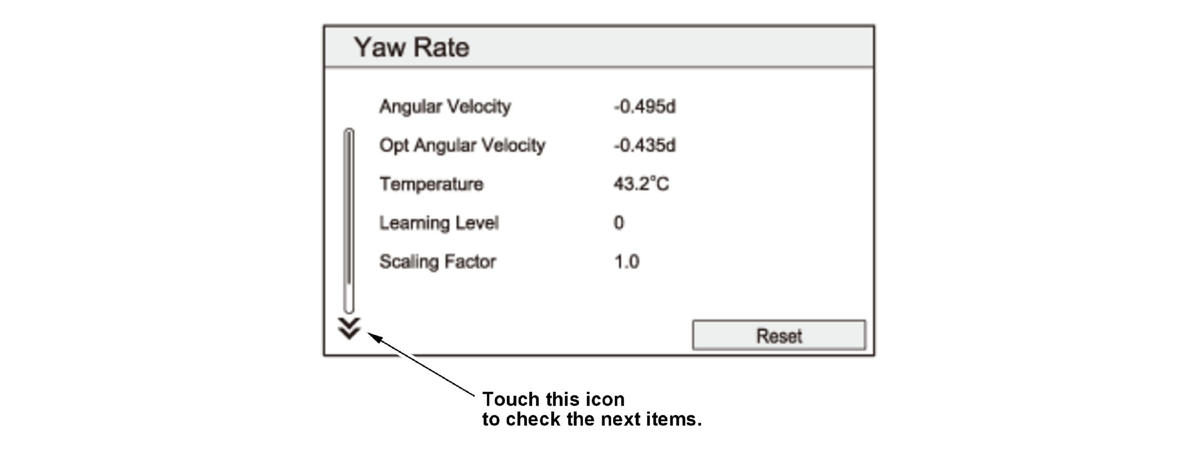

Yaw Rate

Angular Velocity: Indicates the angular velocity from the gyro.
Opt Angular Velocity: Indicates the option angular velocity from the gyro.
Temperature: Indicates the temperature of the gyro.
Learning Level: Displays the status of the internal tuning function. At initialization, this value starts at 0 and increases to 10 as the internal correction values become more accurate.
Scaling Factor: For factory use only.
Angular Velocity Result: Displays the result of the angular velocity (OK/NG). If NG, check for hard error codes .
Opt Angular Velocity Result: Displays the result of the option angular velocity (OK/NG). If NG, check for hard error codes .

Courtesy of HONDA, U.S.A., INC.

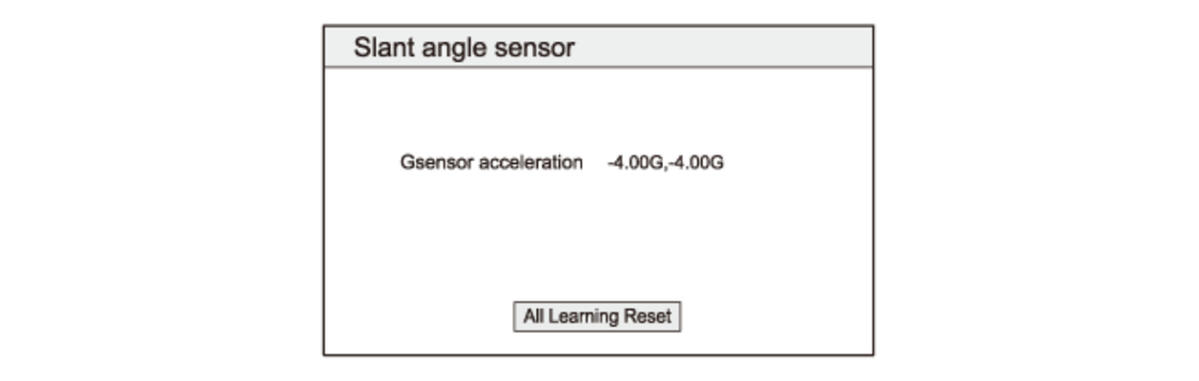

Slant Angle Sensor

This screen indicates the acceleration of the slant angle sensor (A-axis, B-axis).

Courtesy of HONDA, U.S.A., INC.

Telematics Diag

This screen shows the information about the connected smartphone by MirrorLink.
