Entry Lights Control System Component Location Index

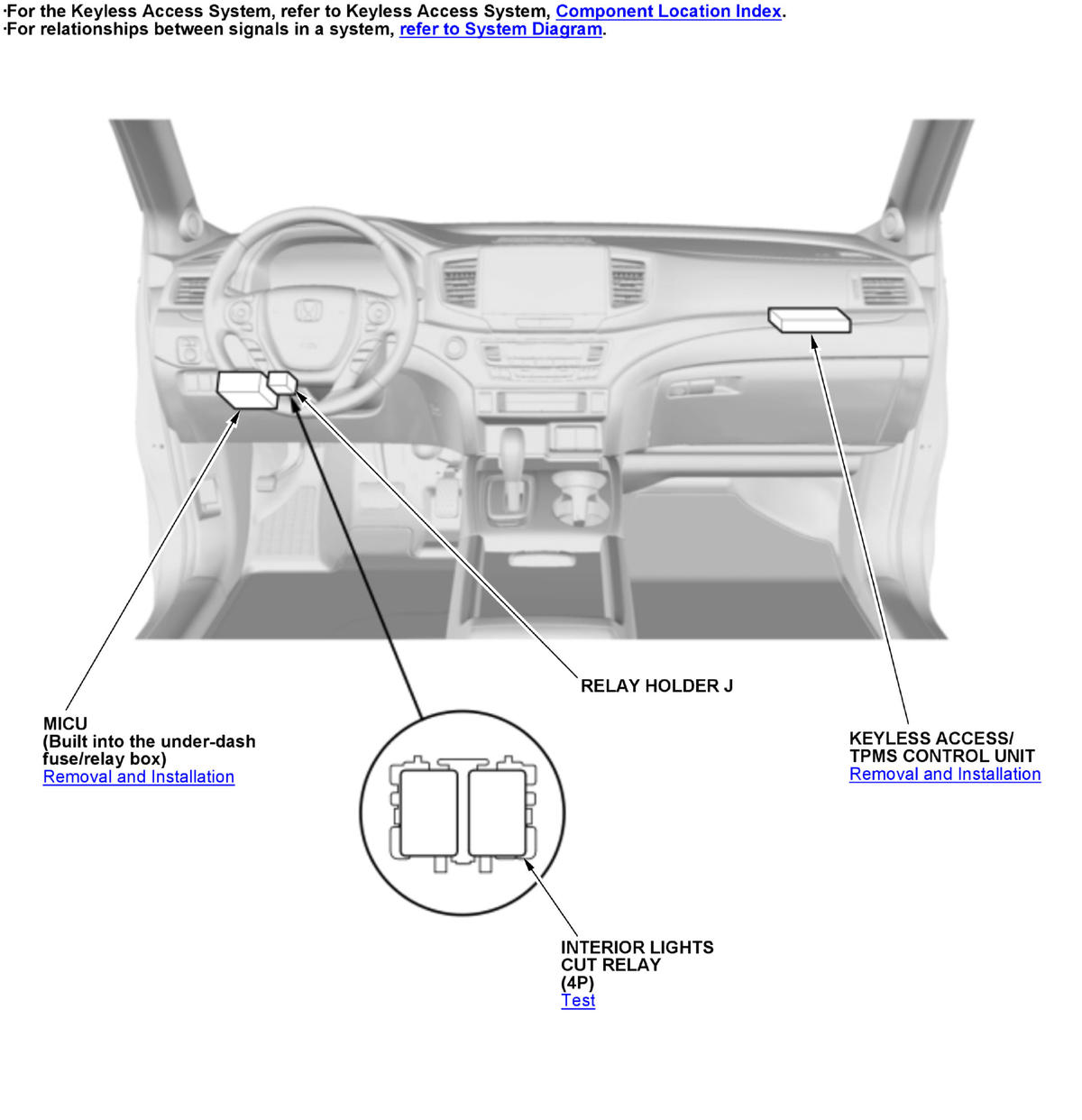

GHH457413Courtesy of HONDA, U.S.A., INC.

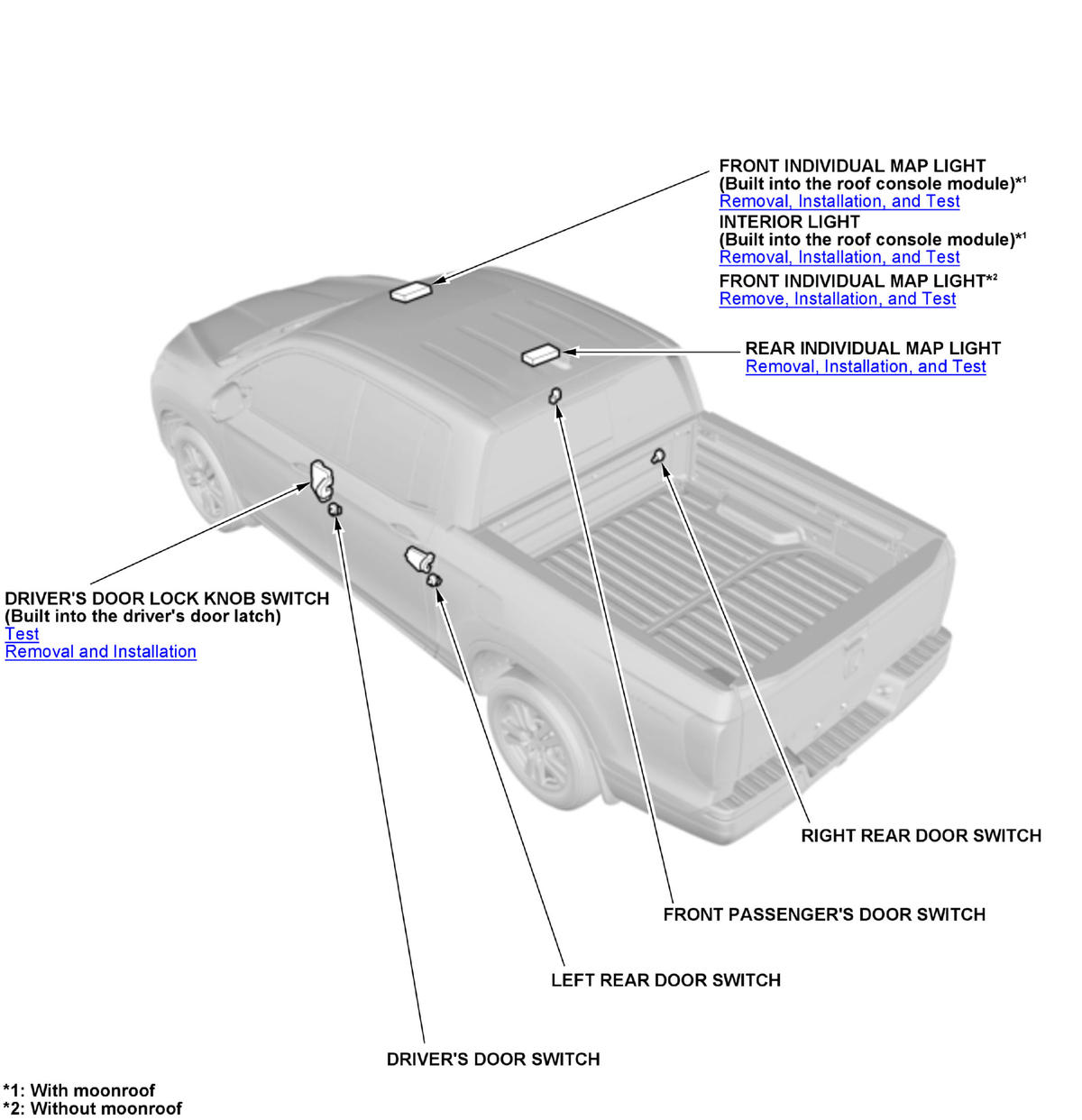

GHH457414Courtesy of HONDA, U.S.A., INC.

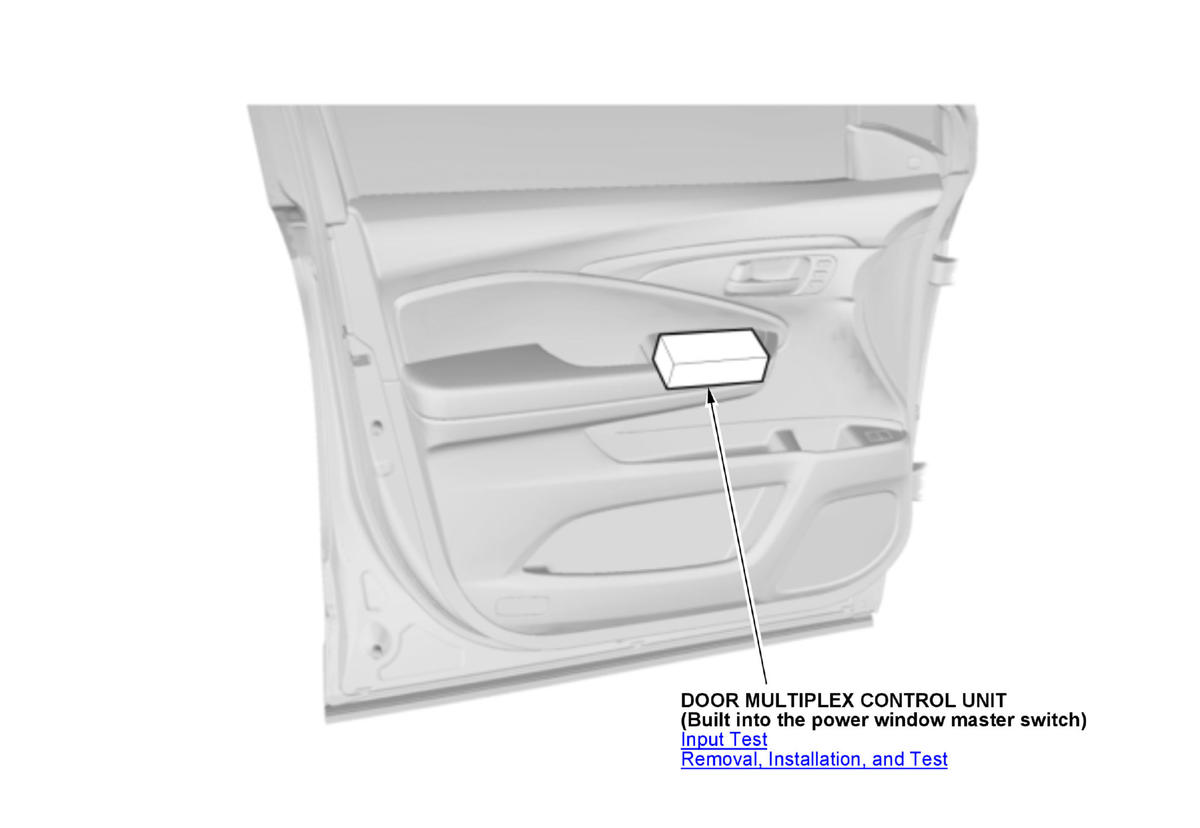

GHH457415Courtesy of HONDA, U.S.A., INC.
