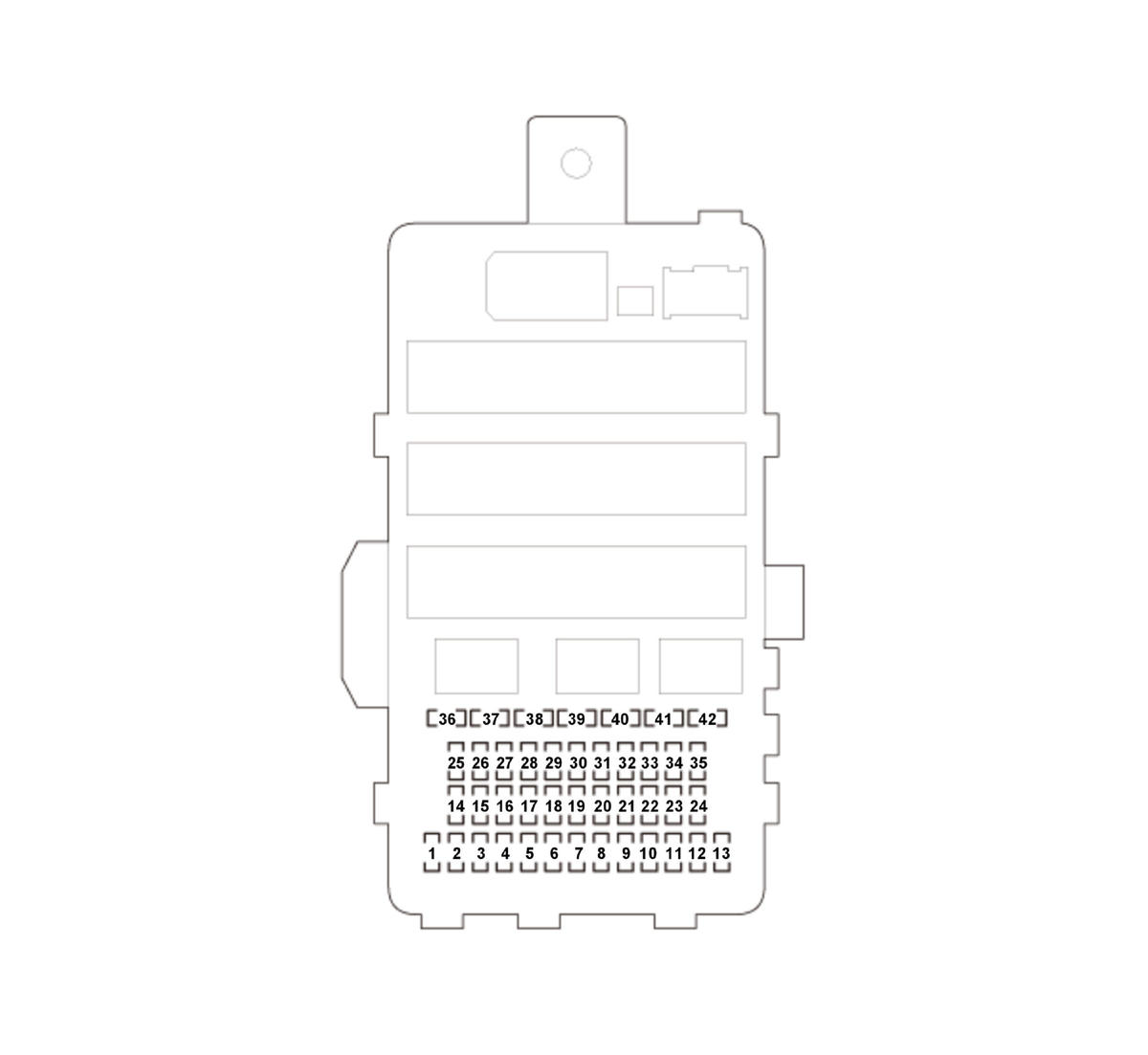

Under-Dash Fuse/Relay Box
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| C1 | 20 A | Power window master switch | |
| C2 | 20 A | In-bed trunk lid release actuator relay circuit (built into the under-dash fuse/relay box), In-bed trunk lid release actuator (via in-bed trunk lid release actuator relay circuit (built into the under-dash fuse/relay box)), No. C19 and No. C20 fuses in the under-dash fuse/relay box (via power door lock relay circuit (UNLOCK) (built into the under-dash fuse/relay box)), No. C33, No. C34, and No. C41 fuses in the under-dash fuse/relay box (via power door lock relay circuit (LOCK) (built into the under-dash fuse/relay box)), No. C35 fuse in the under-dash fuse/relay box (via power door lock relay circuit (DR UNLOCK) (built into the under-dash fuse/relay box)), Power door lock relay circuit (DR UNLOCK) (built into the under-dash fuse/relay box), Power door lock relay circuit (LOCK) (built into the under-dash fuse/relay box), Power door lock relay circuit (UNLOCK) (built into the under-dash fuse/relay box) |
|
| C3 | 7.5 A | Electric steering lock*, Engine start/stop switch, Keyless access/TPMS control unit |
*: With electric steering lock |
| C4 | 20 A | Front passenger's power window switch | |
| C5 | 20 A | Front accessory power socket (via front accessory power socket relay) | |
| C6 | 20 A | Fuel pump (via PGM-FI main relay 2), PCM |
|
| C7 | 15 A | Active control engine mount (ACM) control relay, DC-DC converter, DC-DC converter IG1 relay 2, EVAP canister purge valve, MAF sensor, No. A9 fuses in the under-hood fuse/relay box (via brake pedal position switch), PCM, TCM | |
| C8 | 7.5 A | Windshield wiper high/low relay circuit (built into the relay circuit board), Windshield wiper intermittent relay circuit (built into the relay circuit board) |
|
| C9 | 7.5 A | Electric steering lock*, Keyless access/TPMS control unit |
*: With electric steering lock |
| C10 | 10 A | SRS unit | |
| C11 | 20 A | Left rear power window motor (via left rear power window switch) | |
| C12* | 20 A | Back power window close relay, Back power window motor (via back power window close relay), Back power window motor (via back power window open relay), Back power window open relay |
*: With back power window |
| C13 | 20 A | Right rear power window motor (via right rear power window switch) | |
| C14 | 20 A | Fuel fill door opener solenoid relay, Fuel fill door opener solenoid (via fuel fill door opener solenoid relay), Moonroof motor-control unit* |
*: With moonroof |
| C15 | 20 A | Power seat control unit* 1, Rear up-down motor (via driver's power seat adjustment switch)* 2, Recline motor (via driver's power seat adjustment switch)* 2 |
*1: With DPMS *2: With power seat and without DPMS |
| C16 | 7.5 A | MICU | |
| C17 | 20 A | Driver's seat-back blower motor* 1, Driver's seat cushion blower motor* 1, Front seat heater control unit (via front seat heater relay)* 2, Passenger's seat-back blower motor* 1, Passenger's seat cushion blower motor* 1, Ventilated seat control unit (via ventilated seat relay)* 1 |
*1: With ventilated seat *2: Without ventilated seat |
| C18 | 7.5 A | Door courtesy lights* 1, Front individual map lights (via interior lights cut relay), Interior lights cut relay, Rear individual map lights (via interior lights cut relay), Roof console module (via interior lights cut relay)* 2, Vanity mirror lights (via interior lights cut relay)* 3 | *1: With courtesy light *2: With moonroof *3: With vanity mirror light |
| C19 | 10 A | Left rear door lock actuator | |
| C20 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
|
| C21 | 7.5 A | Front parking lights/daytime running lights/front side marker lights*, MICU |
*: With LED daytime running light |
| C22 | 7.5 A | MICU | |
| C23 | 7.5 A | A/C compressor clutch relay, A/C condenser fan relay (via diode), Automatic dimming inside mirror* 7, Climate control unit, Driver's seat heater switch* 2, Driver's ventilated seat heater switch* 1, Fan control relay (via diode), Front blower motor relay, Front passenger's seat heater switch* 2, Front passenger's ventilated seat heater switch* 1, Front seat heater relay* 2, Heated steering wheel relay* 3, Heated windshield wiper area relay* 9, HomeLink ® unit* 8, Power mirror control unit (via power mirror switch)* 4, Power window master switch, Power window master switch (via power mirror switch)* 5, Rear blower motor relay, Rear seat heater relay* 6, Rear window defogger relay, Trailer charge relay, Ventilated seat relay* 1 | *1: With ventilated seat *2: Without ventilated seat *3: With heated steering wheel *4: With DPMS *5: Without DPMS or with retractable mirror *6: With rear seat heater *7: With automatic dimming inside mirror *8: With HomeLink ® *9: With Heated windshield wiper area |
| C24 | 7.5 A | Keyless access/TPMS control unit | |
| C25 | 7.5 A | AC power outlet switch* 1, ACC combination switch (via cable reel and audio remote switch), Audio remote switch (via cable reel), Automatic dimming inside mirror* 12, Beverage holder light* 14, Cargo area light switch, Climate control unit, CMBS OFF switch, Console box light, Dashlights brightness control switch, driver's footwell light* 13, Driver's seat heater switch* 4, Driver's ventilated seat heater switch* 3, ECON switch, Front passenger's airbag CUTOFF indicator, Front passenger's footwell light* 13, Front passenger's seat heater switch* 4, Front passenger's ventilated seat heater switch* 3, Glove box light, Hazard warning switch, Heated steering wheel switch* 5, Heated windshield wiper area switch* 6, HFL switch (via cable reel and audio remote switch)* 17, HFL-navigation voice control switch (via cable reel and audio remote switch)* 16, HomeLink ® switch* 7, Idle stop OFF switch, Intelligent traction management switch* 8, Interior light switch* 11, Moonroof switch* 10, Parking and back-up sensor switch* 15, Power mirror switch, RDM switch light, Rear control panel, Rear seat heater switch* 2, Roof console module* 10, SBW shifter control module, Select/reset/information switch (via cable reel, audio remote switch, and ACC combination switch), Snow switch* 9 | *1: With AC power outlet *2: With rear seat heater *3: With ventilated seat *4: Without ventilated seat *5: With heated steering wheel *6: With heated windshield wiper area *7: With HomeLink ® *8: AWD *9: 2WD *10: With moonroof *11: Without moonroof *12: With automatic dimming inside mirror *13: With footwell light *14: With front beverage holder light *15: With parking and back-up sensor control unit *16: With navigation *17: Without navigation |
| C26* | 7.5 A | Driver's lumbar support motor (via driver's lumber support switch) | *: With lumbar support |
| C27 | 7.5 A | Front parking lights/daytime running lights/front side marker lights* 1, Front parking lights* 2, Front side marker lights* 2, License plate lights, Taillights/rear side marker lights, Trailer small light relay |
*1: With LED daytime running light *2: Without LED daytime running light |
| C28 | 10 A | 12 volt battery fan, CAN gateway, i-VTM control unit*, Rear differential pump motor* | *: AWD |
| C29 | 7.5 A | Audio unit (via reverse relay circuit (built into the under-dash fuse/relay box))* 2, Audio-navigation unit (via reverse relay circuit (built into the under-dash fuse/relay box))* 1, Automatic dimming inside mirror (via reverse relay circuit (built into the under-dash fuse/relay box))* 4, Back-up lights (via reverse relay circuit (built into the under-dash fuse/relay box)), DC-DC converter IG1 relay 1, Idle stop OFF switch, MICU (via reverse relay circuit (built into the under-dash fuse/relay box)), MICU, Parking and back-up sensor control unit (via parking and back-up sensor switch)* 5, Parking and back-up sensor control unit* 5, Parking and back-up sensor switch* 5, Power mirror control unit* 3, Power seat control unit* 3, Reverse relay circuit (built into the under-dash fuse/relay box), SBW shifter control module, Trailer lighting control unit (via reverse relay circuit (built into the under-dash fuse/relay box)) | *1: With navigation *2: Without navigation *3: With DPMS *4: With automatic dimming inside mirror *5: With parking and back-up sensor control unit |
| C30 | --- | Not used | |
| C31 | 7.5 A | Starter cut relay 1, Starter cut relay 2 | |
| C32 | 7.5 A | Front passenger's airbag CUTOFF indicator | |
| C33 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
|
| C34 | 10 A | Driver's door lock actuator | |
| C35 | 10 A | Driver's door lock actuator | |
| C36 | 20 A | Front up-down motor (via driver's power seat adjustment switch)* 2, Power seat control unit* 1, Slide motor (via driver's power seat adjustment switch)* 2 |
*1: With DPMS *2: With power seat and without DPMS |
| C37 | 10 A | MICU | |
| C38 | 10 A | MICU | |
| C39 | 7.5 A | Keyless access/TPMS control unit | |
| C40 | 7.5 A | Console accessory power socket relay, Front accessory power socket relay, DC-DC converter ACC relay, TCM, Wireless charger* |
*: With wireless charger |
| C41 | 10 A | Left rear door lock actuator | |
| C42 | --- | Not used |
