A/T Pressure Test (6-Speed A/T) (2017 2018 2019): Notes

Special Tools Required

Image Description/Tool Number

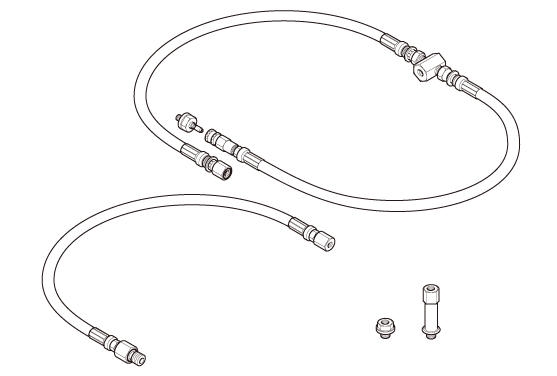

GHH224763Courtesy of HONDA, U.S.A., INC.
Pressure Gauge Adapter 070AJ-RT4A101

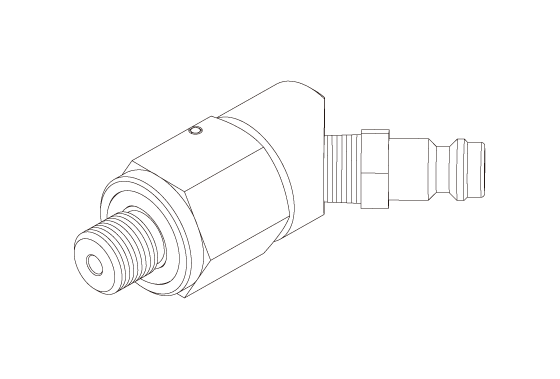

GHH224764Courtesy of HONDA, U.S.A., INC.
Pressure Gauge Adapter G 070AJ-RT4A170

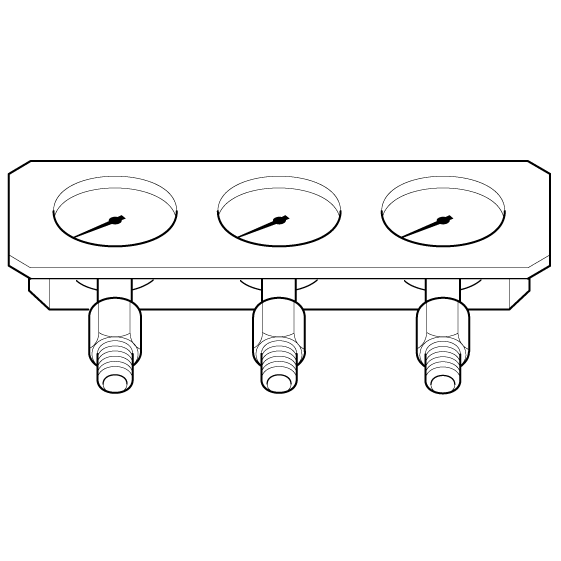

GHH224765Courtesy of HONDA, U.S.A., INC.
A/T Oil Pressure Gauge Set 07406-0020400 or 07406-0020401
GHH224766Courtesy of HONDA, U.S.A., INC.
A/T Pressure Adapter 07MAJ-PY40120

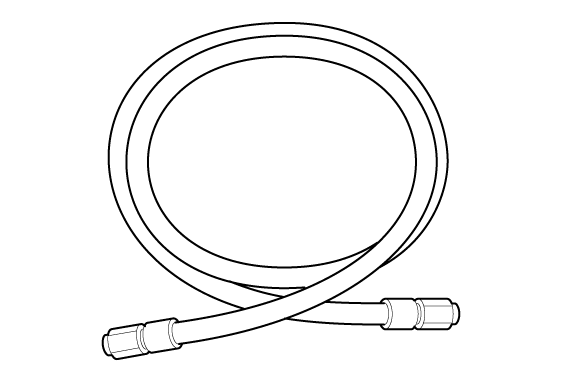

GHH224767Courtesy of HONDA, U.S.A., INC.
A/T Pressure Test Hose 07AAJ-PY4A100
