Engine Oil Pump Removal and Installation: Installation

NOTE:

How to read the torque specifications .

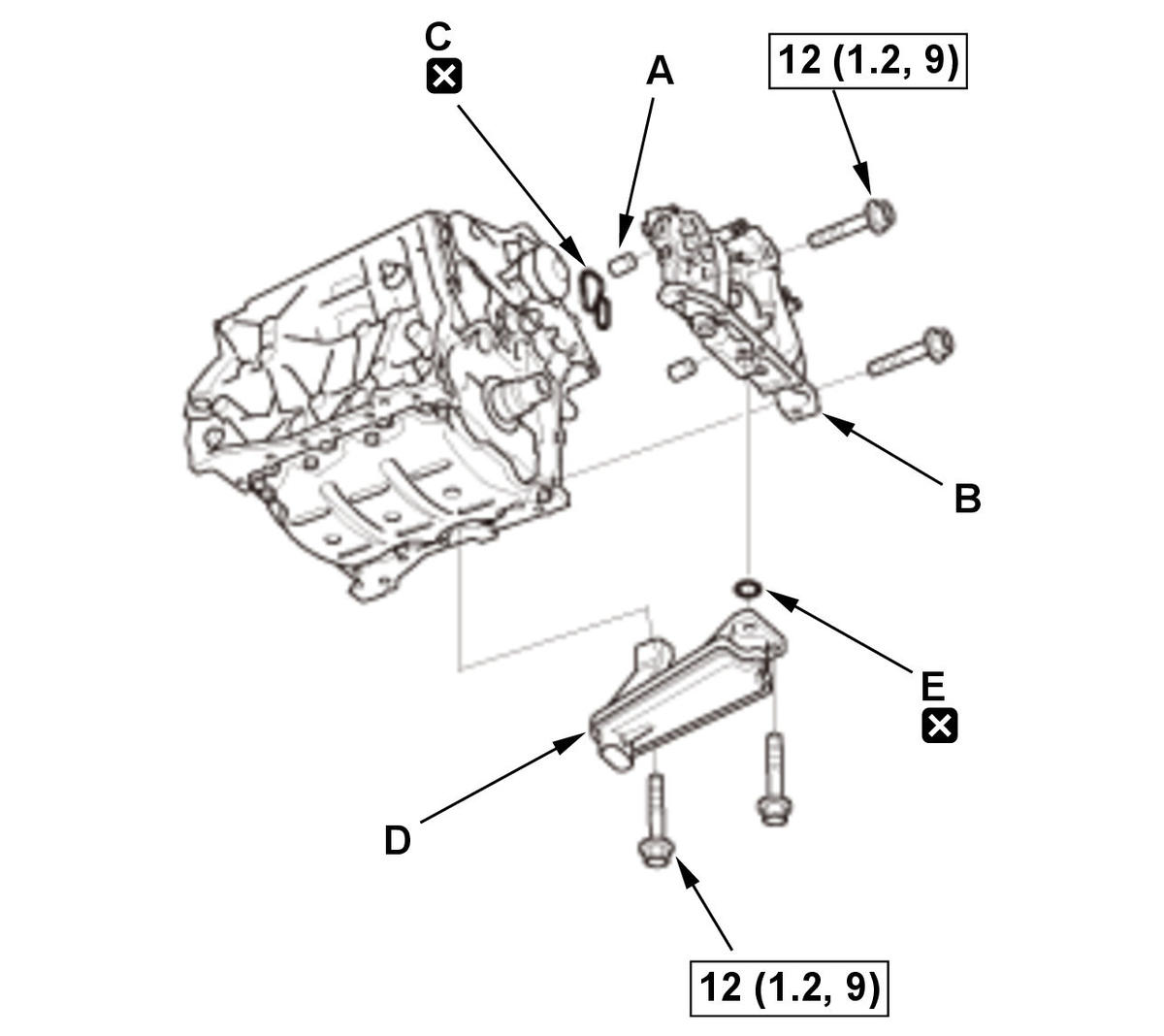

  1. Oil Pump - Install
    GHH455072Courtesy of HONDA, U.S.A., INC.
    		 1. Apply liquid gasket to the engine block mating surface of the oil pump and to the inside edge of the threaded bolt holes.

    2. Install the dowel pins (A), then align the inner rotor with the crankshaft, and install the oil pump (B) with a new O-ring (C).

    NOTE:

    Replace the pulley end crankshaft oil seal as needed.

    3. Clean the excess oil off the crankshaft, and check that the oil seal lip is not distorted.

    4. Install the oil strainer (D) with a new O-ring (E).

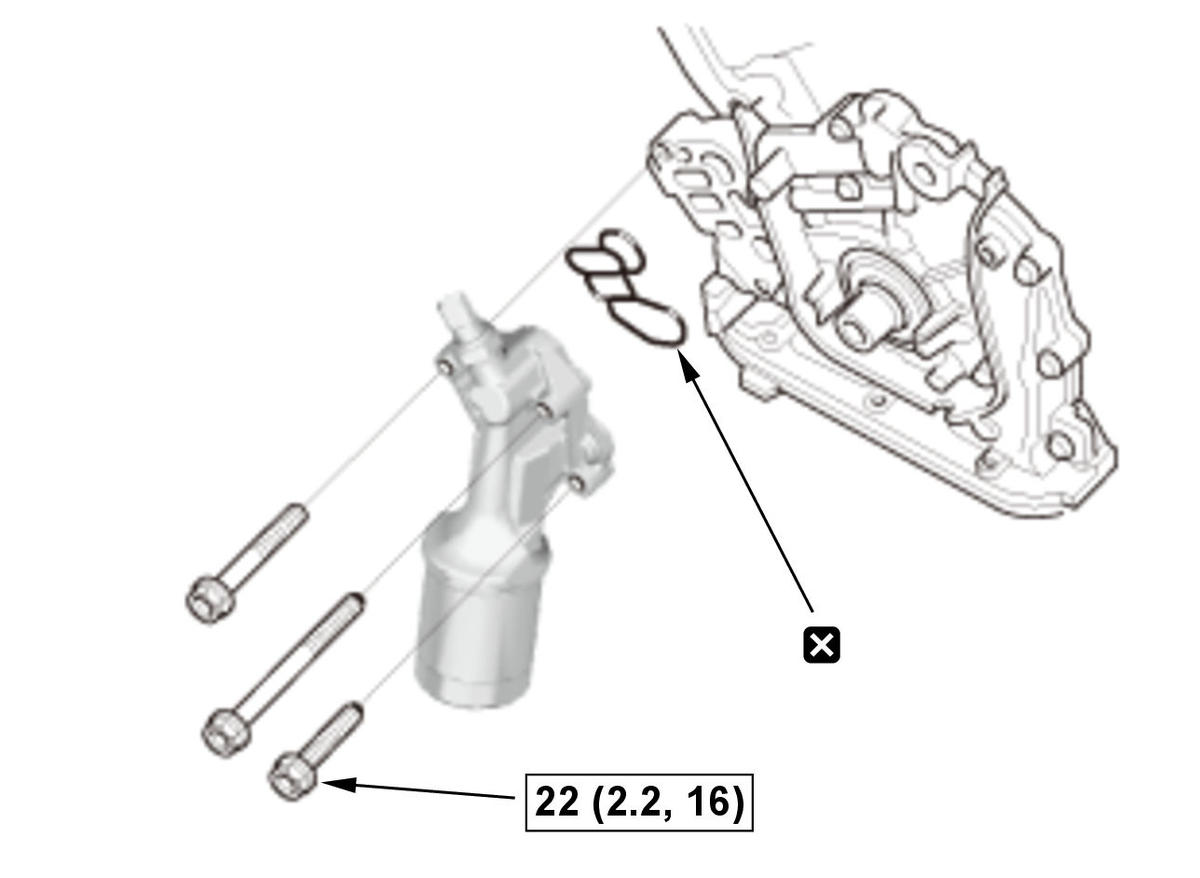

  2. Oil Filter Base/Oil Filter Assembly - Install
    GHH455073Courtesy of HONDA, U.S.A., INC.
  3. Oil Pan - Install
  4. Engine - Support
    1. Lift and support the engine with a jack and a wood block under the oil pan.
  5. Engine Support Hanger - Remove
    NOTE:

    After removing the engine support hanger, install the front damper caps.

  6. Cowl Cover - Install
  7. Connector (Rocker Arm Oil Pressure Sensor) - Connect
  8. Timing Belt Drive Pulley - Install
  9. Timing Belt - Install
  10. Engine Oil - Refill
  11. Air Intake Tube - Install
  12. Front Bulkhead Cover - Install
  13. Engine Cover - Install
