Intake Manifold Removal and Installation (2020 2021 2022 2023 2024 2025)
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

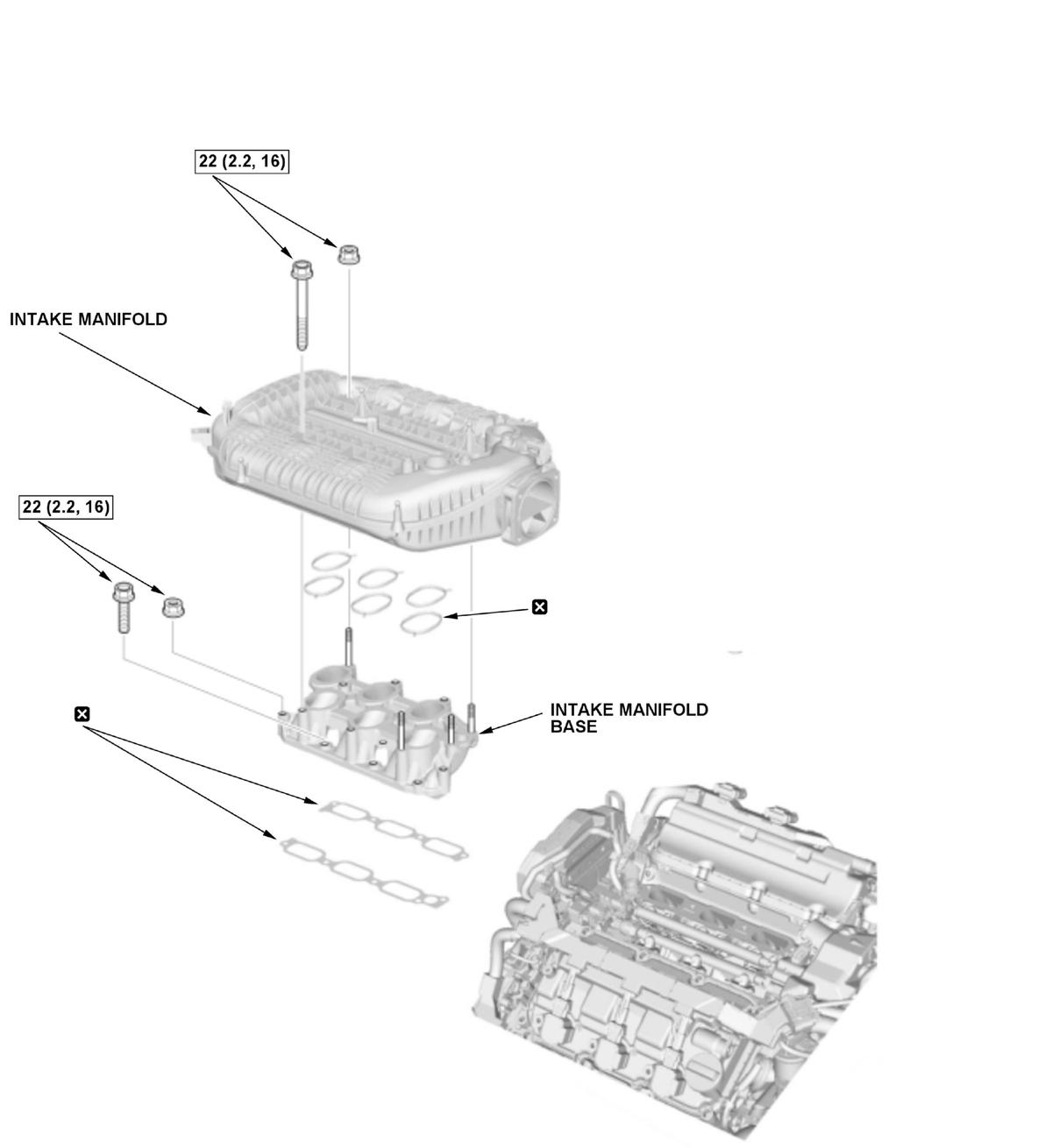

Exploded View
NOTE:
How to read the torque specifications
.
Intake Manifold
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
