PCM Removal and Installation (2017 2018 2019): Installation
NOTE:
Where icon is shown, further information shown below.
- If you are removing the PCM, skip the procedures of using the HDS.
- If you are substituting the PCM, skip the procedures of WRITE DATA (Engine Oil Life and Starter Counter).
| Detailed information, notes and precautions | |
| Torque: N.m (kgf.m, lbf.ft) |

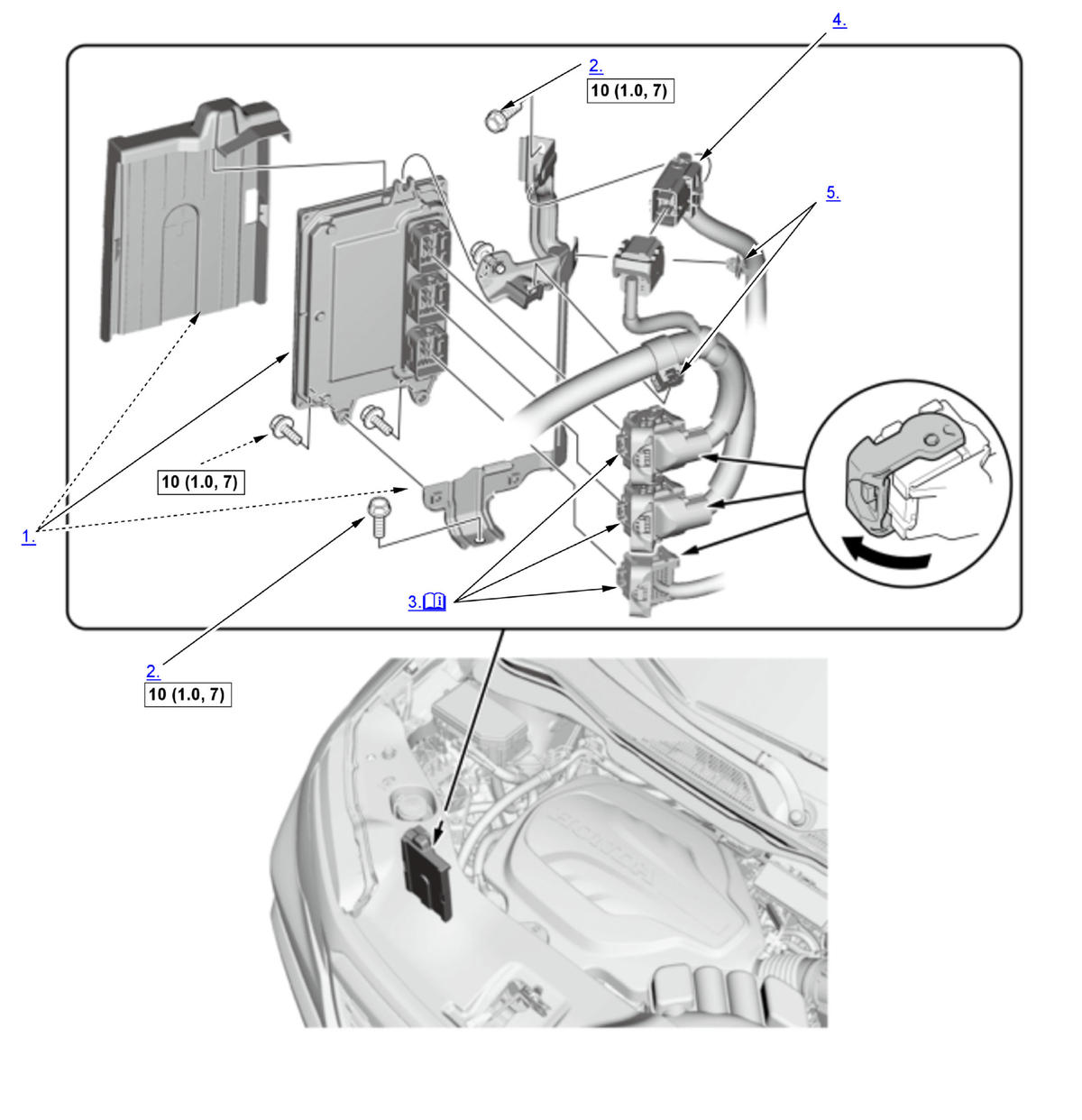

- PCM - Install
- Bolts - Tighten
- Connector (PCM) - ConnectNOTE:

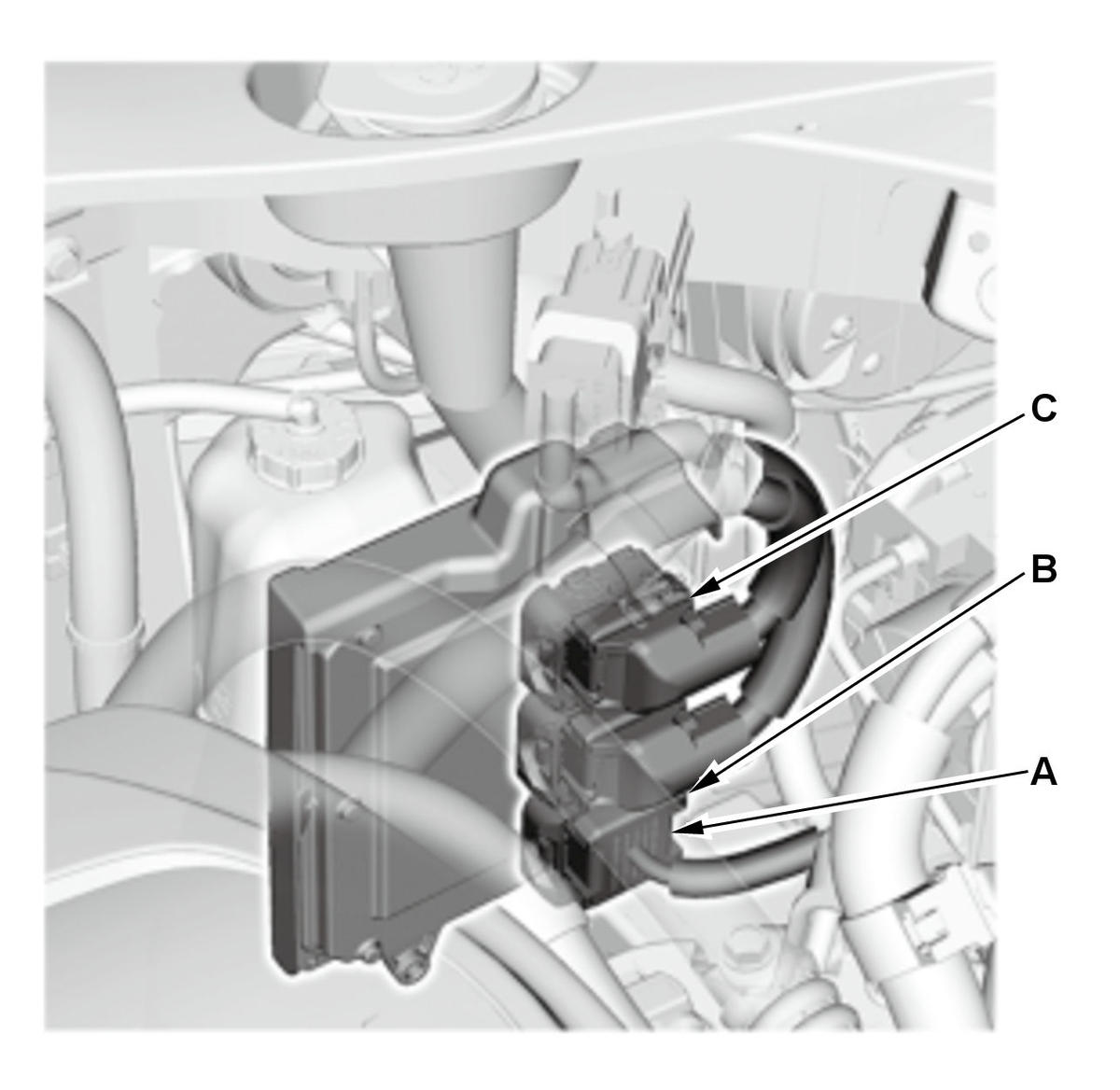

PCM connectors A, B, and C have symbols (A=□, B=Δ, C=◦) embossed on them for identification.
- Connector - Install
- Harness Holders - Remove
- SCS - Open
1. Exit the SCS mode with the HDS. Procedure After Replacing PCM
- VIN - Input
1. Turn the vehicle to the ON mode. NOTE:DTC P0630 VIN Not Programmed or Mismatch may be stored because the VIN has not been programmed into the PCM; ignore it, and continue this procedure.
2. Manually input the VIN to the PCM with the HDS.
- WRITE DATA (Engine Oil Life) - SelectNOTE: If the READ DATA (engine oil life) failed in "READ DATA (Engine Oil Life) - Select", skip this procedure.
1. Select the REPLACE PCM MENU, then select WRITE DATA, and follow the screen prompts.
- Other Procedures for PCM Replacement - Do
1. If the READ DATA (engine oil life) failed in "READ DATA (Engine Oil Life) - Select", replace the engine oil and the engine oil filter . - Keyless Access System - Registration
- DTC - Clear
1. Clear the Pending or Confirmed DTCs with the HDS. - PCM - Update
- PCM - Idle Learn
- CKP Pattern - Clear/Learn
