DTC P0341: General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

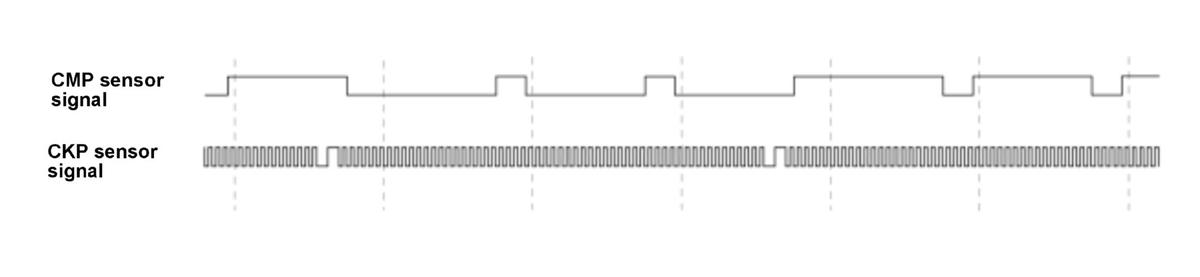

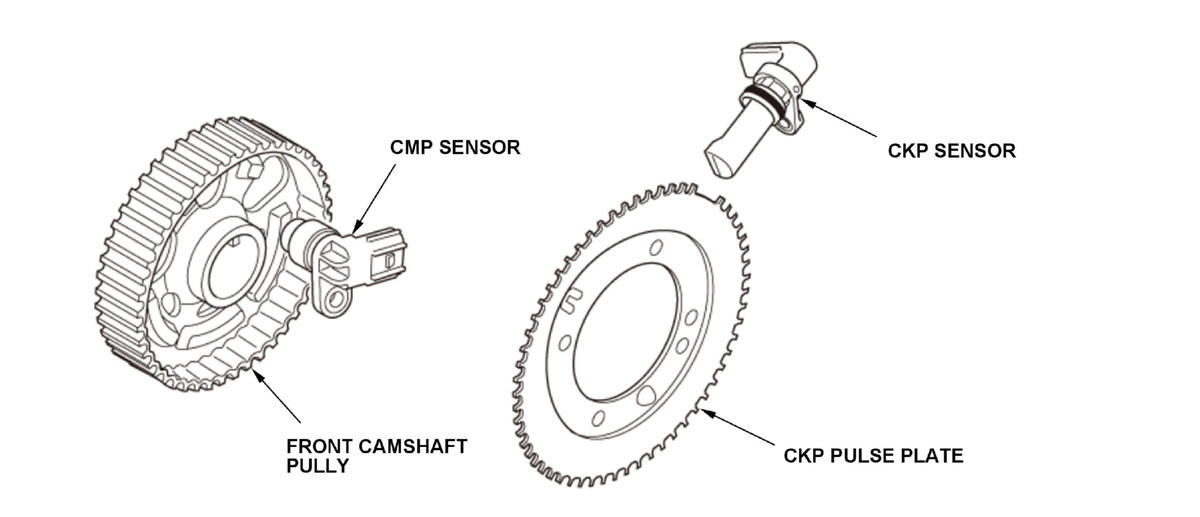

The vehicle equips with the camshaft position (CMP) sensor which detects the camshaft phase, and the crankshaft position (CKP) sensor which detects the crankshaft phase. The pulsing signals are input to the powertrain control module (PCM) and determines the advance or the retard of the camshaft phase according to the signals from the CKP sensor and CMP sensor. After the engine is started, angle is calculated from the deviation, and if it is not within a specified range, the PCM detects a malfunction and stores a DTC.
