EPS Motor/Control Unit Removal and Installation: Removal

NOTE:

Where icon is shown for further information continue to the information below.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Replace

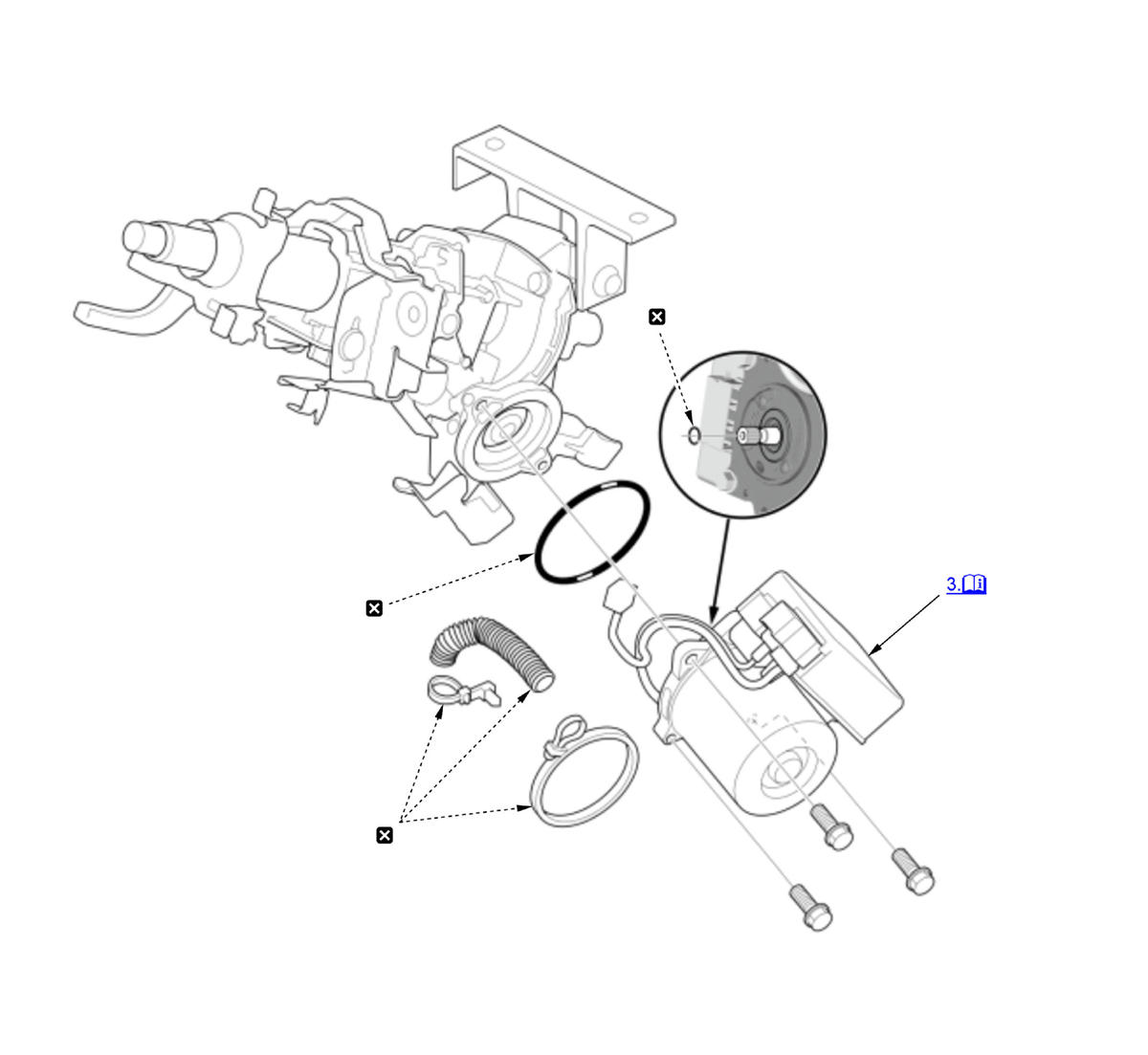

EPS Motor/Control Unit - Remove

Courtesy of HONDA, U.S.A., INC.

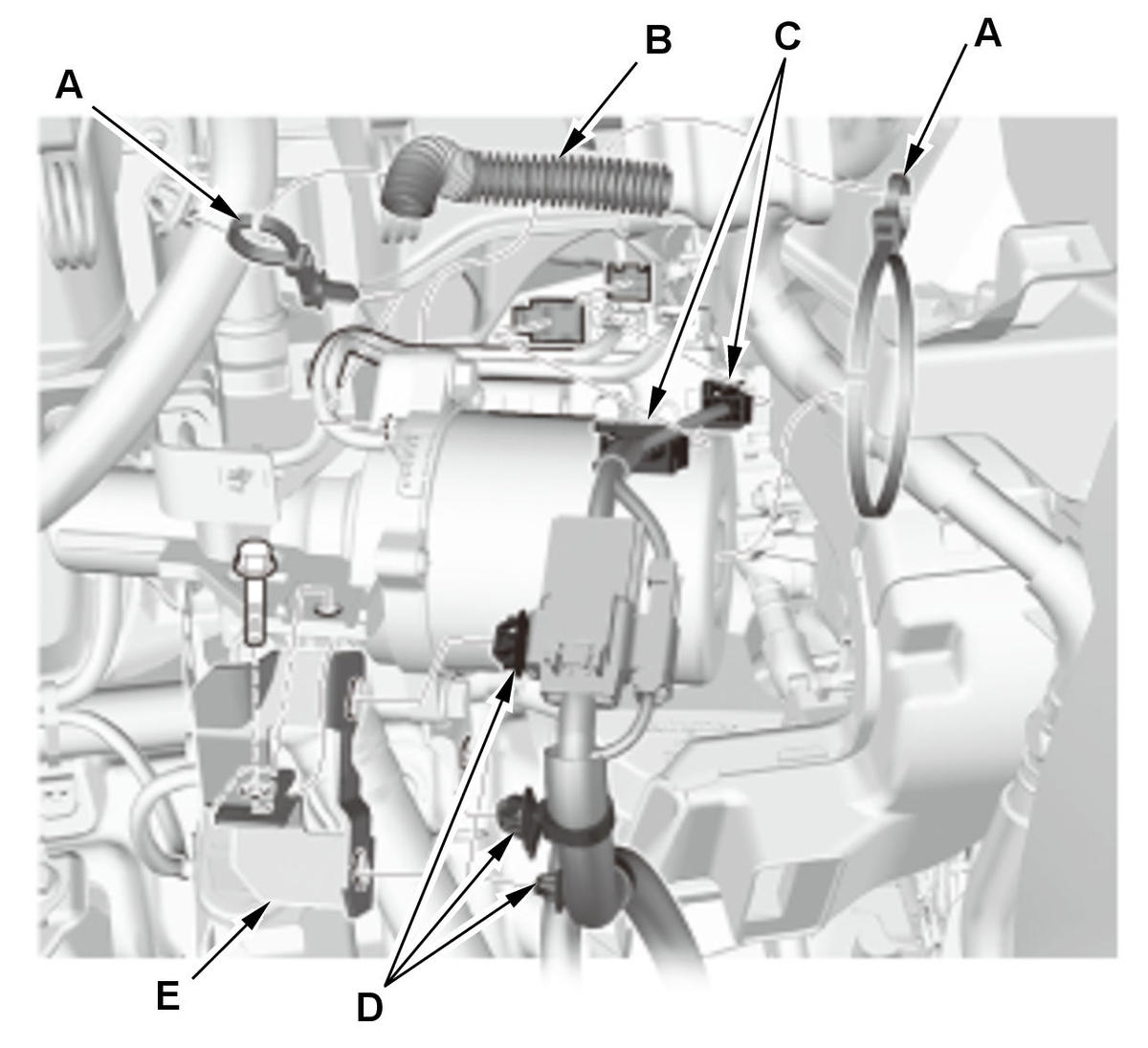

1. Remove the cable ties (A).

NOTE: Cut the cable tie to remove.

2. Remove the tube (B).

3. Disconnect the connectors (C).

4. Remove the harness clips (D).

5. Remove the harness bracket (E).

Courtesy of HONDA, U.S.A., INC.

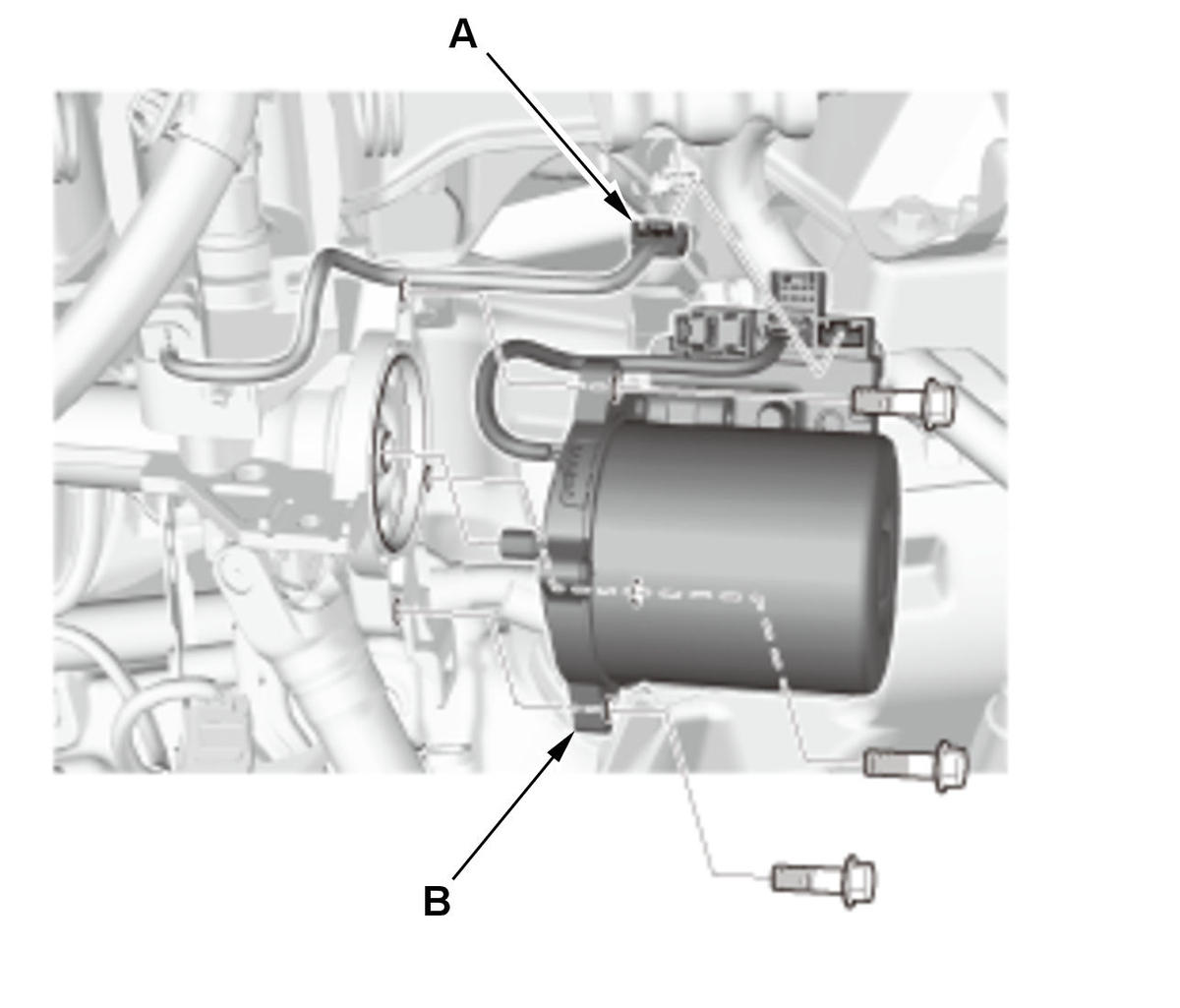

6. Disconnect the connector (A).

7. Remove the EPS motor/control unit (B).
