HomeLink Switch Test: Test

NOTE:  The HomeLink® switch is built into the roof console module.

1. Check for continuity between the terminals in each switch position according to the table.

NOTE:

• When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
• Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

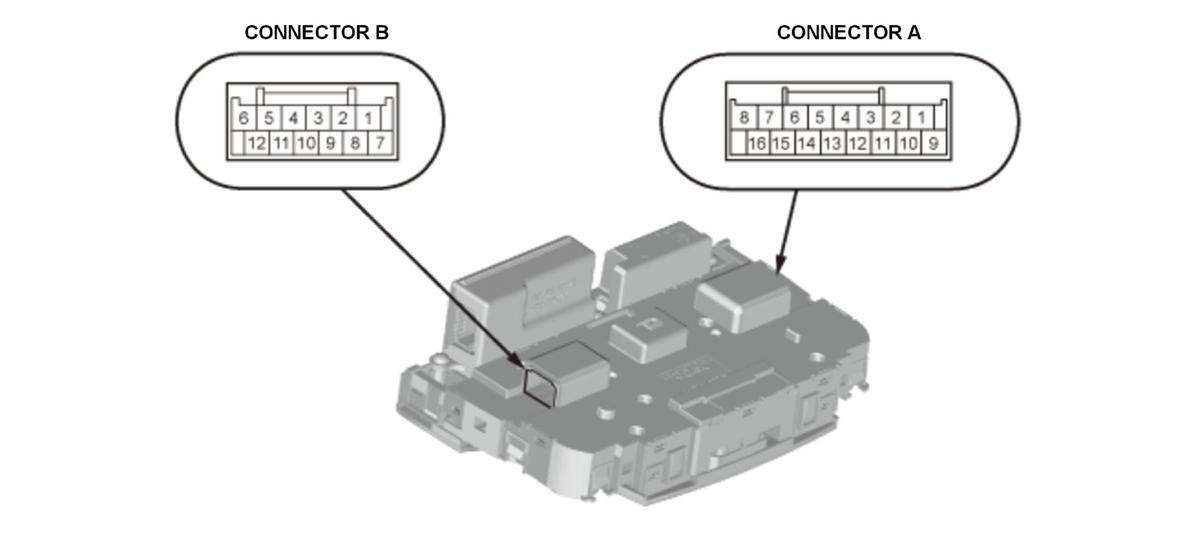

Courtesy of HONDA, U.S.A., INC.

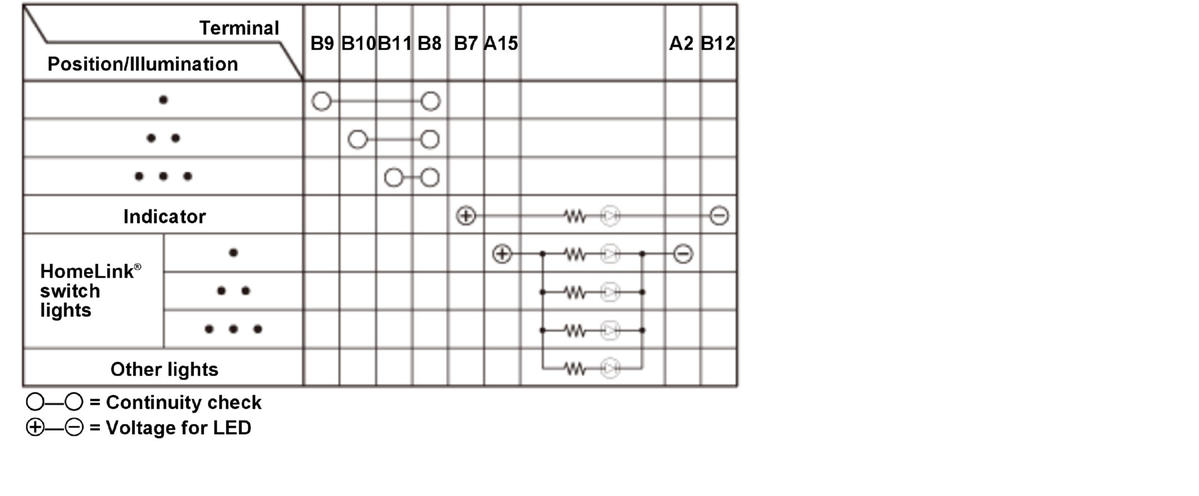

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, the HomeLink® switch is faulty; replace the roof console module .
