A/T Differential Component Location Index (6-Speed A/T) (2017 2018 2019)

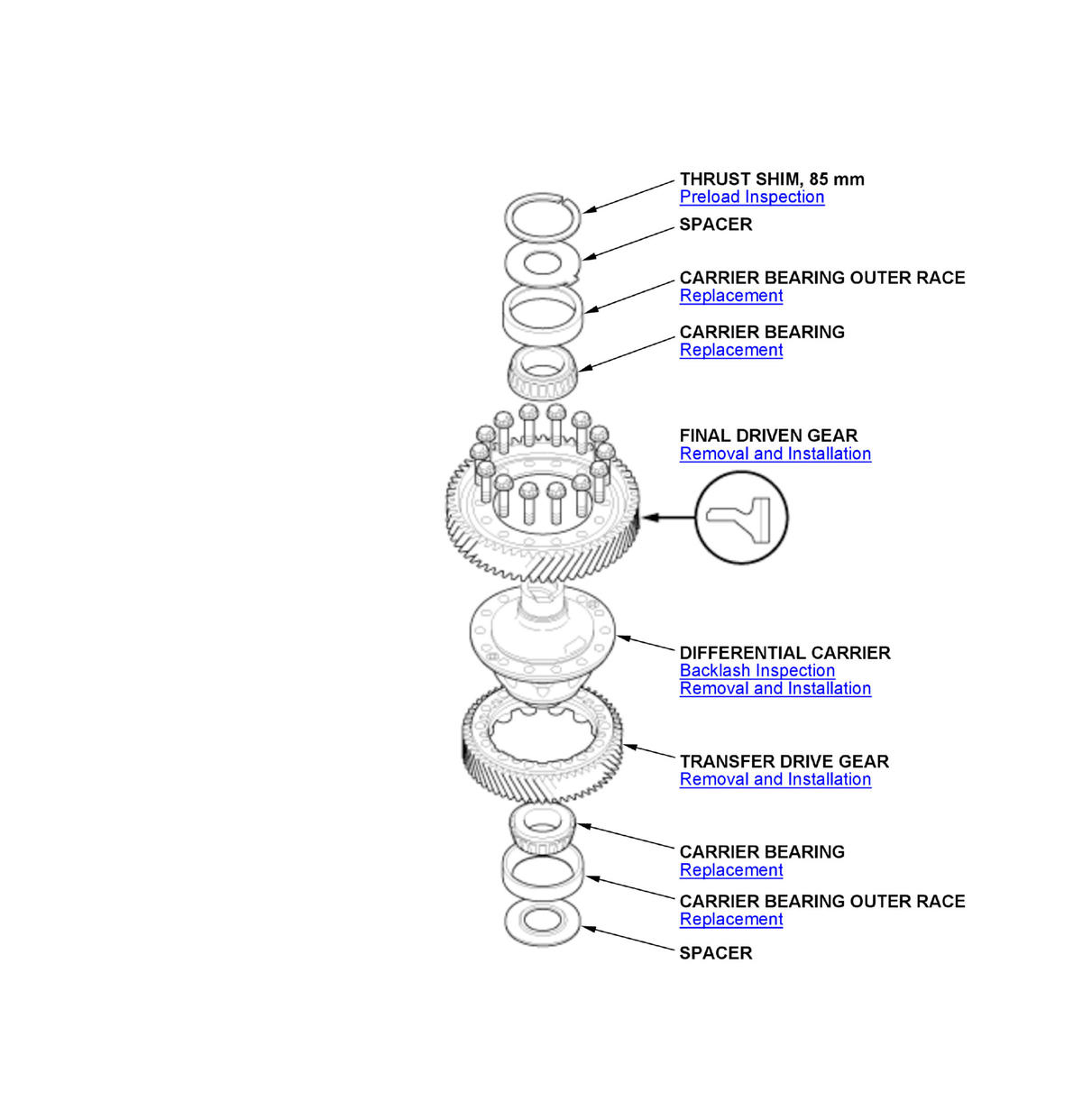

With AWD

GHH449714Courtesy of HONDA, U.S.A., INC.

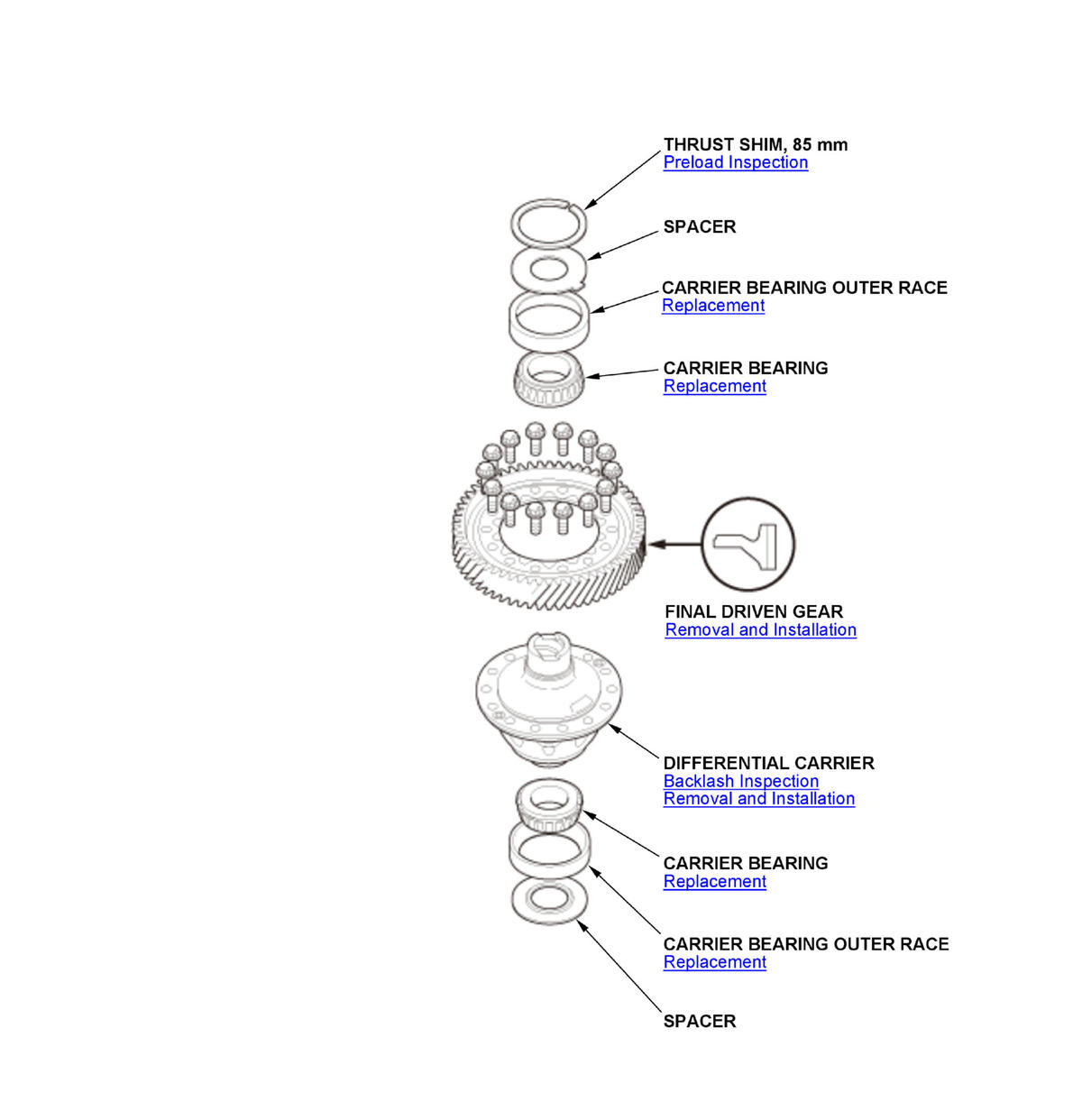

Without AWD

GHH449715Courtesy of HONDA, U.S.A., INC.
