Keyless Access System Component Location Index (Except K20C1 (M/T))

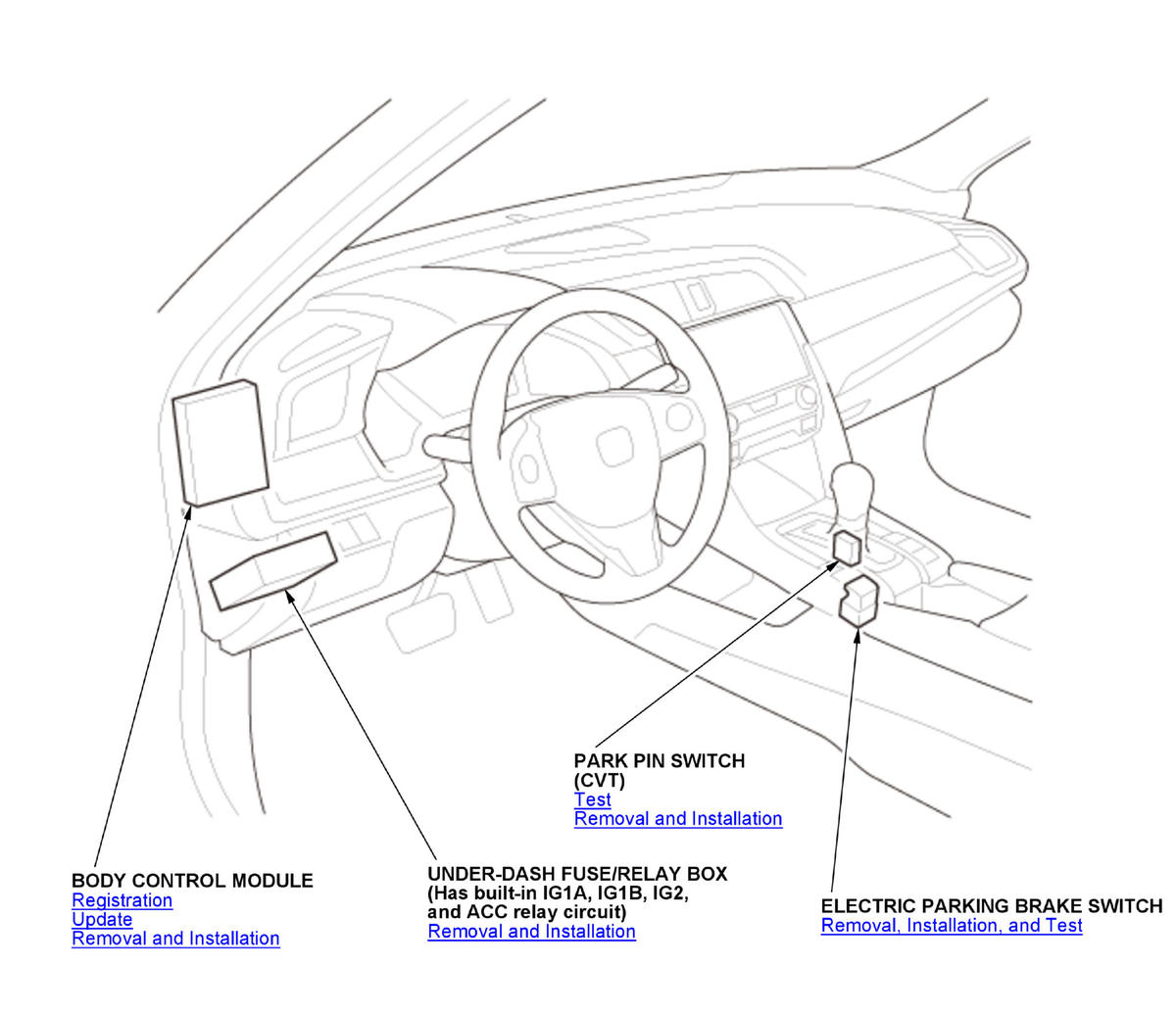

Courtesy of HONDA, U.S.A., INC.

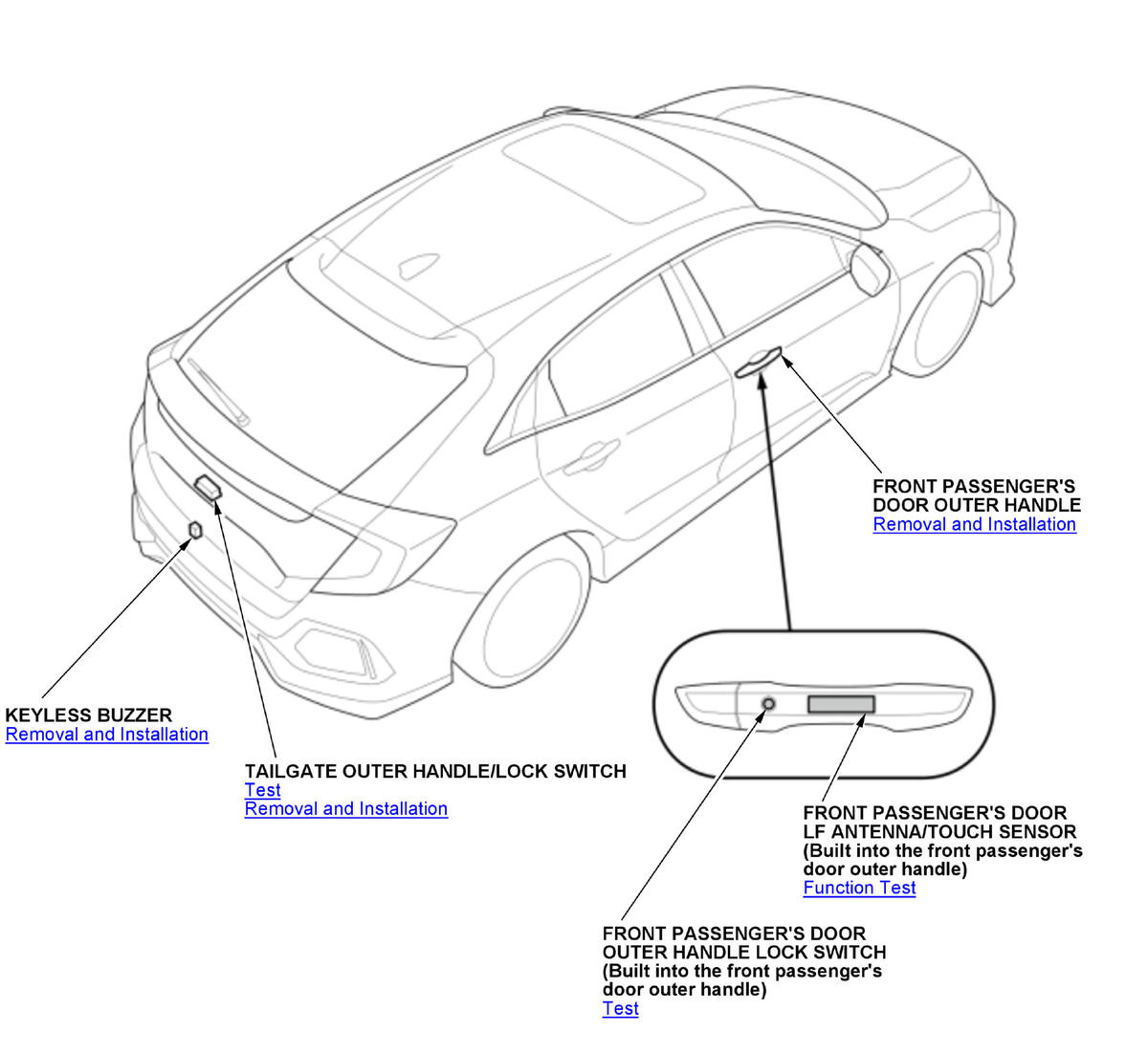

Courtesy of HONDA, U.S.A., INC.

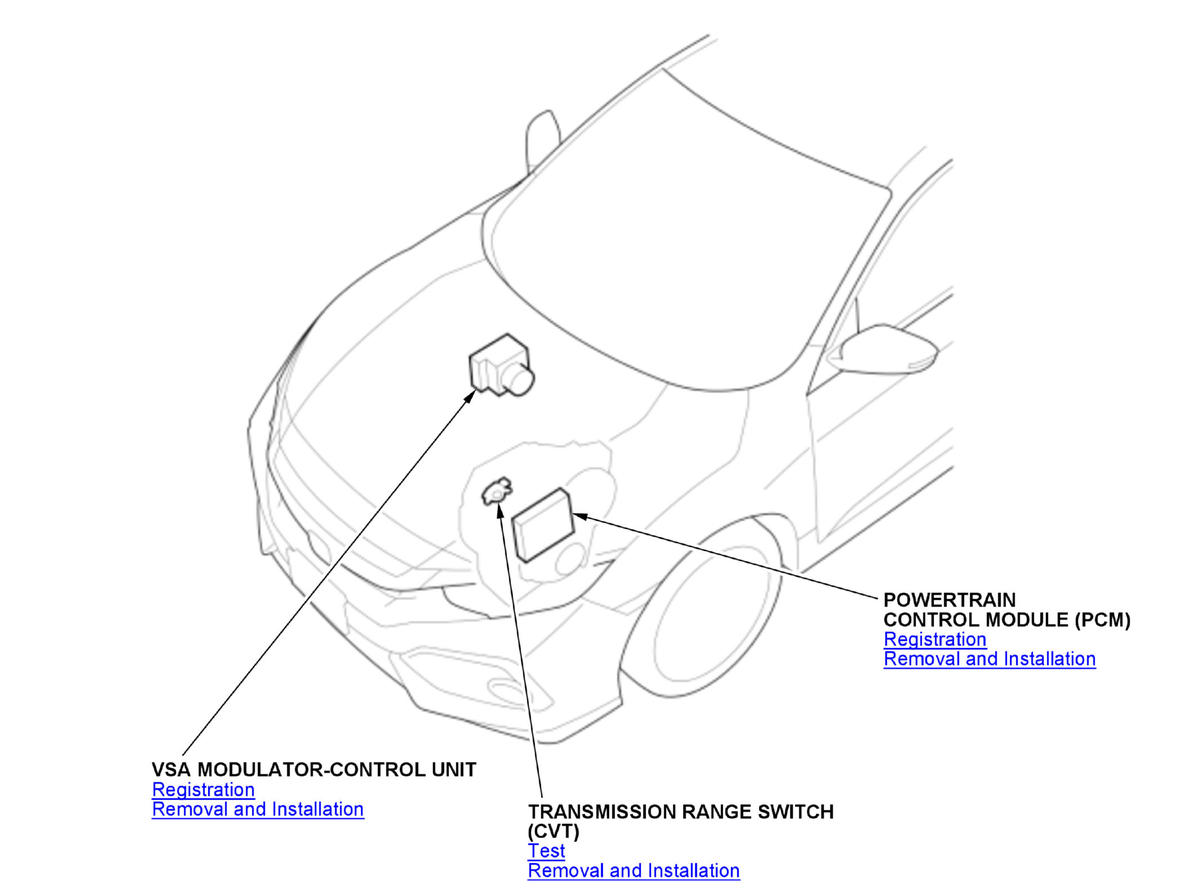

Courtesy of HONDA, U.S.A., INC.

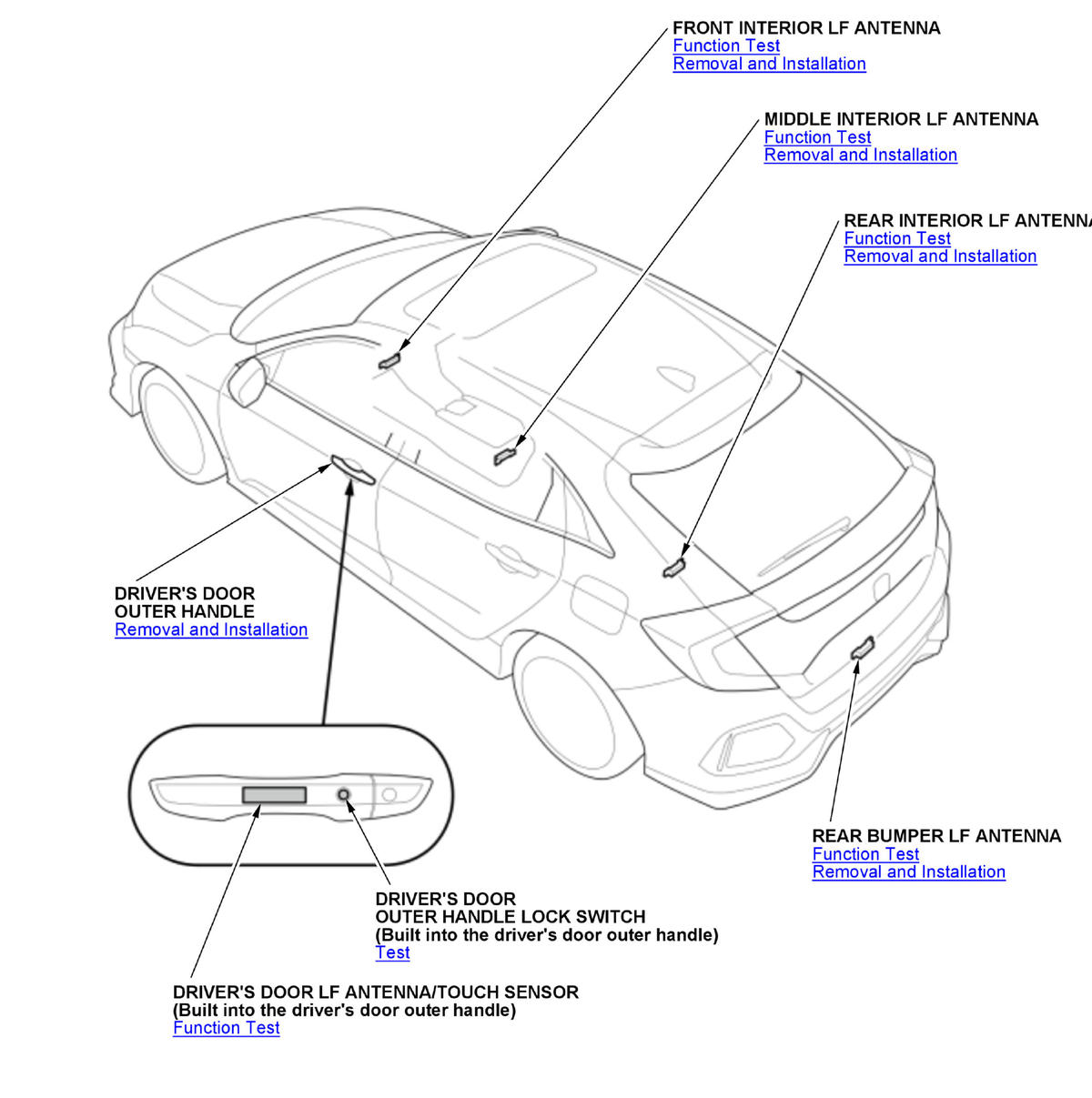

Courtesy of HONDA, U.S.A., INC.

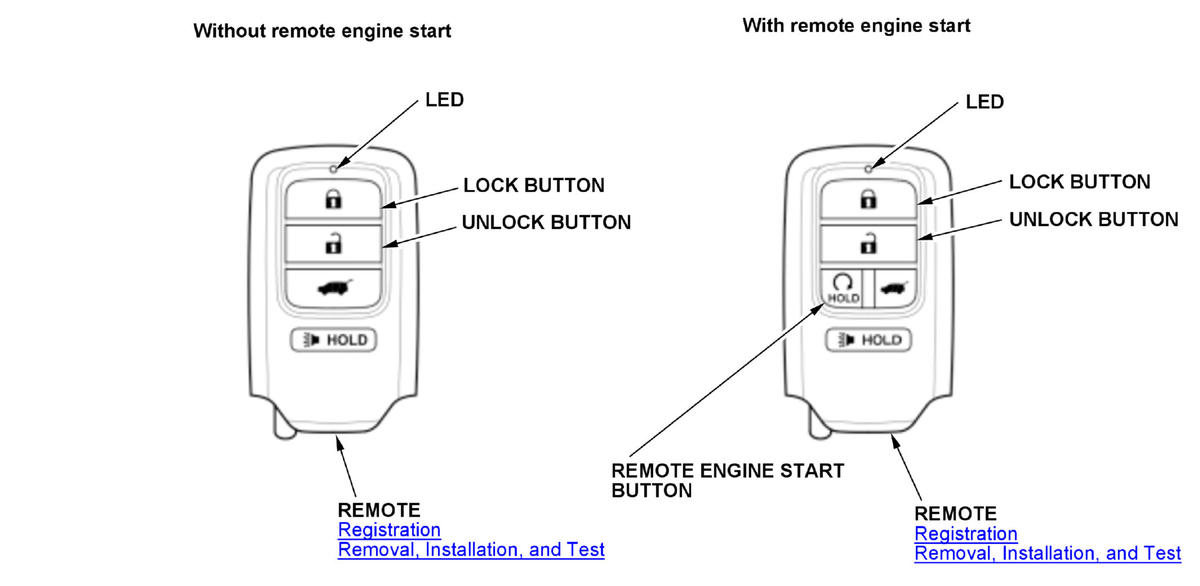

Courtesy of HONDA, U.S.A., INC.

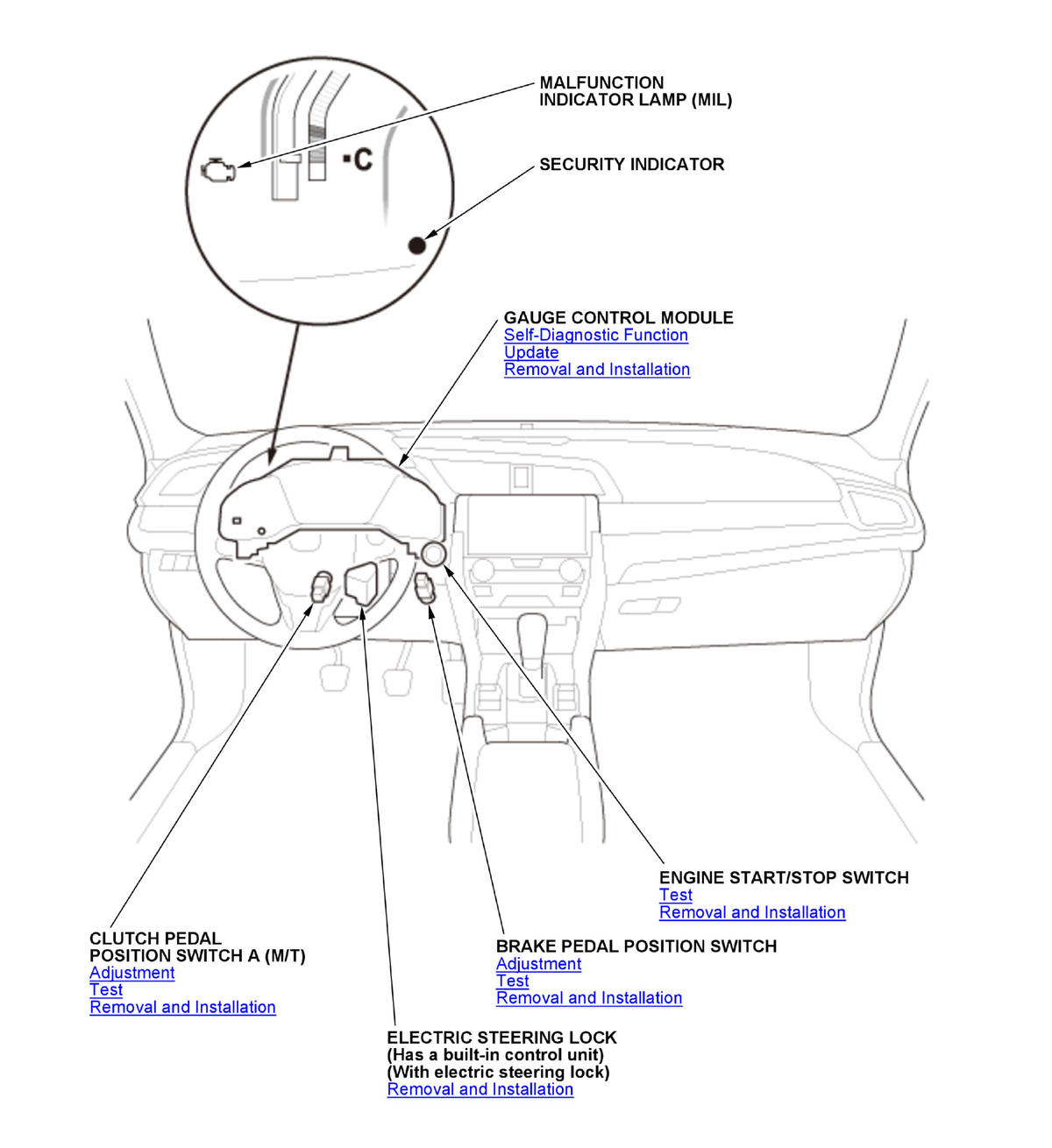

Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
