Hood Latch Switch: Test

  1. Front Grille Center Stay - Remove
  2. Hood Latch Switch - Test
    GHH420382GHH420383Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH420382GHH420383Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

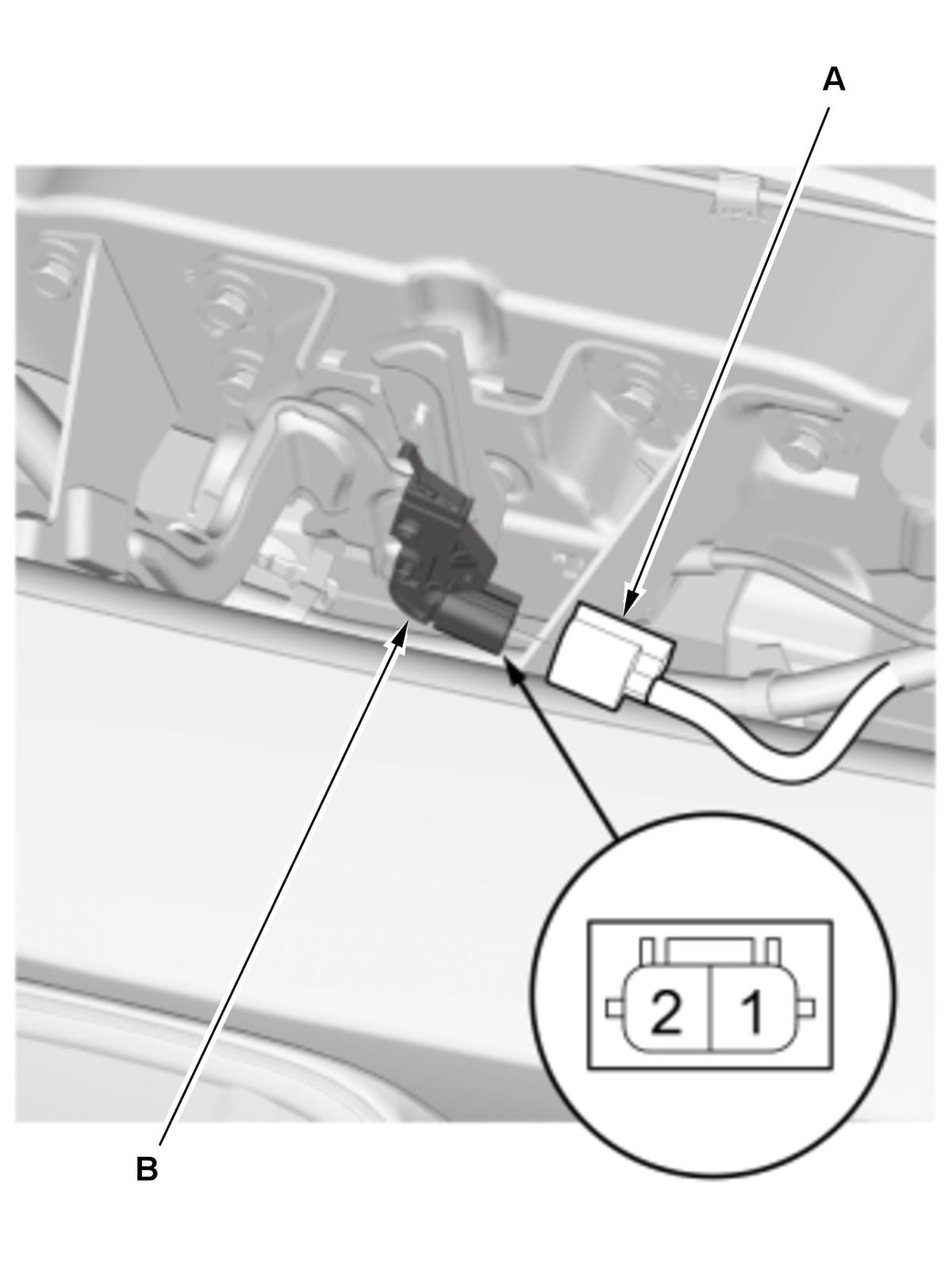

    		 1. Disconnect the connector (A).

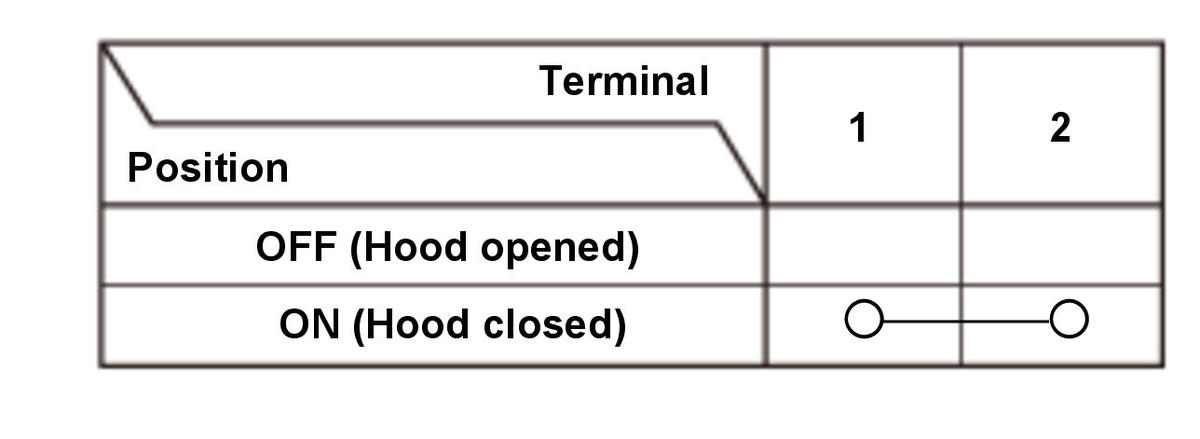

    2. Check for continuity between the terminals in each switch position according to the table.

    3. If the continuity is not as specified, the hood latch switch is faulty; replace the hood latch

    (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
