Removal and Installation

NOTE:  Where icon is shown for further information continue to the information below.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)

1. Driver's Heater Duct B - Remove

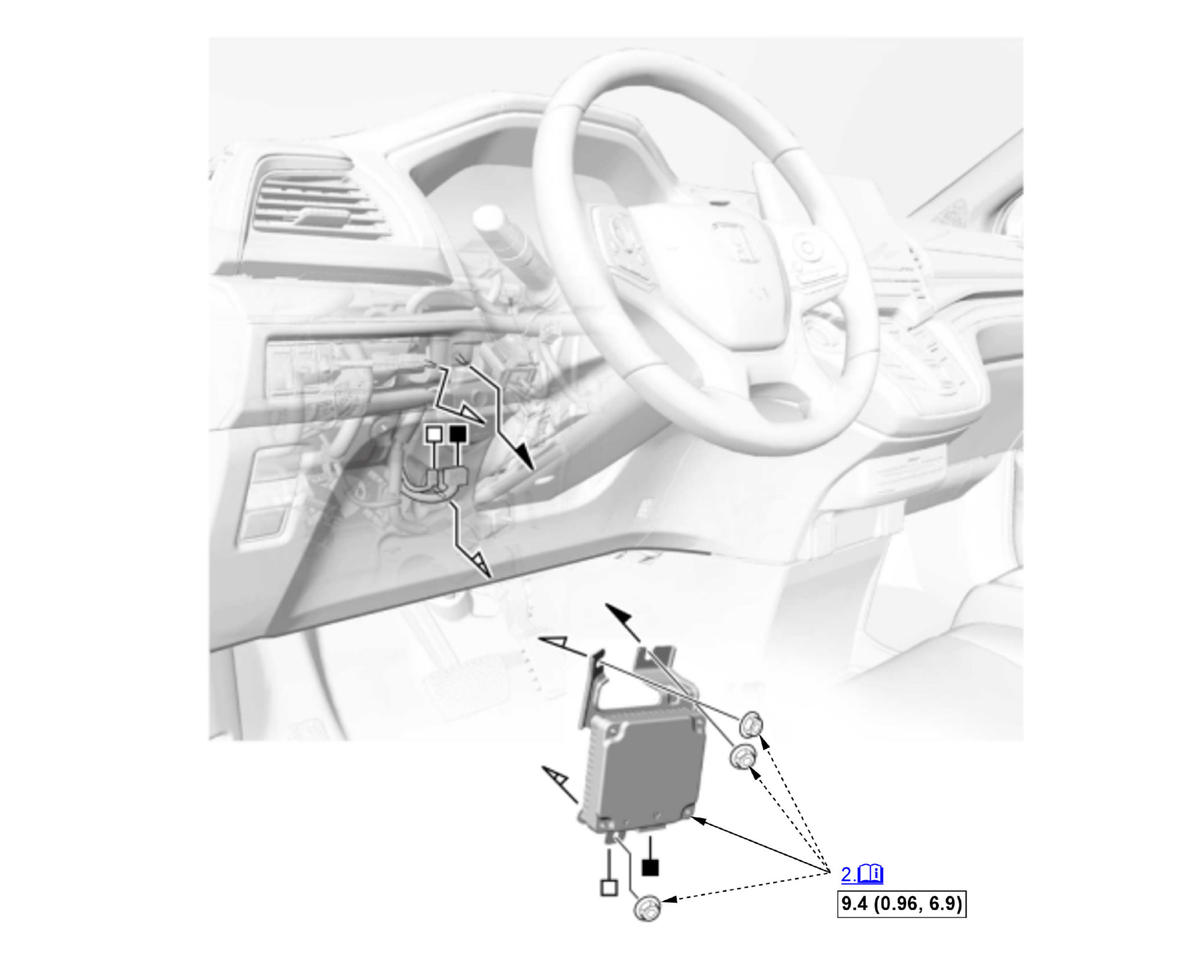

2. DC-DC Converter - Remove

   Courtesy of HONDA, U.S.A., INC.

   Note for installation

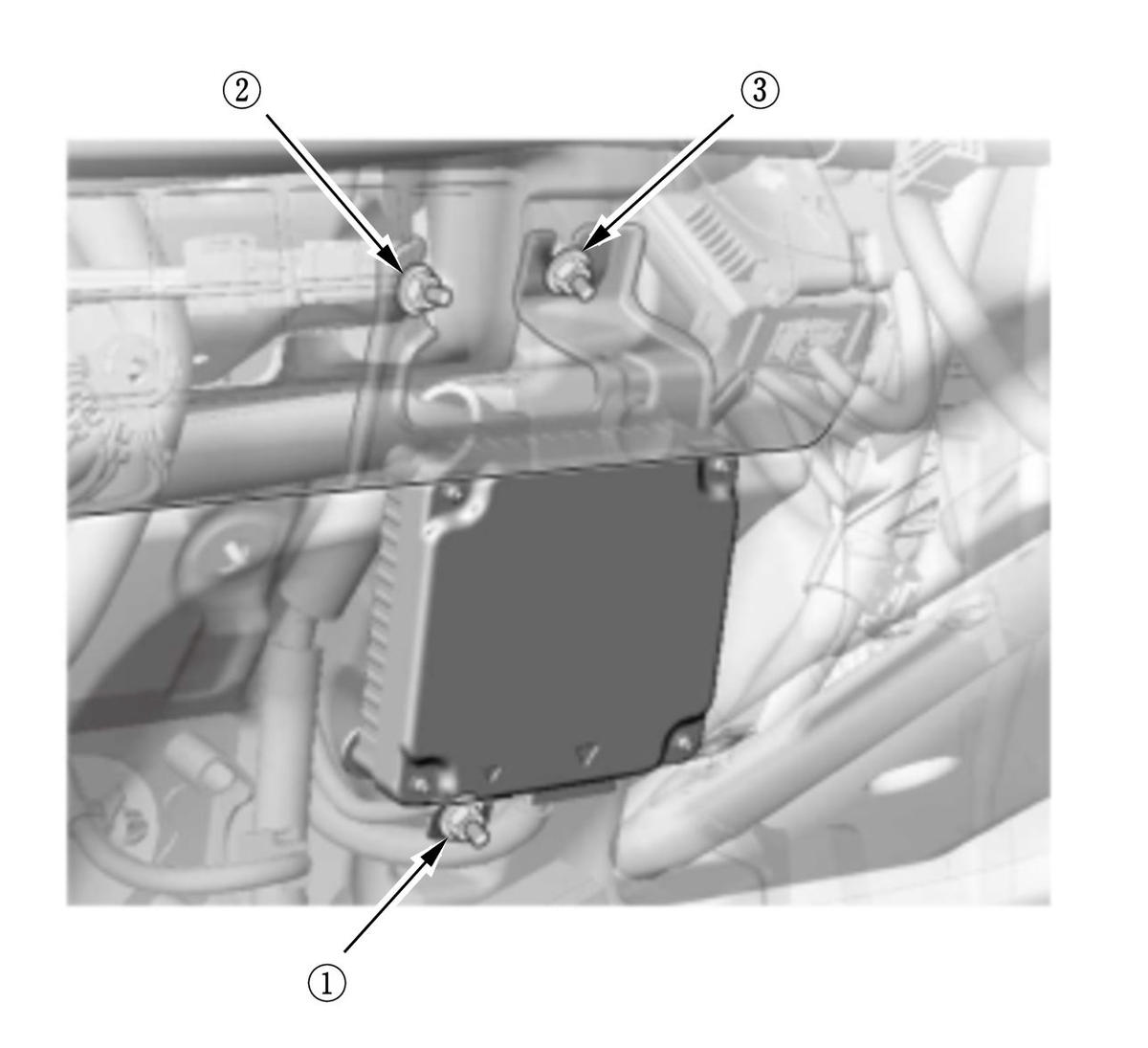

   Tighten the DC-DC converter mounting nuts in the numbered sequence shown.

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
