Removal and Installation

NOTE:  Where icon is shown for further information continue to the information below.

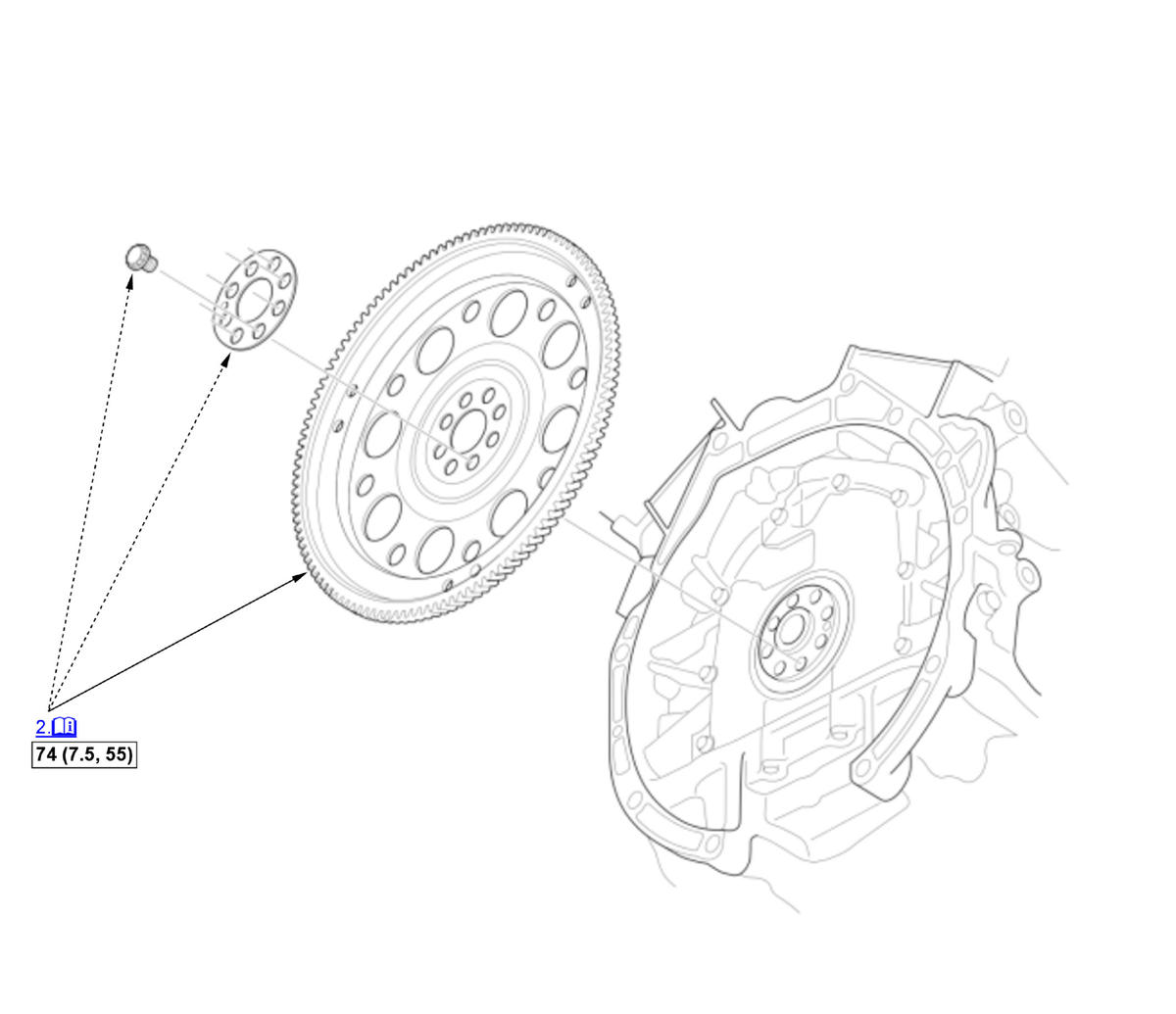

Fig 1: Drive Plate Bolt With Torque Specifications (10-Speed A/T)

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)

1. Transmission - Remove
2. Drive Plate - Remove

   Note for installation

   Tighten the drive plate bolts in a crisscross pattern in at least two steps.

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
