Removal and Installation

NOTE:  Although a numbered sequence is shown, these "*1" indicated parts are separate components. If removal or replacement of one of the components is needed, it is not necessary to remove the other.

Rocker Arm Oil Pressure Switch A (Bank 1)*1/Rocker Arm Oil Pressure Switch B (Bank 1)*1

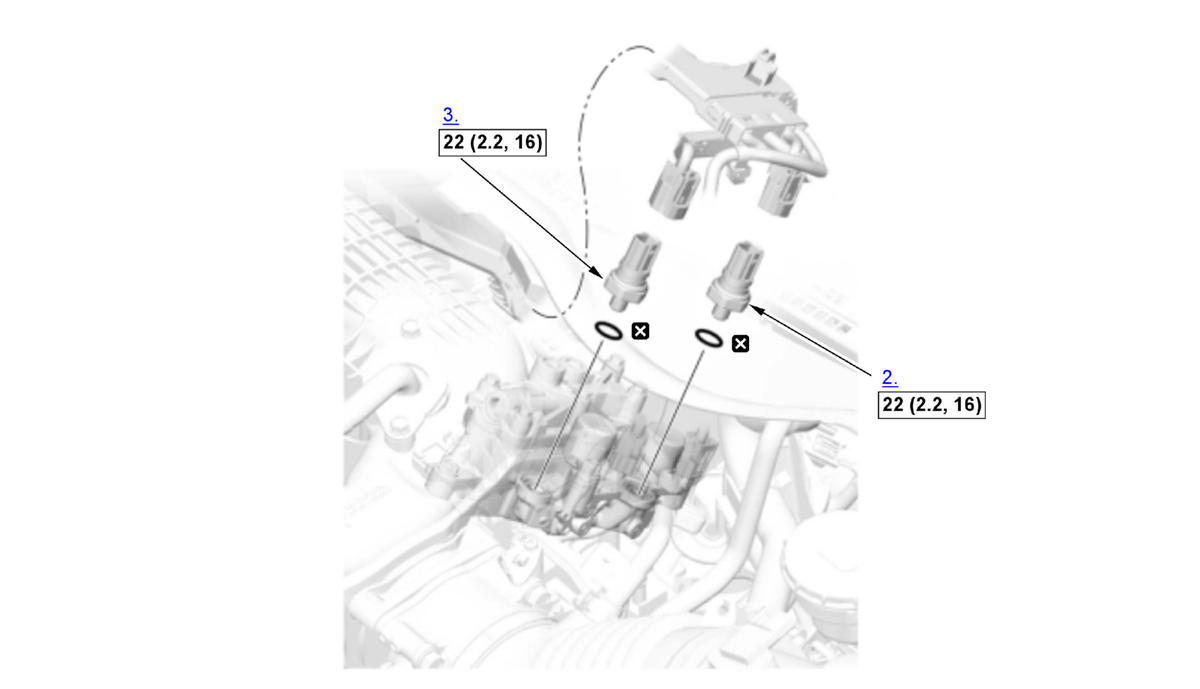

Fig 1: Rocker Arm Oil Pressure Switch A (Bank 1)/Rocker Arm Oil Pressure Switch B (Bank 1) Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

2

Rocker Arm Oil Pressure Switch A (Bank 2)*1

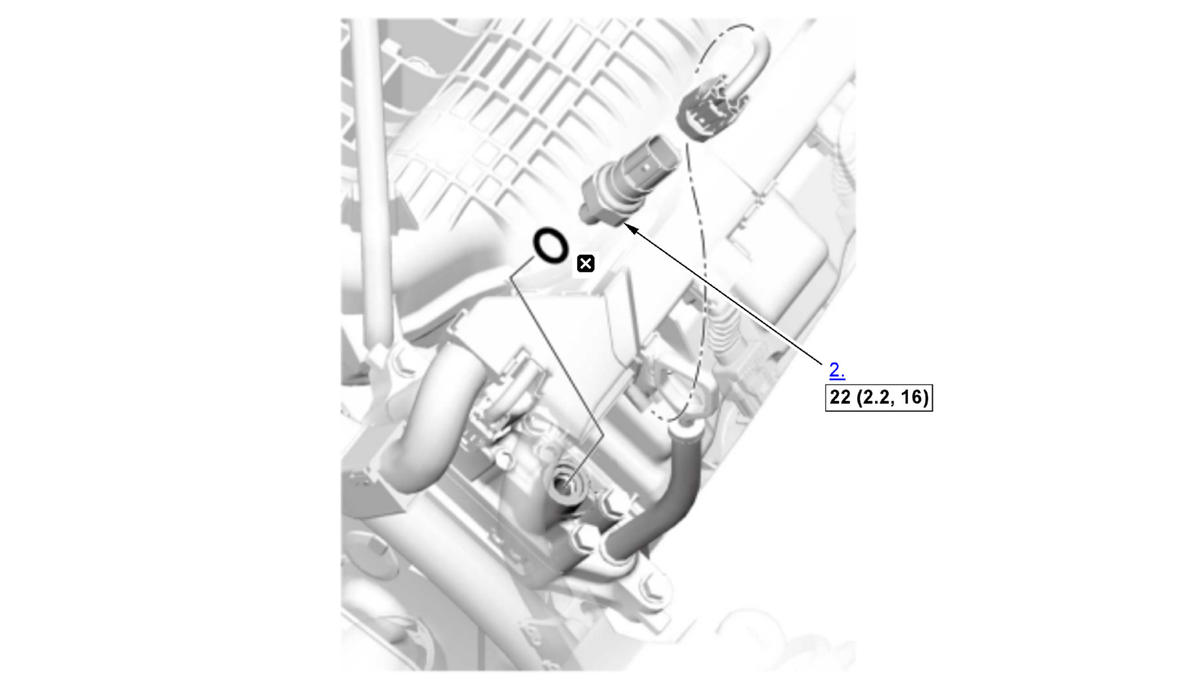

Fig 2: Rocker Arm Oil Pressure Switch A (Bank 2) Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

Rocker Arm Oil Pressure Switch A (Bank 1)/Rocker Arm Oil Pressure Switch B (Bank 1)

1. Engine Cover - Remove
2. Rocker Arm Oil Pressure Switch A (Bank 1) - Remove
3. Rocker Arm Oil Pressure Switch B (Bank 1) - Remove
4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

   Rocker Arm Oil Pressure Switch A (Bank 2)

5. Engine Cover - Remove
6. Rocker Arm Oil Pressure Switch A (Bank 2) - Remove
7. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
