Removal and Installation

NOTE:

• Where icon is shown for further information continue to the information below.
• Although a numbered sequence is shown, these "*1" indicated parts are separate components. If removal or replacement of one of the components is needed, it is not necessary to remove the other.
• Due to the high temperatures of the exhaust system, the exhaust nut, studs and bolts may seize preventing easy removal. If you encounter a seized condition, do the following.
  • Apply rust penetrant to the nut/stud or bolt.
  • Allow the penetrant to sit. The amount of time may vary.
  • Lightly tap the nut/stud or bolt with a hammer.
  • Slowly loosen the nut or bolt.
  • If the nut or bolt still will not loosed, repeat steps to .

Under-Floor TWC*1

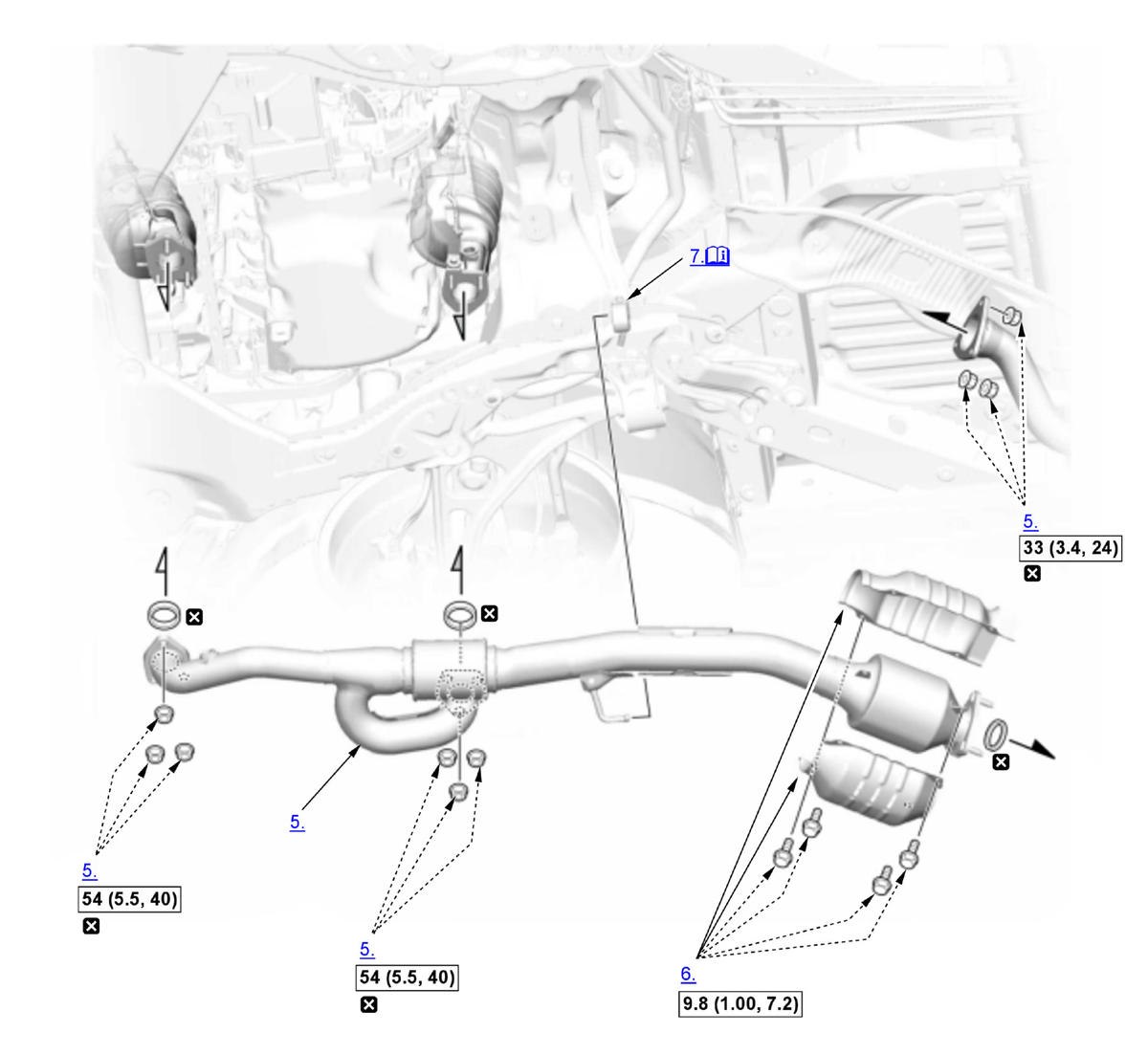

Fig 1: Catalytic Converter Bolts With Torque Specifications (Under-Floor TWC)

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

Front Bank (Bank 2)*1

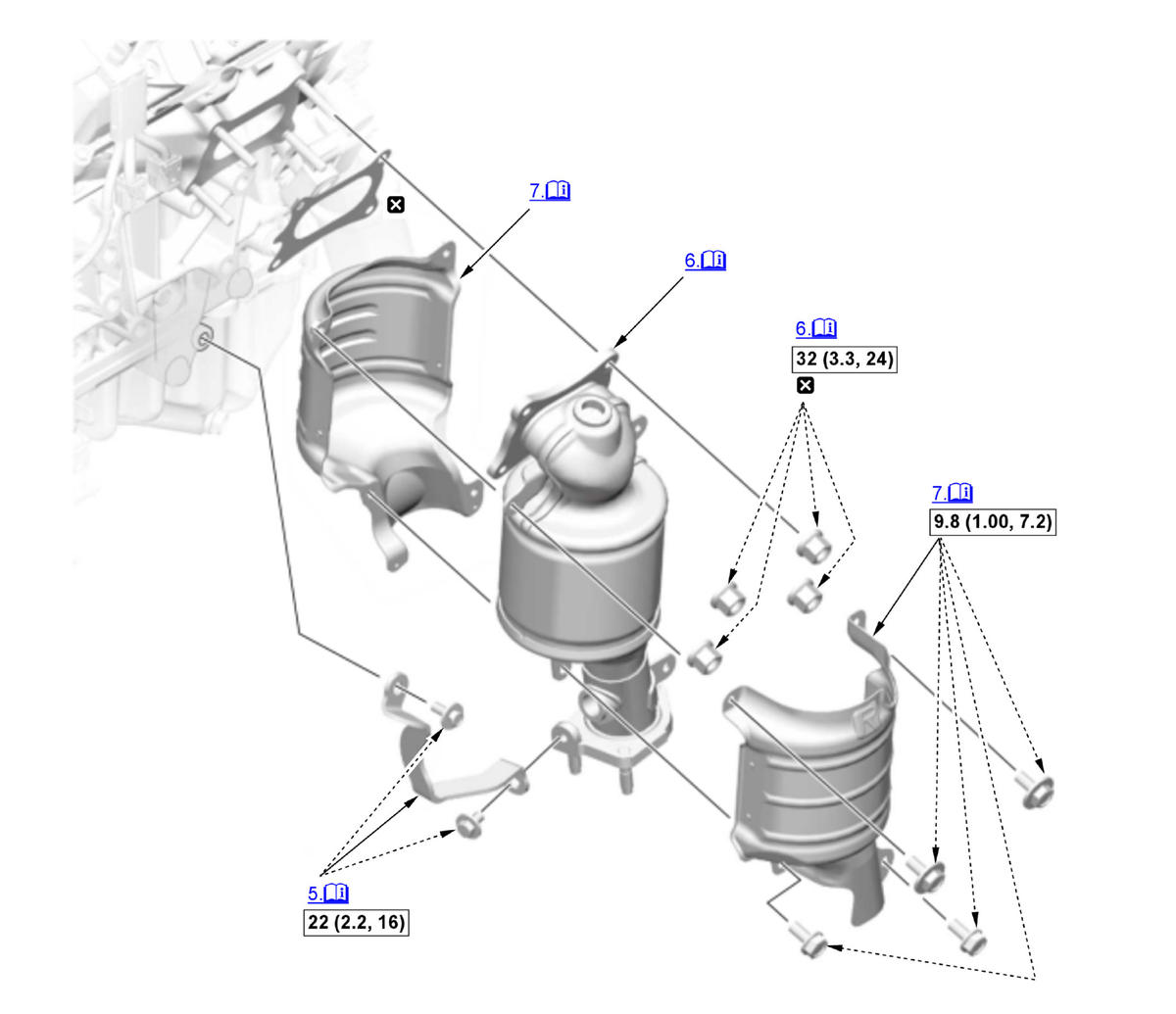

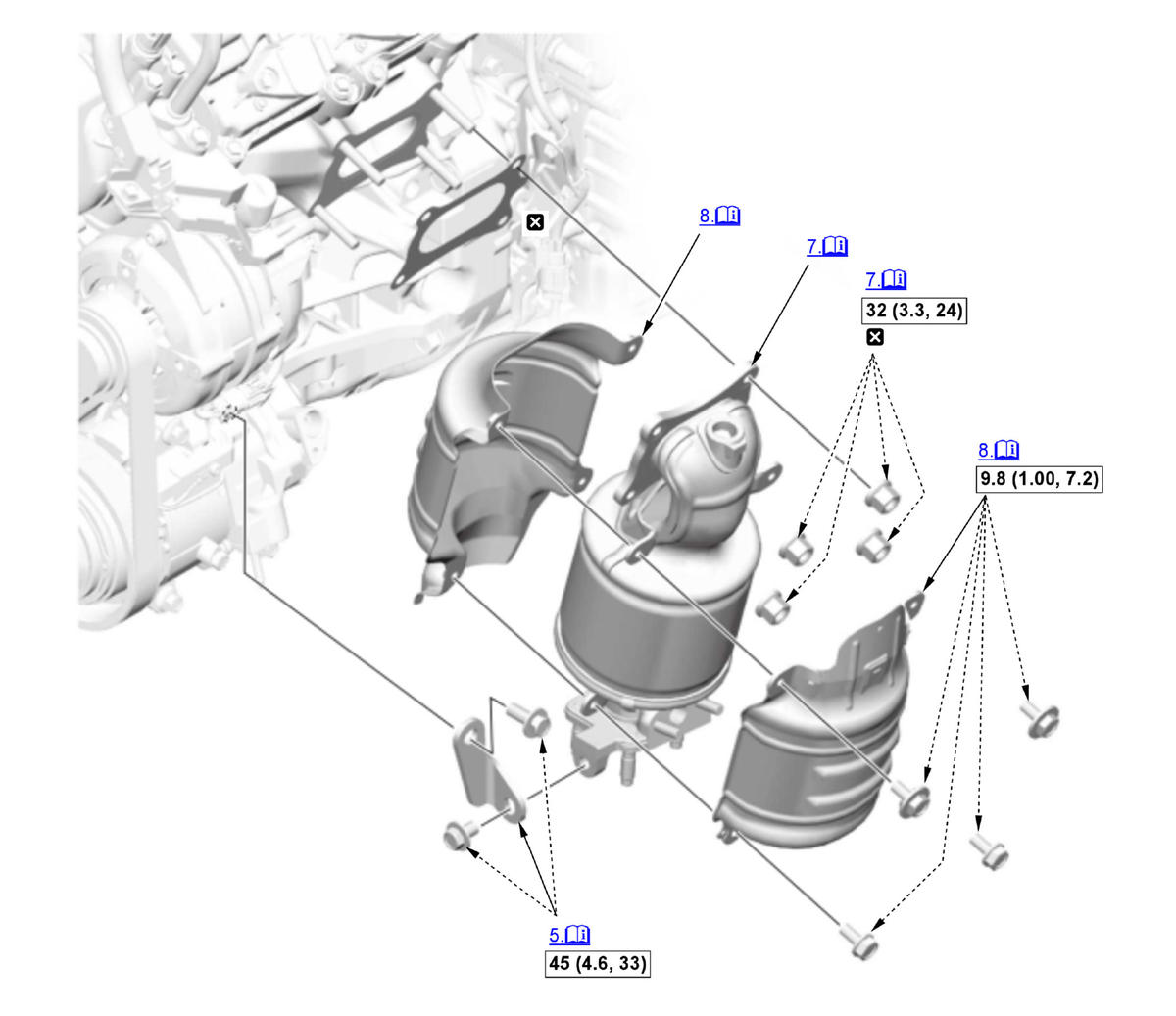

Fig 2: Catalytic Converter Bolts With Torque Specifications (Front Bank (Bank 2))

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

Rear Bank (Bank 1)*1

Fig 3: Catalytic Converter Bolts With Torque Specifications (Rear Bank (Bank 1))

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

Under-Floor TWC

1. Engine Undercover - Remove
2. Transmission Undercover - Remove
3. Front Subframe Stiffener Plate - Remove
4. Front Secondary HO2S (Sensor 2) - Remove
5. Under-Floor TWC Assembly - Remove
6. Under-Floor TWC Cover - Remove (if needed)
7. Mounting Rubber - Remove (If needed)

   Note for installation

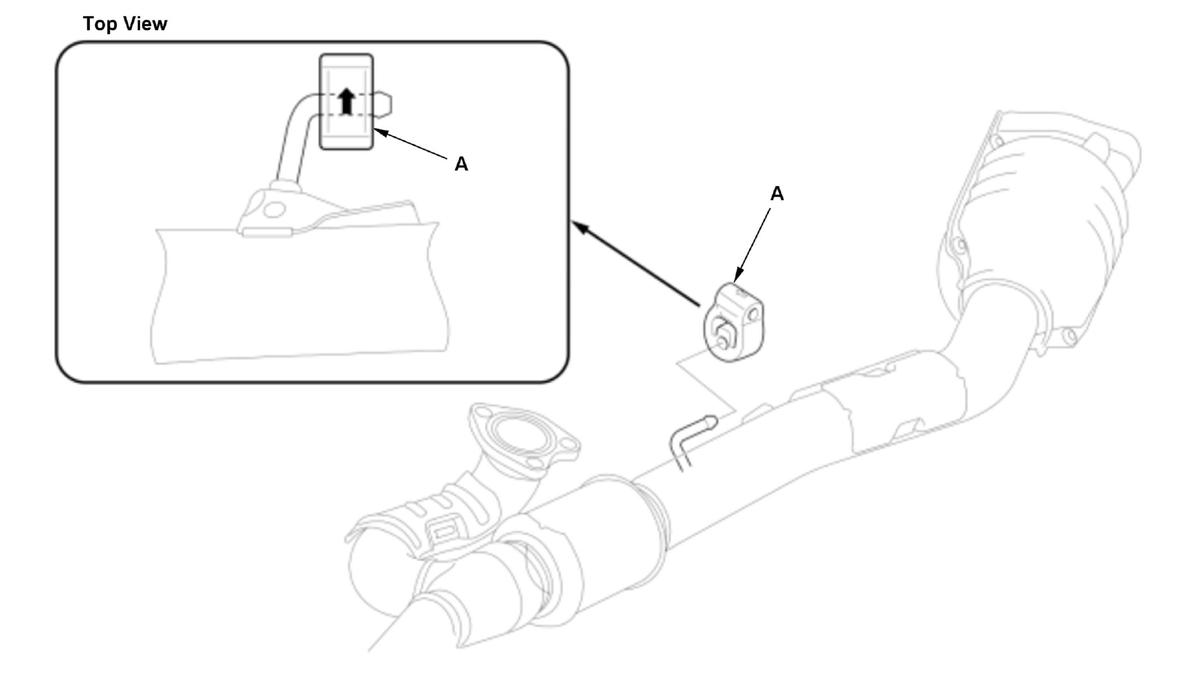

   Make sure the direction of the mounting rubber (A) is as shown.

   Courtesy of HONDA, U.S.A., INC.

8. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

Front Bank (Bank 2)

1. Engine Cover - Remove
2. EGR Pipe A - Remove
3. Front A/F Sensor (Sensor 1) - Remove
4. Under-Floor TWC - Remove

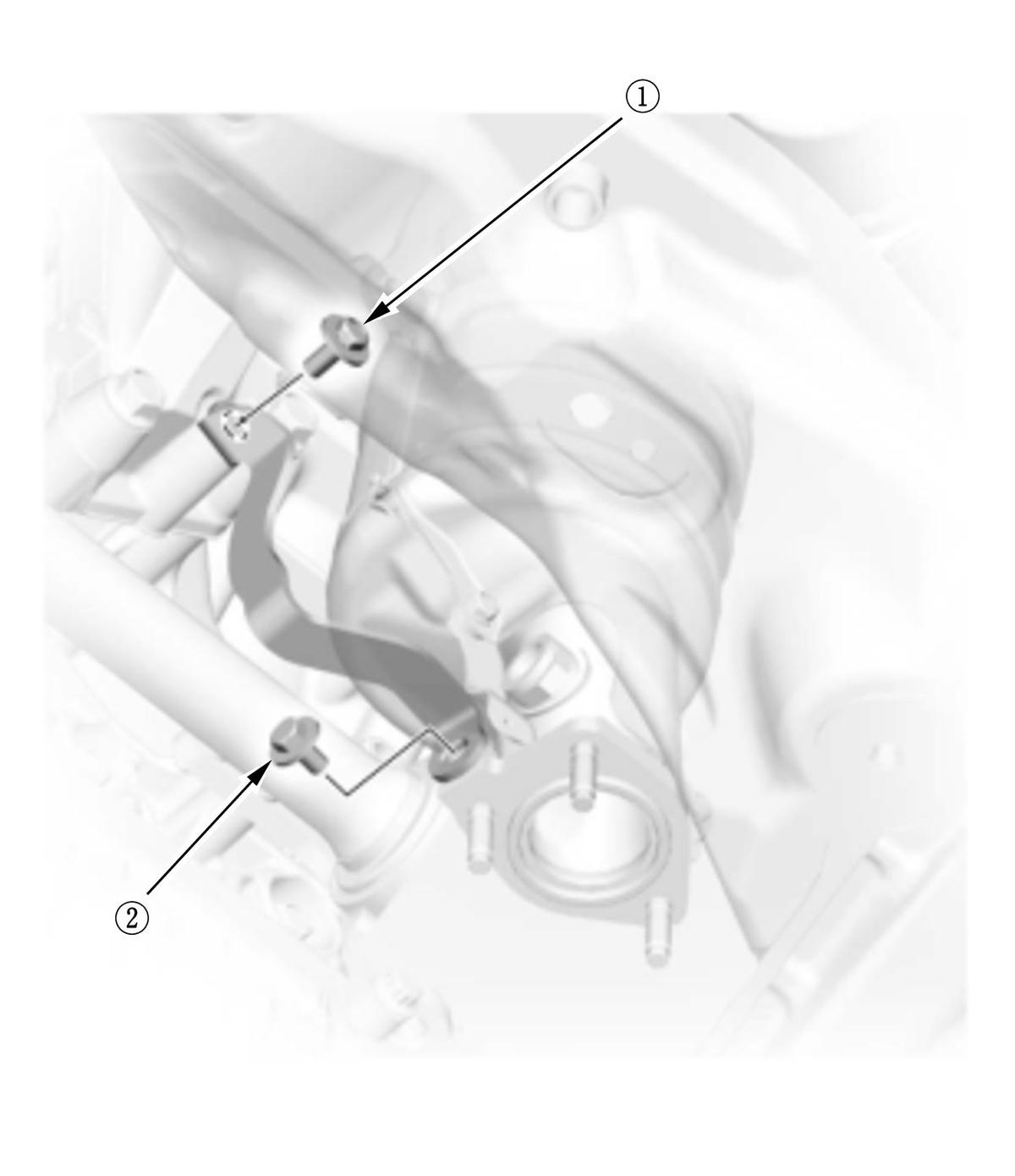

5. Front WU-TWC Bracket - Remove

   Courtesy of HONDA, U.S.A., INC.

   Note for installation

   • Before installing the WU-TWC bracket, confirm the bolts and nuts fixing the WU-TWC to the cylinder head are tightened to the specified torque.
   • Tighten the WU-TWC bracket mounting bolts in the numbered sequence shown.
6. A/C Condenser Fan Shroud Assembly - Remove
7. Front WU-TWC Assembly - Remove

   NOTE:  Carefully remove the front WU-TWC assembly.

8. WU-TWC Cover - Remove (if needed)

   Note for installation

   Before installing the WU-TWC, install the WU-TWC covers.

9. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

Rear Bank (Bank 1)

1. Stabilizer Link (Right Side) - Remove
2. Under-Floor TWC - Remove
3. Rear A/F Sensor (Sensor 1) - Remove
4. Rear Secondary HO2S (Sensor 2) - Remove

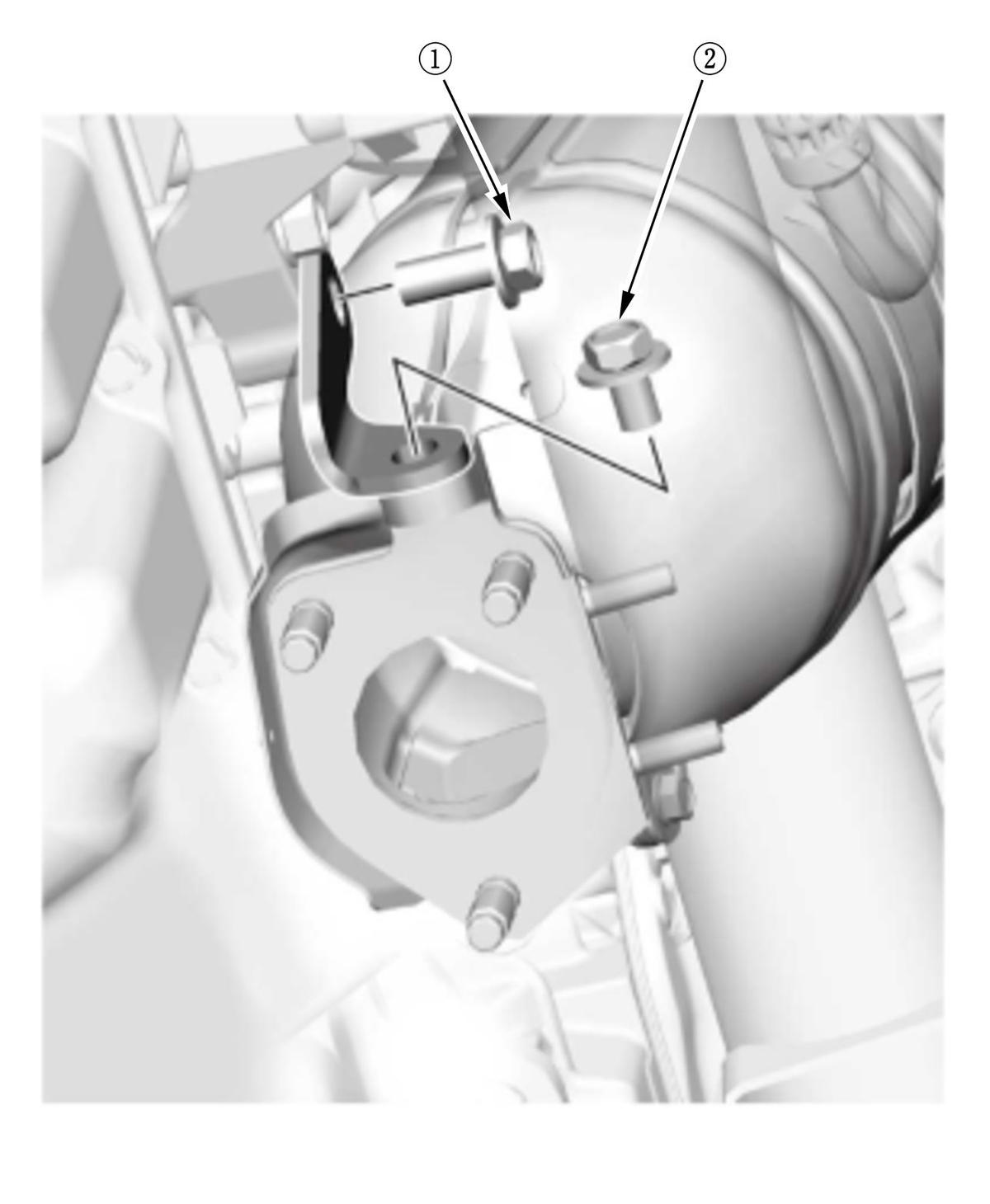

5. Rear WU-TWC Bracket - Remove

   Courtesy of HONDA, U.S.A., INC.

   Note for installation

   • Before installing the WU-TWC bracket, confirm the bolts and nuts fixing the WU-TWC to the cylinder head are tightened to the specified torque.
   • Tighten the WU-TWC bracket mounting bolts in the numbered sequence shown.
6. Rear WU-TWC - Remove

   Courtesy of HONDA, U.S.A., INC.

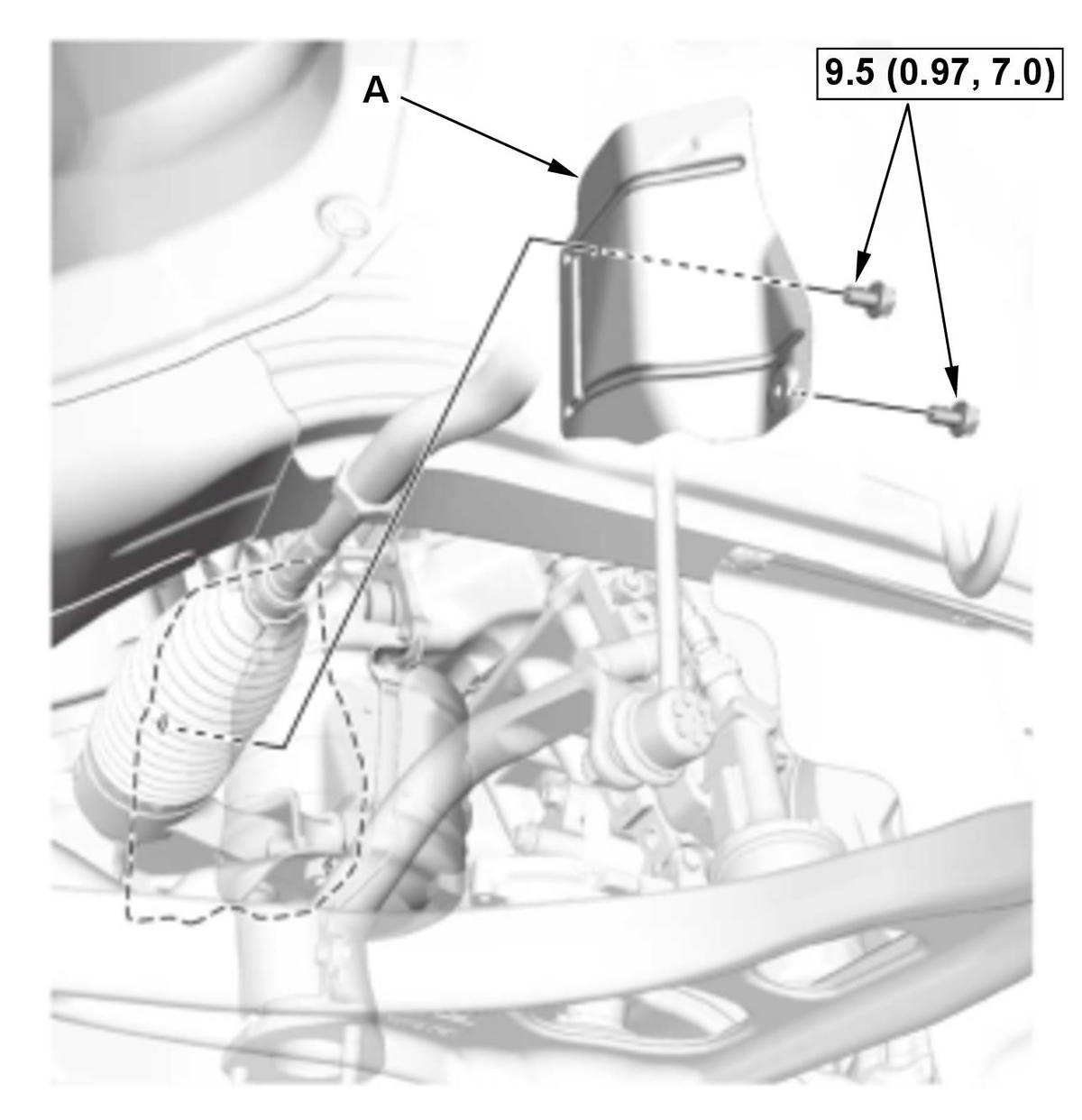

   1. Remove the steering gearbox heat shield (A).

   Courtesy of HONDA, U.S.A., INC.

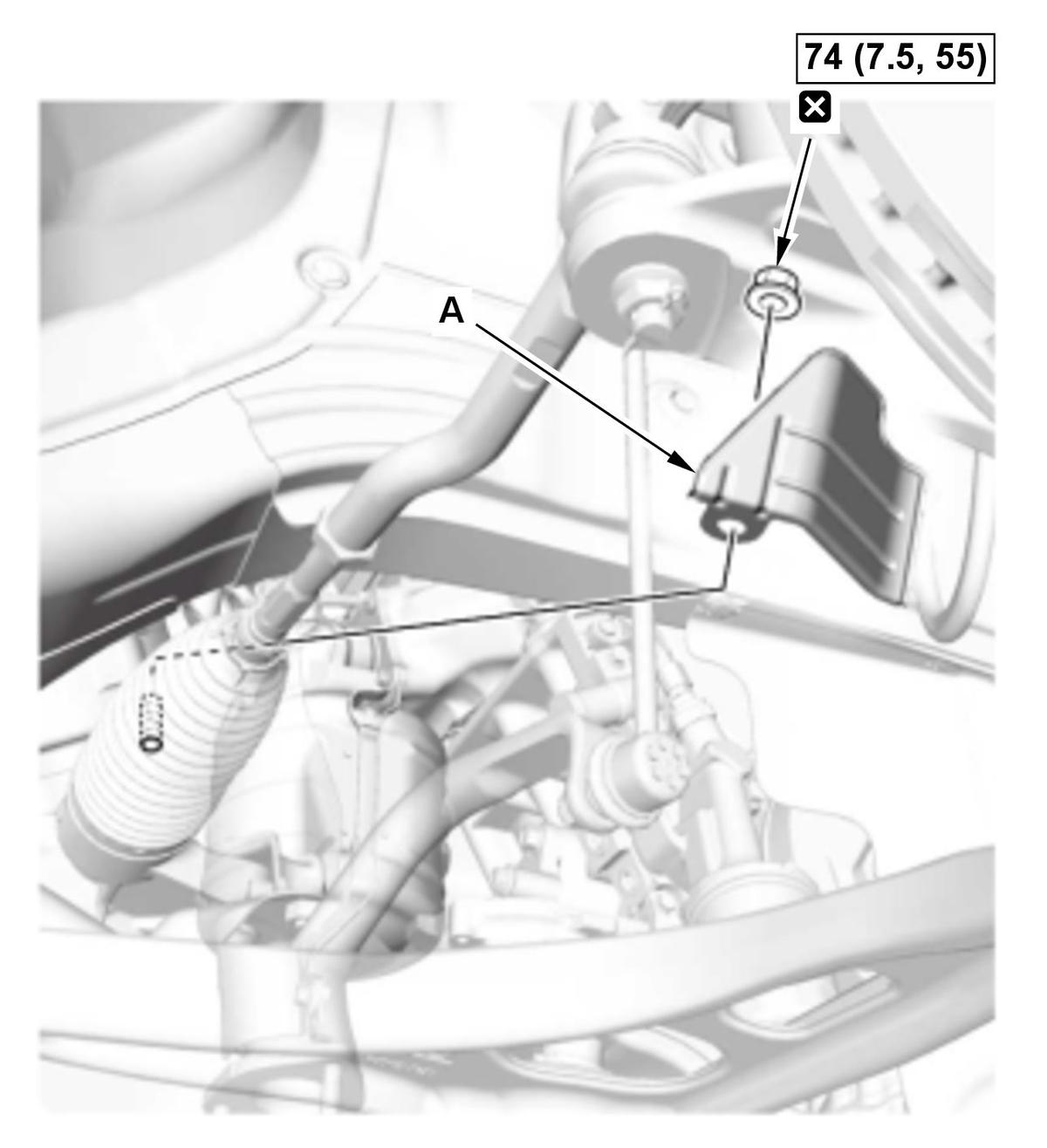

   2. Remove the rear engine mount heat shield (A).

   Courtesy of HONDA, U.S.A., INC.

   3. Remove the nuts (A), and move the WU-TWC (B) as shown.

   Courtesy of HONDA, U.S.A., INC.

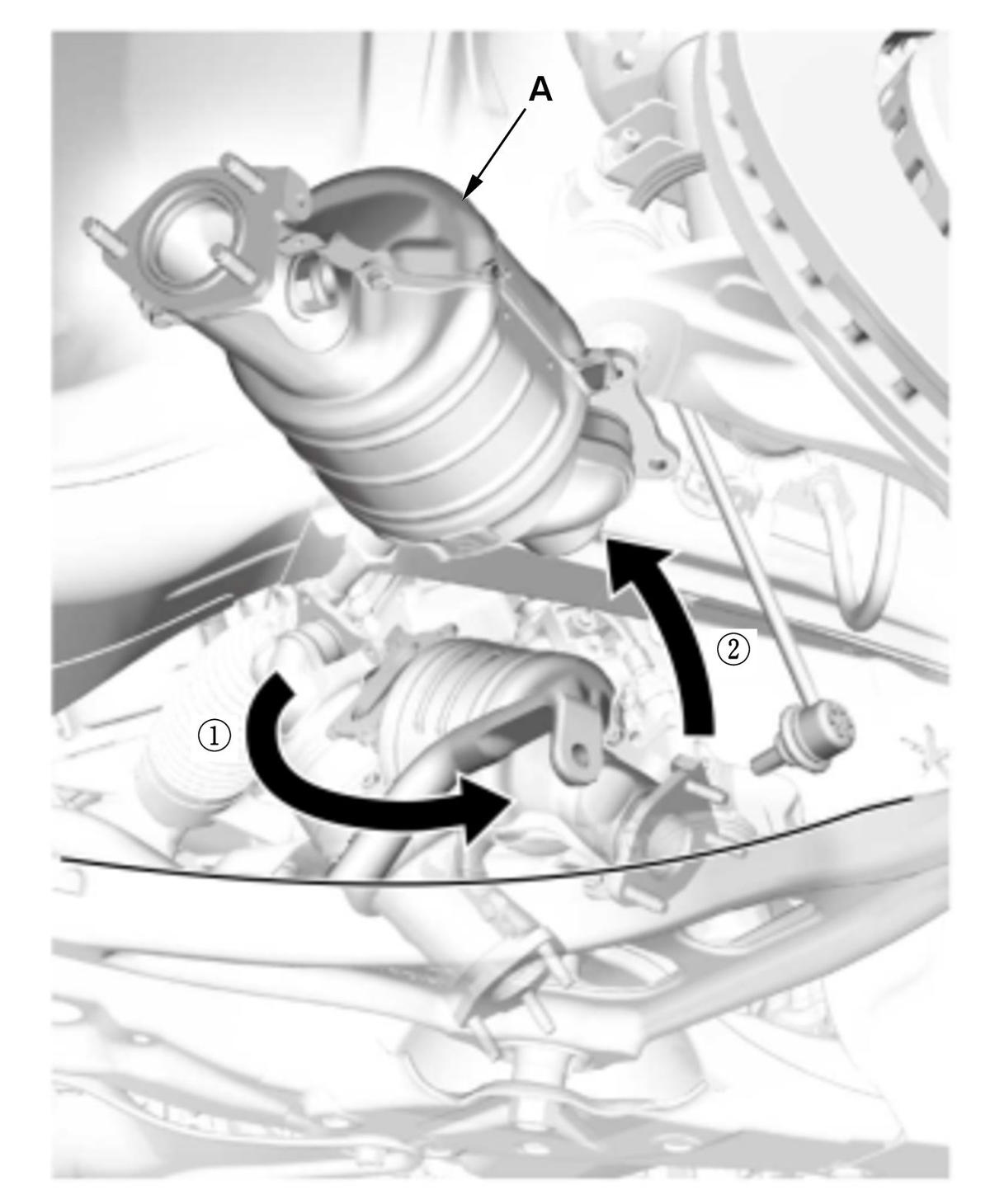

   4. Turn the WU-TWC (A), then take it out by turning it in the numbered sequence as shown.

7. WU-TWC Cover - Remove (if needed)

   Note for installation

   Before installing the WU-TWC, install the WU-TWC covers.

8. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
