DTC P1711

DTC P1711: Park Pawl Unit Malfunction

General Description

Courtesy of HONDA, U.S.A., INC.

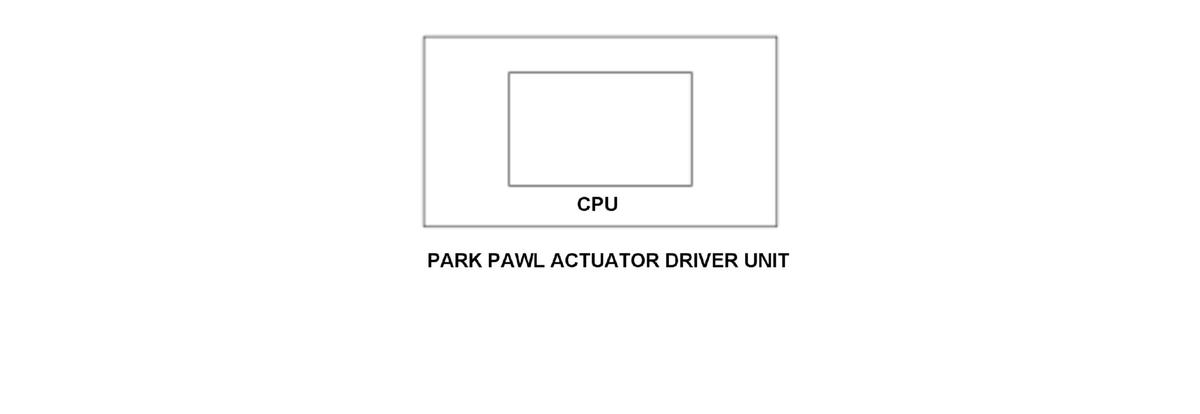

The park pawl actuator driver unit controls shifting/releasing of the park pawl actuator to/from the P position. The park pawl actuator driver unit monitors the malfunctions of the built-in CPU. If abnormal behavior of the CPU continues to be detected for a specified length of time or more, the powertrain control module (PCM) receives malfunction from the park pawl actuator driver unit, and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	-
Sequence	None
Duration	96 milliseconds or more
DTC Type	One drive cycle, MIL on, Shift position indicator blinks

Enable Conditions

Condition
Vehicle	ON mode

Malfunction Threshold

Abnormal behavior of the CPU built in the park pawl actuator driver unit continues to be detected for at least 96 milliseconds.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Park pawl actuator driver unit internal failure

Confirmation Procedure

Operating Condition

Turn the vehicle to the ON mode, and wait for at least 10 seconds.

With the HDS

None.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on, the shift position indicator blinks and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.

Conditions for clearing the DTC

The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
