DTC P2647

DTC P2647  : Rocker Arm Oil Pressure Switch Circuit High Voltage

DTC (PGM-FI)

1. Oil level check

   -1. Check the engine oil level .

   Is the level OK?

   YES

   Go to step 2.

   NO

   Adjust the engine oil to the proper level .

2. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Do the VTEC TEST in the Function Test Menu with the HDS.

   VTEC TEST

   Is the result OK?

   YES

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the rocker arm oil pressure switch and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

   NO

   The failure is duplicated. Go to step 3.

3. Rocker arm oil pressure switch internal circuit check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Rocker arm oil pressure switch 2P connector

   -3. At the rocker arm oil pressure switch side, check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rocker arm oil pressure switch 2P connector: disconnected

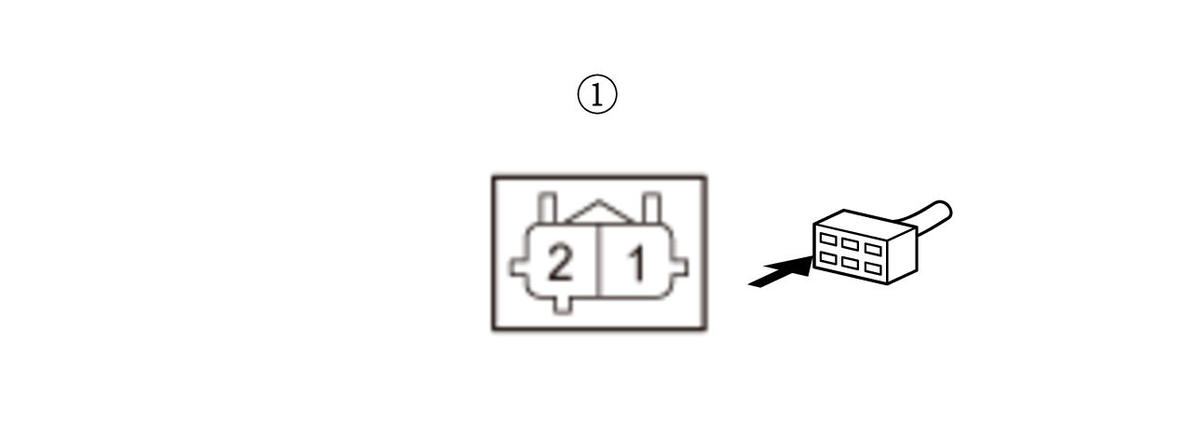

   Test point 1	Rocker arm oil pressure switch 2P connector (male terminals) No. 1 (switch side):
   Test point 2	Rocker arm oil pressure switch 2P connector (male terminals) No. 2 (switch side):

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 4.

   NO

   Replace the rocker arm oil pressure switch .

4. Open wire check (VTM line)

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   -2. Disconnect the following connector.

   PCM connector E (80P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rocker arm oil pressure switch 2P connector: disconnected
   	PCM connector E (80P): disconnected

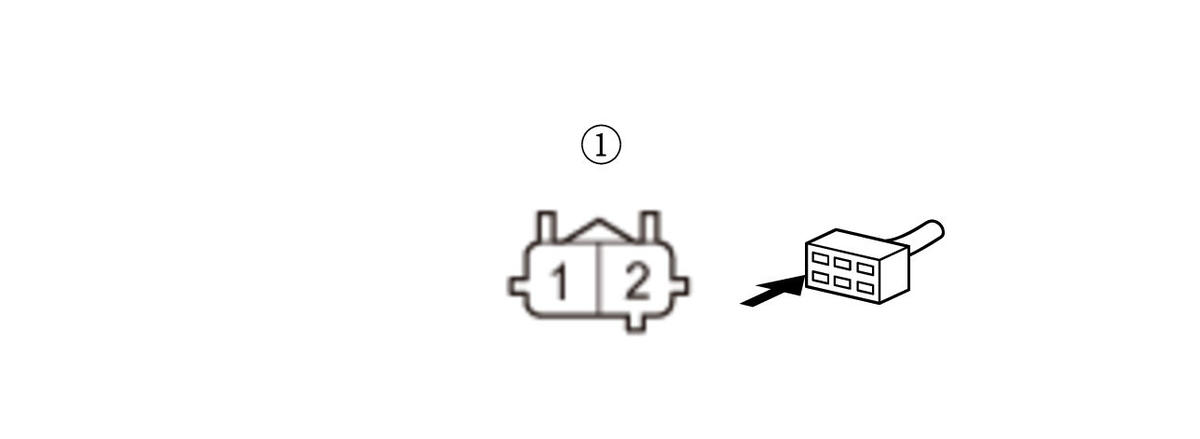

   Test point 1	Rocker arm oil pressure switch 2P connector (female terminals) No. 2:
   Test point 2	PCM connector E (80P) No. 59

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 5.

   NO

   Repair an open in the VTM wire between the PCM (E59) and the rocker arm oil pressure switch.

5. Open wire check (LG line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rocker arm oil pressure switch 2P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	Rocker arm oil pressure switch 2P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The LG wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P2647 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the LG wire between the rocker arm oil pressure switch and G101.
