Rearview Camera Connector for Inputs and Outputs

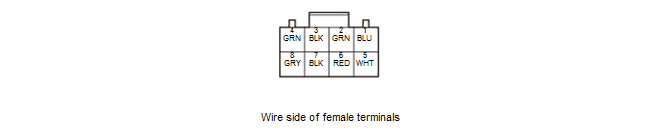

REARVIEW CAMERA 8P CONNECTOR
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | CAMERA BIT1 | Mode select signal for rearview camera |
| 2 | CAMERA BIT0 | Mode select signal for rearview camera |
| 3 | RC VCC | Power source for rearview camera |
| 4 | RC GND | Ground for rearview camera |
| 5 | CAMERA V GND | Ground for video signal |
| 6 | CAMERA V | Video signal for rearview camera |
| 7 | CAMERA ADPT | Detects connection for rearview camera |
| 8 | SH CAMERA | Shield for terminals No. 3, No. 4, No. 5, and No. 6 |
