USB Adapter Connector for Inputs and Outputs

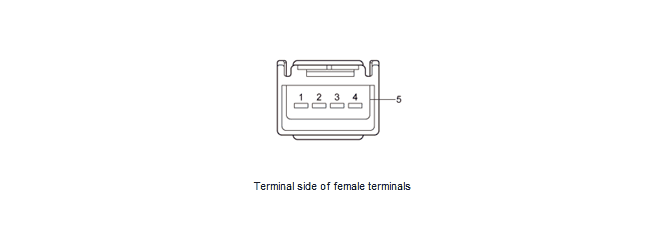

USB ADAPTER 5P CONNECTOR
Without Display Audio (7-inch screen)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | USB VBUS | Inputs power source for USB device |
| 2 | USB DATA- | Communication signal |
| 3 | USB DATA+ | Communication signal |
| 4 | USB GND | Ground for communication signal |
| 5 | USB SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
With Display Audio (7-inch screen)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | USB1 VBUS*1 USB2 VBUS*2 | Inputs power source for USB device |
| 2 | USB1 DATA-*1 USB2 DATA-*2 | Communication signal |
| 3 | USB1 DATA+*1 USB2 DATA+*2 | Communication signal |
| 4 | USB1 GND*1 USB2 GND*2 | Ground for communication signal |
| 5 | USB1 SH*1 USB2 SH*2 | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
| *1: USB adapter A |
| *2: USB adapter B |
