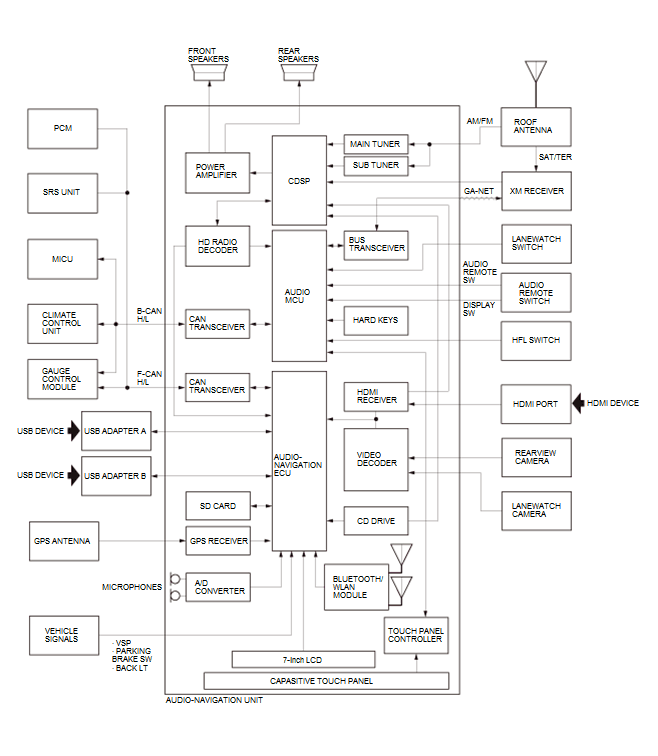

Navigation System Description - System Diagram
Courtesy of HONDA, U.S.A., INC.

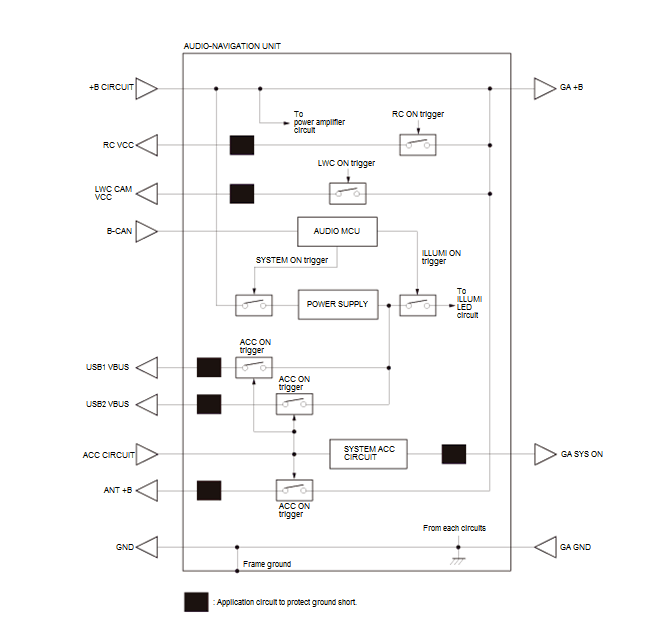

Power Supply Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
