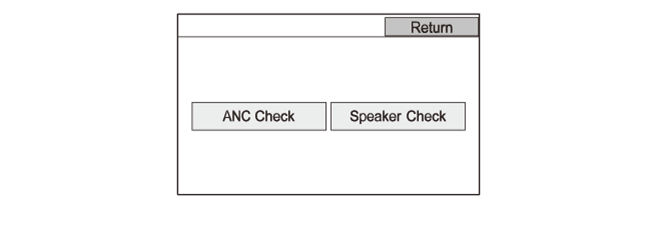

Audio Check
These screens allow you to troubleshoot the audio function. The ANC Check is not supported in this model.

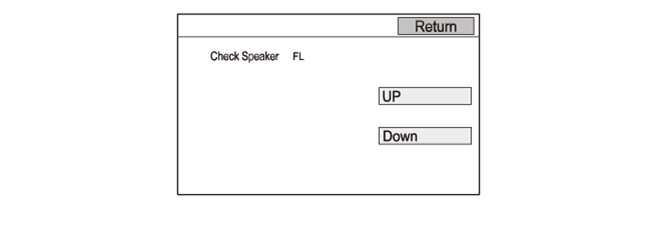

Speaker Check
NOTE:
- Make sure the audio system is off before this diagnosis.
- While doing the diagnosis, the fader and the balance positions are set to the center.
This diagnosis checks the audio speakers individually.
This diagnosis checks the audio speakers individually. Select the UP icon or the Down icon to check speakers. A tone should sound from the speaker.
| Each time you select the Up icon, the system checks the speakers in this order: (1)→(2)→(3)→(4)→(5)→(6)→(7)→(1) |
| Each time you select the Down icon, the system checks the speakers in this order: (1)→(7)→(6)→(5)→(4)→(3)→(2)→(1) |
| Display Message | Vehicle Test Condition | |
|---|---|---|
| (1) | FL | You should hear a tone from the driver's door speaker. |
| (2) | FR | You should hear a tone from the front passenger's door speaker. |
| (3) | RR | You should hear a tone from the right rear door speaker. |
| (4) | RL | You should hear a tone from the left rear door speaker. |
| (5) | FL-TW | You should hear a tone from the left front tweeter. |
| (6) | FR-TW | You should hear a tone from the right front tweeter. |
| (7) | All | You should hear a tone from all speakers. |
