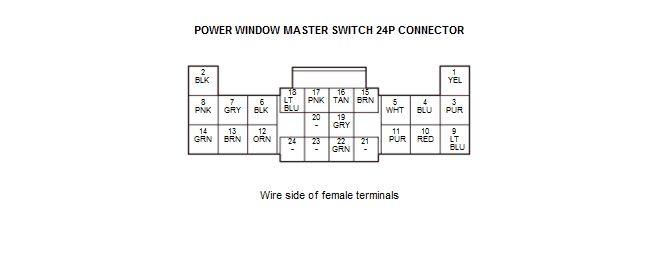

Power Window Master Switch Connector for Inputs and Outputs

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W RR L SW UP	Drives left rear power window motor	With left rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
2	GND	Ground for power window master switch	Less than 0.2 V at all times
3	P/W RR L SW DOWN	Drives left rear power window motor	With left rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
4	+B P/W RR L	Power source for left rear power window switch	With MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V
5	+B P/W DR	Power source for power window master switch	About battery voltage at all times
6	GND	Ground for power window master switch	Less than 0.2 V at all times
7	P/W DR MTR DOWN	Drives driver's power window motor	With driver's power window moving to DOWN: about battery voltage If none of above conditions are met: less than 0.2 V
8	P/W DR MTR UP	Drives driver's power window motor	With driver's power window moving to UP: about battery voltage If none of above conditions are met: less than 0.2 V
9	P/W RR R SW UP	Drives right rear power window motor	With right rear power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
10	P/W RR R SW DOWN	Drives left rear power window motor	With right rear power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
11	+B P/W RR R	Power source for right rear power window switch	With MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V
12	P/W AS SW UP	Drives front passenger's power window motor	With front passenger's power window moving to UP using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
13	P/W AS SW DOWN	Drives front passenger's power window motor	With front passenger's power window moving to DOWN using power window master switch: about battery voltage If none of above conditions are met: less than 0.2 V
14	+B P/W AS	Power source for front passenger's power window switch	With MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V
15	P/W DR MTR VCC	P/W DR MTR VCC signal	With MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V
16	P/W DR MTR PLSB	P/W DR MTR PLSB signal	- - -

Terminal number	Terminal name	Description	Signal
17	P/W DR MTR PLSA	P/W DR MTR PLSA signal	- - -
18	P/W DR MTR SGND	P/W DR MTR SGND signal	Less than 0.2 V at all times
19	ILLUMI+	Detects ILLUMI+ signal	With parking lights are ON: about battery voltageWith parking lights are OFF: less than 0.2 V
20	Not used	- - -	- - -
21	Not used	- - -	- - -
22	ILL- (LED)	Detects ILL- (LED) signal	- - -
23	REMOTE SW UNLOCK	Detects REMOTE SW UNLOCK signal	With driver's door lock switch LOCK: about battery voltageWith driver's door lock switch UNLOCK: less than 0.2 V
24	REMOTE SW LOCK	Detects REMOTE SW LOCK signal	With driver's door lock switch UNLOCK: about battery voltageWith driver's door lock switch LOCK: less than 0.2 V
