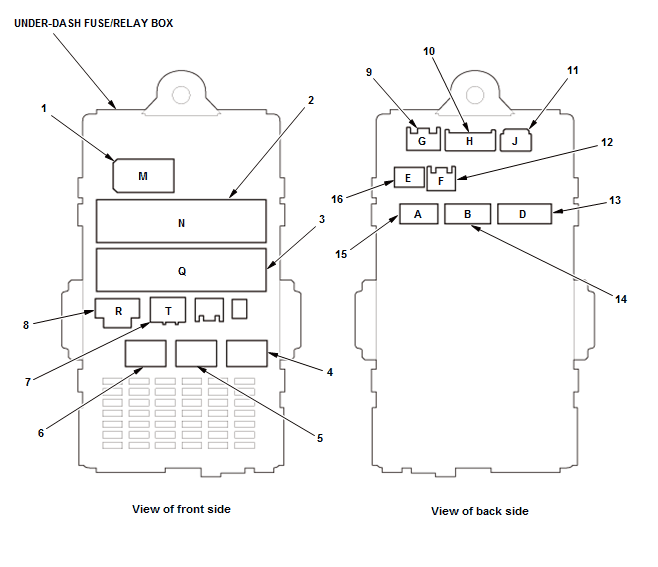

Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box Legend
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A | 15 | 16 | Dashboard wire harness (MICU) | |
| B | 14 | 20 | Dashboard wire harness (MICU) | |
| D | 13 | 24 | Dashboard wire harness (MICU) | |
| E | 16 | 12 | Dashboard wire harness | |
| F | 12 | 8 | Dashboard wire harness | |
| G | 9 | 10 | Dashboard wire harness | |
| H | 10 | 20 | Dashboard wire harness | |
| Horn relay | 5 | 4 | ||
| J | 11 | 4 | Dashboard wire harness | |
| M | 1 | 5 | Dashboard wire harness | |
| N | 2 | 52 | Floor wire harness | |
| PGM-FI main relay 2 | 4 | 4 | ||
| Power window relay | 6 | 4 | ||
| Q | 3 | 40 | Left engine compartment wire harness | |
| R | 8 | 2 | Dashboard wire harness | |
| T | 7 | 18 | Right engine compartment wire harness |
