Key Interlock Solenoid Test (Without Keyless Access System): Test

SRS components are located in this area. Review the SRS component locations and the SRS precautions and procedures before doing repairs or service.

Key Interlock Solenoid - Test

Courtesy of HONDA, U.S.A., INC.

1. Turn the ignition switch to LOCK (0).

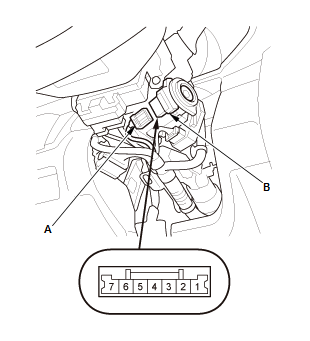

2. Disconnect the connector (A).

3. Turn the ignition switch to ACCESSORY (I).

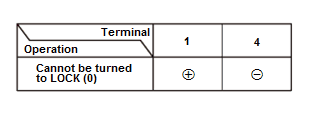

4. Check the solenoid operation by connecting power and ground according to the table.

NOTE: To prevent damage to the actuator, apply battery voltage only momentarily.

5. If the key interlock solenoid does not work properly, the key interlock solenoid is faulty; replace the steering lock (B).

Courtesy of HONDA, U.S.A., INC.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
