Engine Start/Stop Switch Test: Test

  1. Heater Control Panel - Remove (Without Climate Control)
  2. Climate Control Unit - Remove (With Climate Control)
  3. Engine Start/Stop Switch - Test

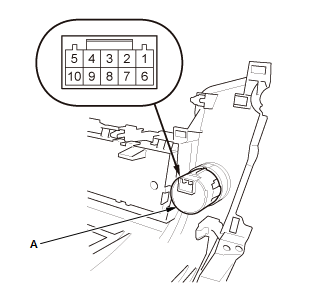

    GHH83270GHH83271Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH83270GHH83271Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

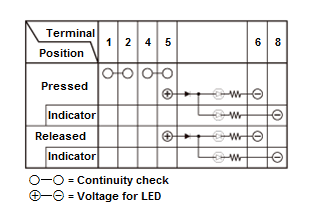

    		 1. Check the engine start/stop switch (A) according to the table.

    NOTE:

    • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
    • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

    2. If the result is not as specified, replace the engine start/stop switch .
  4. All Removed Parts - Install
      1. Install the parts in the reverse order of removal.
