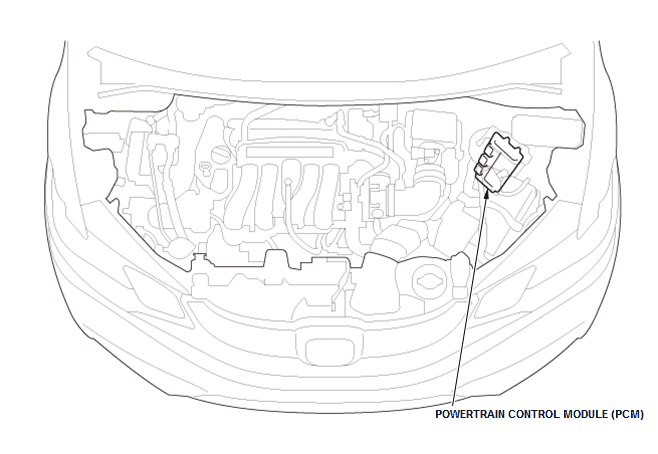

Fuel Supply System Component Location Index

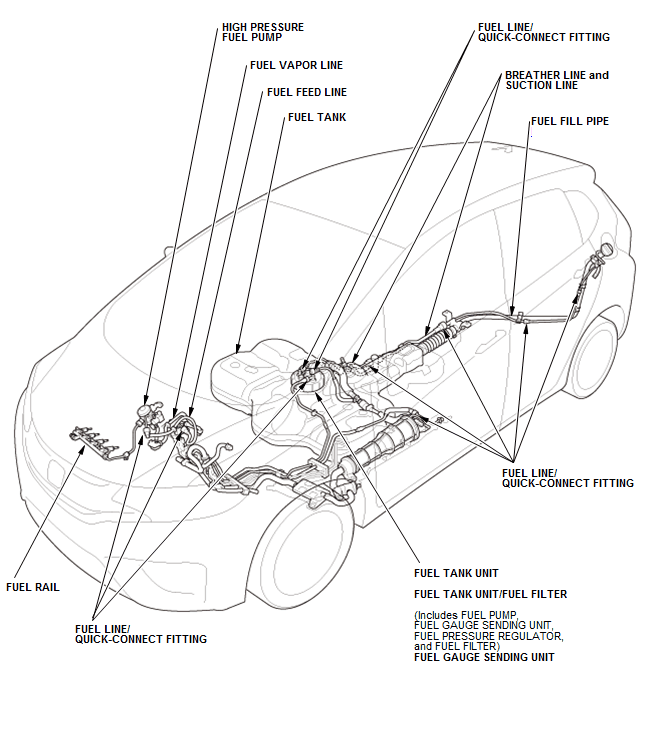

USA and Canada models
Courtesy of HONDA, U.S.A., INC.

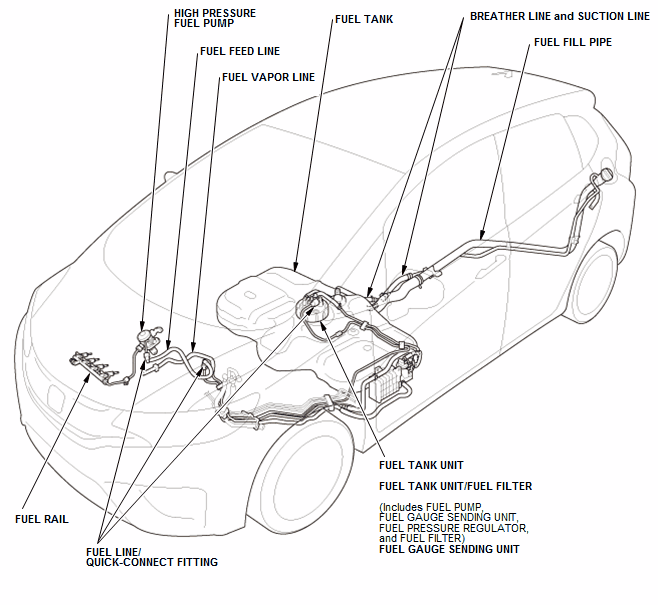

Mexico models
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
