Climate Control System Description - Customize Function
How to Set the Setting Temperature Shift
The climate control unit has a function to revise setting temperature +2.7 °F (+1.5 °C) or -2.7 °F (-1.5 °C) degrees.
- Revision +2.7 °F (+1.5 °C)
-
- Turn the vehicle to the ON mode.
- Touch and hold the RECIRCULATION icon, then within 10 seconds touch and release the fan control icon (↑) five times. Release the RECIRCULATION icon.
- Revision -2.7 °F (-1.5 °C)
-
- Turn the vehicle to the ON mode.
- Touch and hold the RECIRCULATION icon, then within 10 seconds touch and release the fan control icon (↓) five times. Release the RECIRCULATION icon.
- Return to the no revision (Revision 0 °F (0 °C))
-
- Turn the vehicle to the ON mode.
- Touch and hold the RECIRCULATION icon, then within 10 seconds touch and release the ON/OFF icon five times. Release the RECIRCULATION icon.

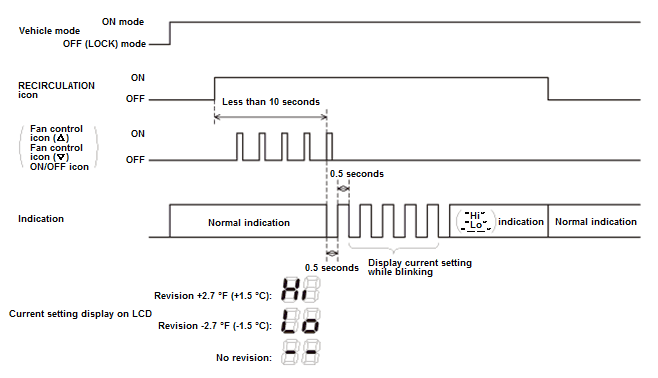

- Indication of the revision
The climate control unit displays the revision until the RECIRCULATION icon is turned off as shown in the figure.
