A/C System Test: Notes
Special Tools Required
Description/Tool Number
Courtesy of HONDA, U.S.A., INC.

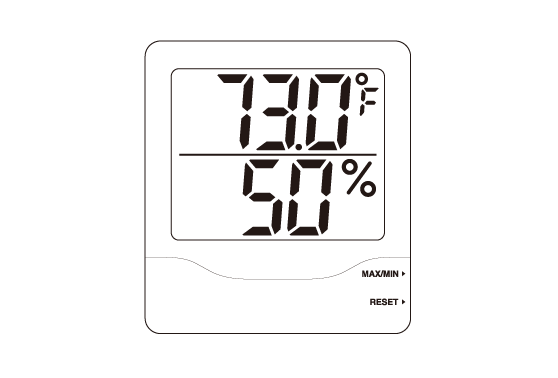

Big Digit Hygro-Thermometer PYR445703, commercially available
Courtesy of HONDA, U.S.A., INC.

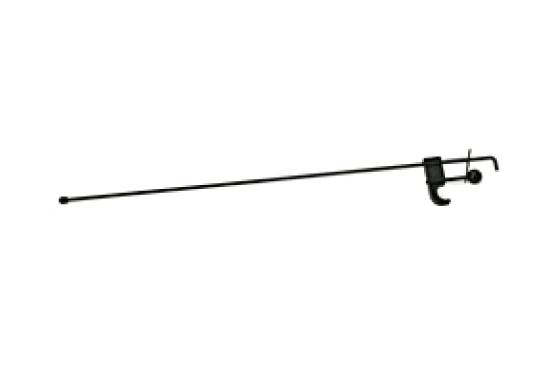

Throttle Pedal Depressor Tool B240B, commercially available
Courtesy of HONDA, U.S.A., INC.
