Mode Control Switch Test: Test

  1. Heater Control Panel - Remove
  2. Mode Control Switch - Test
    GHH82112GHH82113Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH82112GHH82113Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

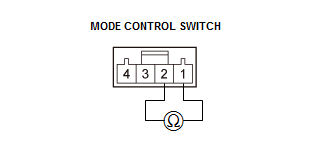

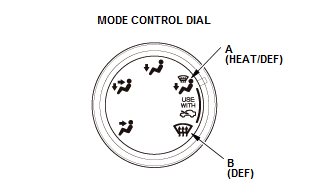

    		 1. Check for continuity between terminals No. 1 and No. 2 of the mode control switch, while rotating the mode control dial from (A) and (B).
    2. If there is no continuity, replace the heater control base .
  3. All Removed Parts - Install
      1. Install the parts in the reverse order of removal.
