Engine Removal and Installation: Removal

NOTE:

• Use fender covers to avoid damaging painted surfaces.
• To avoid damaging the wiring and terminals, unplug the wiring connectors carefully while holding the connector portion.
• Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact other wiring or hoses, or interfere with other parts.

1. Vehicle - Lift

   1. Raise and support the vehicle .

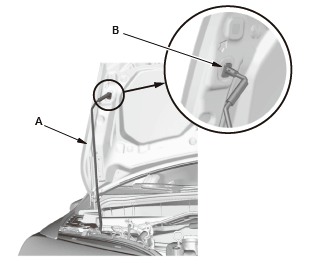

2. Hood - Wide Open

   Courtesy of HONDA, U.S.A., INC.

   1. Open the hood, and secure it with the hood support rod (A) in the wide-open position (B).

3. Fuel Pressure - Relieve
4. Under-Cowl Panel - Remove
5. Wiper Motor - Remove
6. 12 Volt Battery Terminal - Disconnect

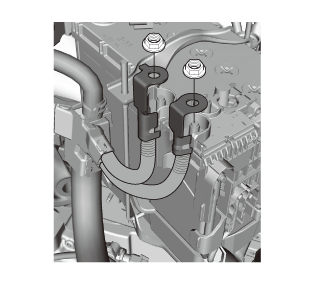

7. Positive Cable (12 Volt Battery Terminal Fuse Box) - Disconnect

   Courtesy of HONDA, U.S.A., INC.

8. 12 Volt Battery - Remove
9. Front Grille Cover - Remove

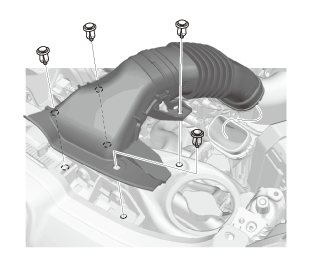

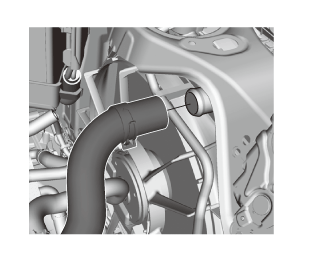

10. Air Intake Duct - Remove

    Courtesy of HONDA, U.S.A., INC.

11. Air Cleaner - Remove

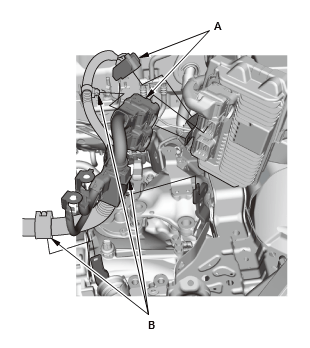

12. Connector (Engine Wire Harness) - Disconnect

    Courtesy of HONDA, U.S.A., INC.

    1. Disconnect the connectors (A) 2. Remove the harness clamps (B).

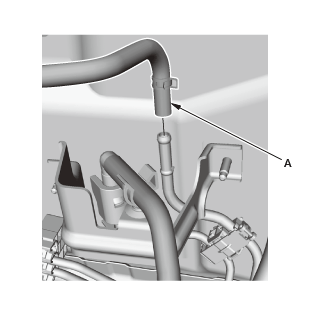

13. EVAP Canister Purge Hose - Disconnect

    Courtesy of HONDA, U.S.A., INC.

    1. Disconnect the EVAP canister purge hose (A).

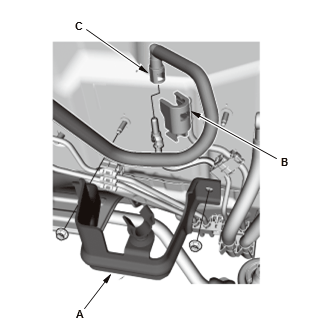

14. Fuel Feed Hose - Disconnect

    Courtesy of HONDA, U.S.A., INC.

    1. Remove the bracket (A). 2. Remove the quick-connect fitting cover (B). 3. Disconnect the fuel feed hose (C) .

15. Steering Joint - Disconnect

    NOTE:  Hold the steering wheel in the steering wheel holder tool.

16. Radiator Cap - Remove
17. Vehicle - Lift
18. Front Wheels - Remove
19. Engine Undercover - Remove
20. Engine Coolant - Drain
21. Engine Oil - Drain
22. Transmission Fluid - Drain

    1. Drain the transmission fluid: MT CVT

23. Under-Floor TWC - Remove
24. Lower Arm Ball Joint - Disconnect
25. Front Stabilizer Link Ball Joint - Disconnect
26. Tie-Rod End Ball Joint - Disconnect
27. Front Driveshaft - Remove
28. Vehicle - Lift

    1. Lower the vehicle.

29. Change Wire Bracket - Remove (M/T)
30. Slave Cylinder - Remove (M/T)

    NOTE:  Without disconnecting the clutch line.

31. Shift Cable (Transmission Side) - Disconnect (CVT)
32. Radiator Upper Hose - Disconnect

    Courtesy of HONDA, U.S.A., INC.

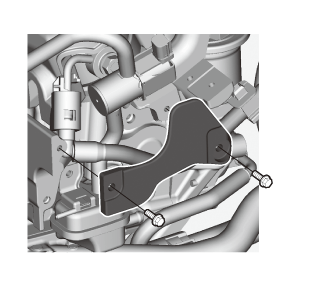

33. Fuel Joint Pipe Bracket - Remove

    Courtesy of HONDA, U.S.A., INC.

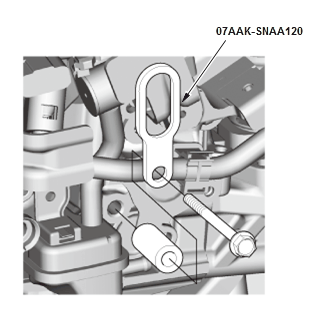

34. First Universal Lifting Eyelet - Install

    Courtesy of HONDA, U.S.A., INC.

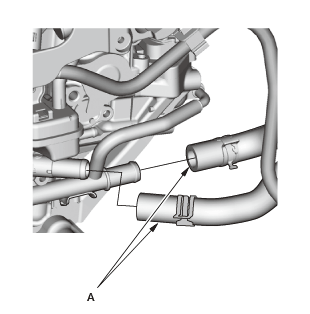

35. Heater Hose - Disconnect

    Courtesy of HONDA, U.S.A., INC.

    1. Disconnect the heater hoses (A).

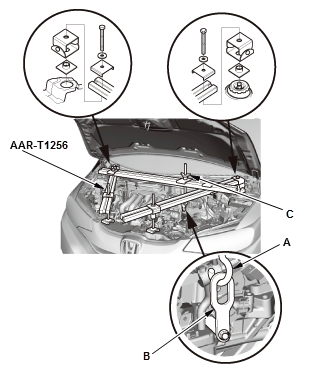

36. Engine Support Hanger - Install

    Courtesy of HONDA, U.S.A., INC.

    1. Install the engine support hanger onto the vehicle as shown, and attach the hook (A) to the slotted hole in the first universal lifting eyelet (B). Tighten the wing nut (C) by hand, and lift and support the engine/transmission. NOTE:  Be careful when working around the windshield. Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.

37. Vehicle - Lift

    1. Raise the vehicle.

38. Front Inner Fender - Remove

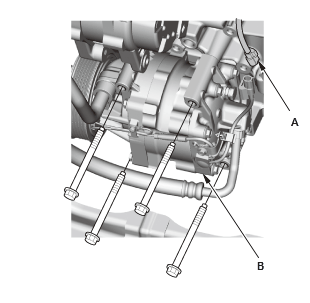

39. A/C Compressor - Remove

    Courtesy of HONDA, U.S.A., INC.

    1. Disconnect the connector (A) 2. Remove the A/C compressor (B) without disconnecting the A/C hoses. Do not bend the A/C hoses excessively. NOTE:  Hang the A/C compressor with a wire tie.

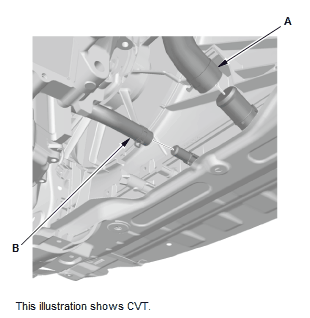

40. Lower Radiator Hose - Disconnect

    Courtesy of HONDA, U.S.A., INC.

    1. Disconnect the lower radiator hose (A) 2. CVT: Disconnect the water hose (B).

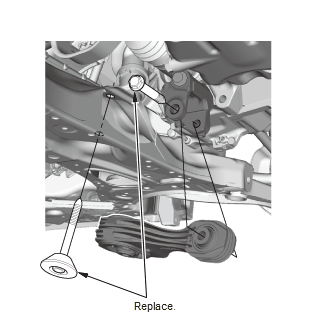

41. Torque Rod - Remove

    MT

    Courtesy of HONDA, U.S.A., INC.

    CVT

    Courtesy of HONDA, U.S.A., INC.

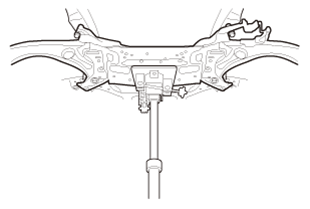

42. Front Subframe - Support

    Courtesy of HONDA, U.S.A., INC.

    1. Support the front subframe with a transmission jack.

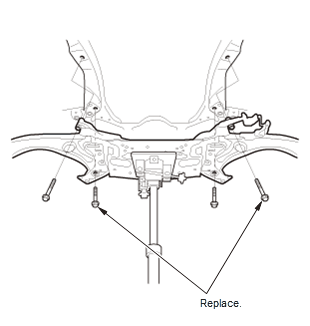

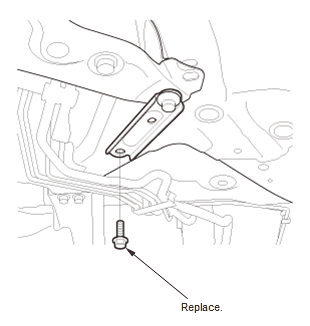

43. Front Subframe - Remove

    Courtesy of HONDA, U.S.A., INC.

    1. Remove the front subframe bracket bolts on both sides.

    Courtesy of HONDA, U.S.A., INC.

    2. Remove the front subframe.

44. Vehicle - Lift

    1. Lower the vehicle.

45. Side Engine Mount - Remove

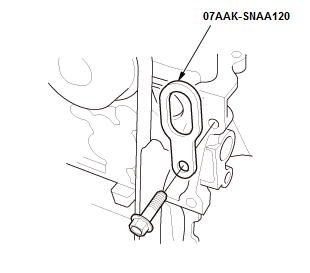

46. Second Universal Lifting Eyelet - Install

    Courtesy of HONDA, U.S.A., INC.

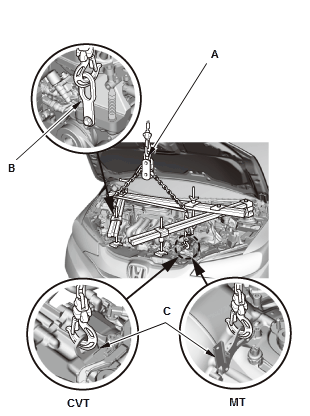

47. Chain Hoist - Install

    Courtesy of HONDA, U.S.A., INC.

    1. Attach a chain hoist (A) to the second universal lifting eyelet (B) and the transmission hanger (C), then lift the engine/transmission until it is securely supported by the chain hoist.

48. Engine Support Hanger and First Universal Lifting Eyelet - Remove

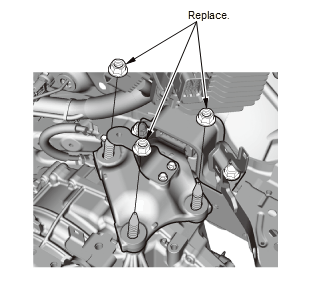

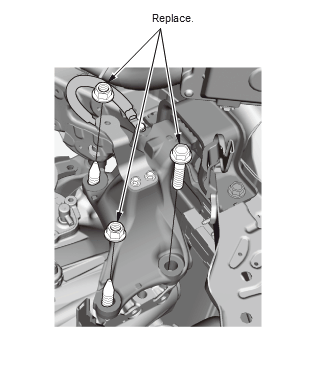

49. Transmission Mount Bracket Mounting Bolt and Nut - Remove

    MT

    Courtesy of HONDA, U.S.A., INC.

    CVT

    Courtesy of HONDA, U.S.A., INC.

50. Engine - Remove

    1. Check that the engine/transmission is completely free of the vacuum hoses, the fuel hoses, the coolant hoses, and the electrical wiring 2. Slowly lower the engine/transmission about 150 mm (5.91 in). Check once again that all the hoses and the electrical wiring are disconnected and free from the engine/transmission, then lower it all the way and support it 3. Remove the chain hoist from the engine/transmission 4. Raise the vehicle, and remove the engine/transmission from under the vehicle.
